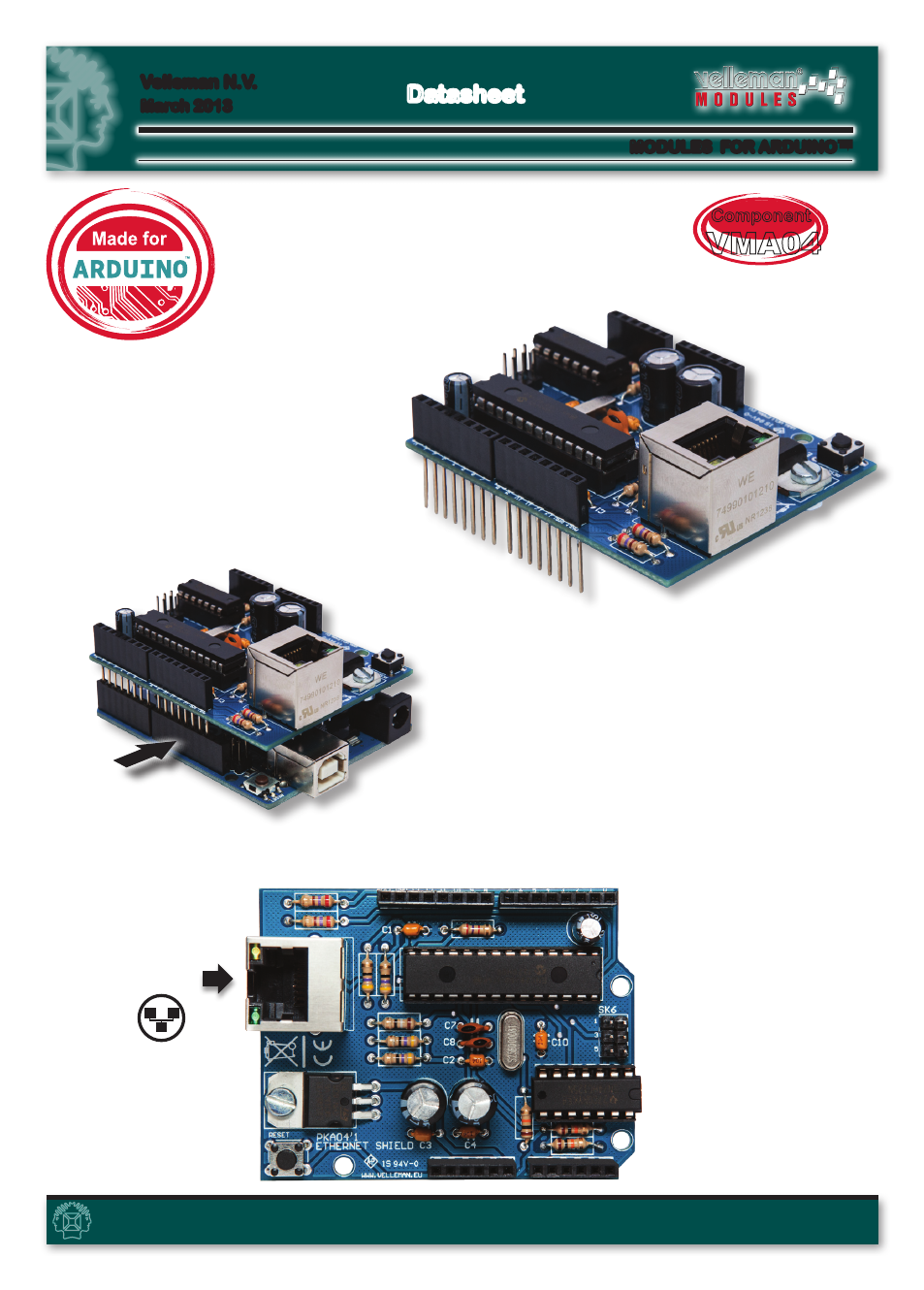

Velleman projects VMA04 Datasheet - Manual

Arduino™UN
O board
(not
included)
Features
- based on a Microchip ENC28J60 chip
- downloadable sample sketches and library
- stackable design: the shield can be stacked with other shields
- large user community
- requires 1 Arduino™ UNO (not included)
Configure your Arduino as a simple web server or let it get data from the worldwide web
Specifications
- data rates up to 10 Mbps
- integrated MAC controller
- 8 kB Transmit / Receive Packet Dual Port Buffer
- the MAC controller supports both Unicast, Multicast and Broadcast packets, has a
programmable (up to 64-byte) pattern matching feature within a packet at user
defined offset and programmable wake-up on multiple packet formats (Magic
Packet, Unicast, Multicast, Broadcast, specific packet match or any packet)
- uses pin 10 and 2 on an Arduino™ UNO board. It also uses the ICSP connector
as a serial connection to the shield to free up I/O pins
- dimensions: 68 x 53mm / 2.67 x 2.08"
ETHERNET
page 1 of 1 Velleman ® NV, Legen Heirweg 33 - Gavere (Belgium)
Velleman.eu - Vellemanprojects.com - Velbus.eu
Ethernet shield for Arduino™
Datasheet
March 2013
Velleman N.V.
Component
VMA04
MODULES FOR ARDUINO™
