Terminator – Velleman projects VMBDMI Extended user manual User Manual
Page 11
VMBDMI Dimmer manual – edition 1
11
Terminator

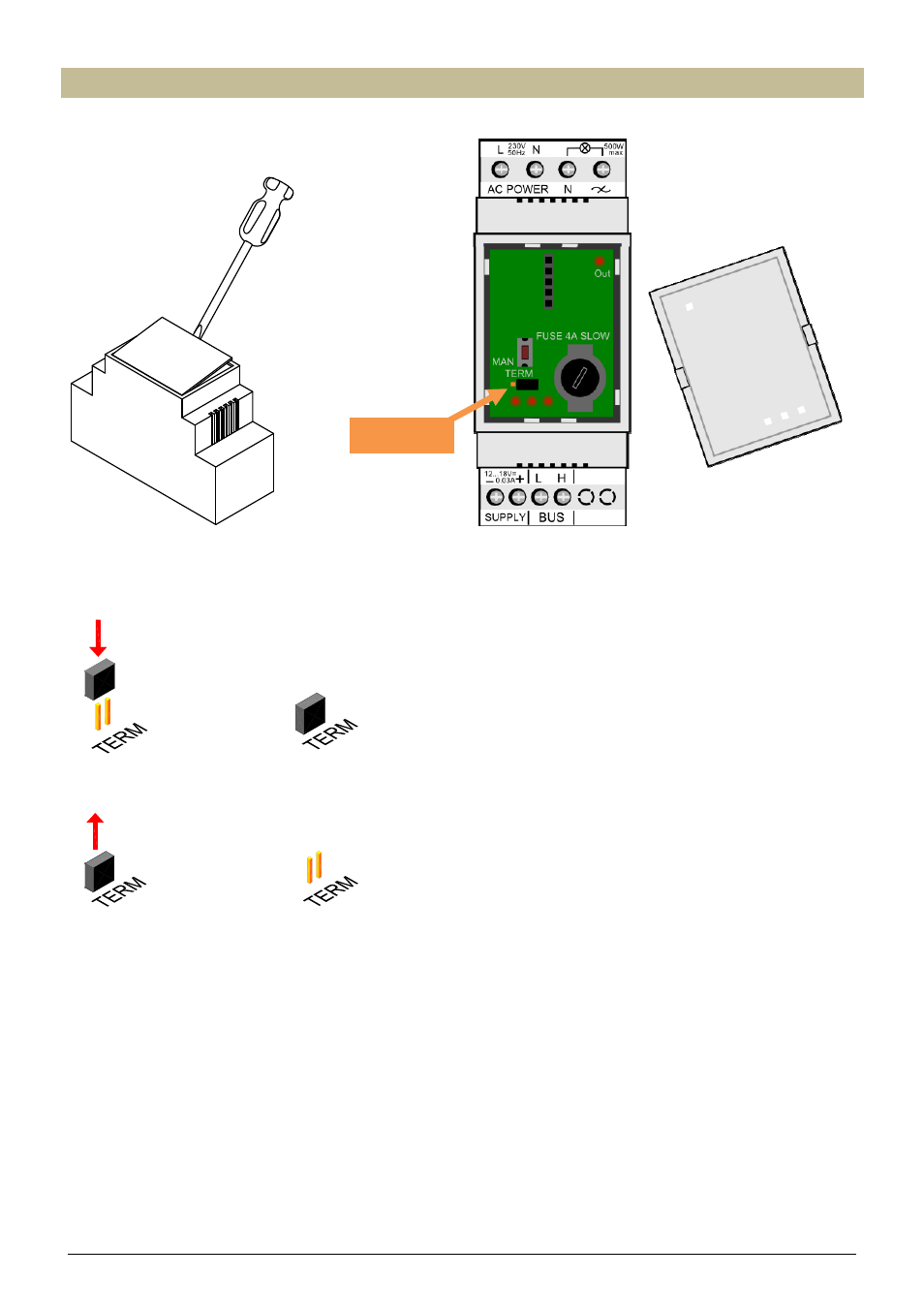

Remove top cover.
In normal circumstances only 2 ‘TERM’ terminators must be foreseen in a complete Velbus installation. Usually
this will be on one module inside the distribution box and on the module the furthest from the distribution box.
In all other cases it must be removed.
Remark:
In a wiring scheme with a lot of branches a terminator is placed on a module inside the distribution box and on the
control panel furthest from the distribution box. Should communication problems occur, an additional terminator
can be placed on another branch. However, the number of terminators should be kept to a minimum as additional
terminators place a heavy load on the bus.
Terminat
