VMBDMI Dimmer manual – edition 1

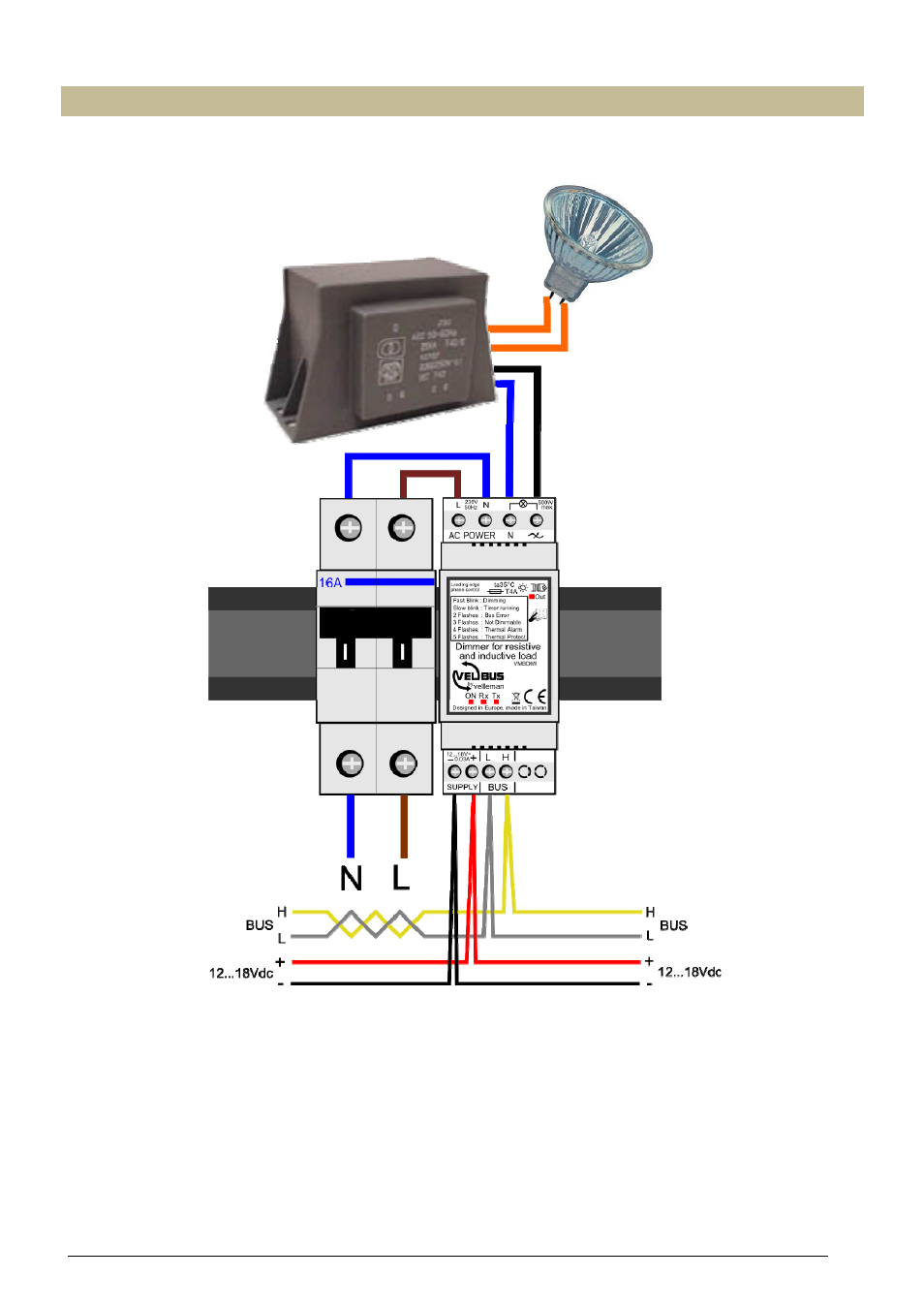

Connection scheme with low voltage lamps
Use a dimmable iron core transformer or an electronic transformer that can be dimmed using leading edge phase
control.
Attention:
At higher output power the dimmer housing becomes hot. It is strongly recommended to keep sufficient free space
around the dimmer to allow adequate ventilation.
