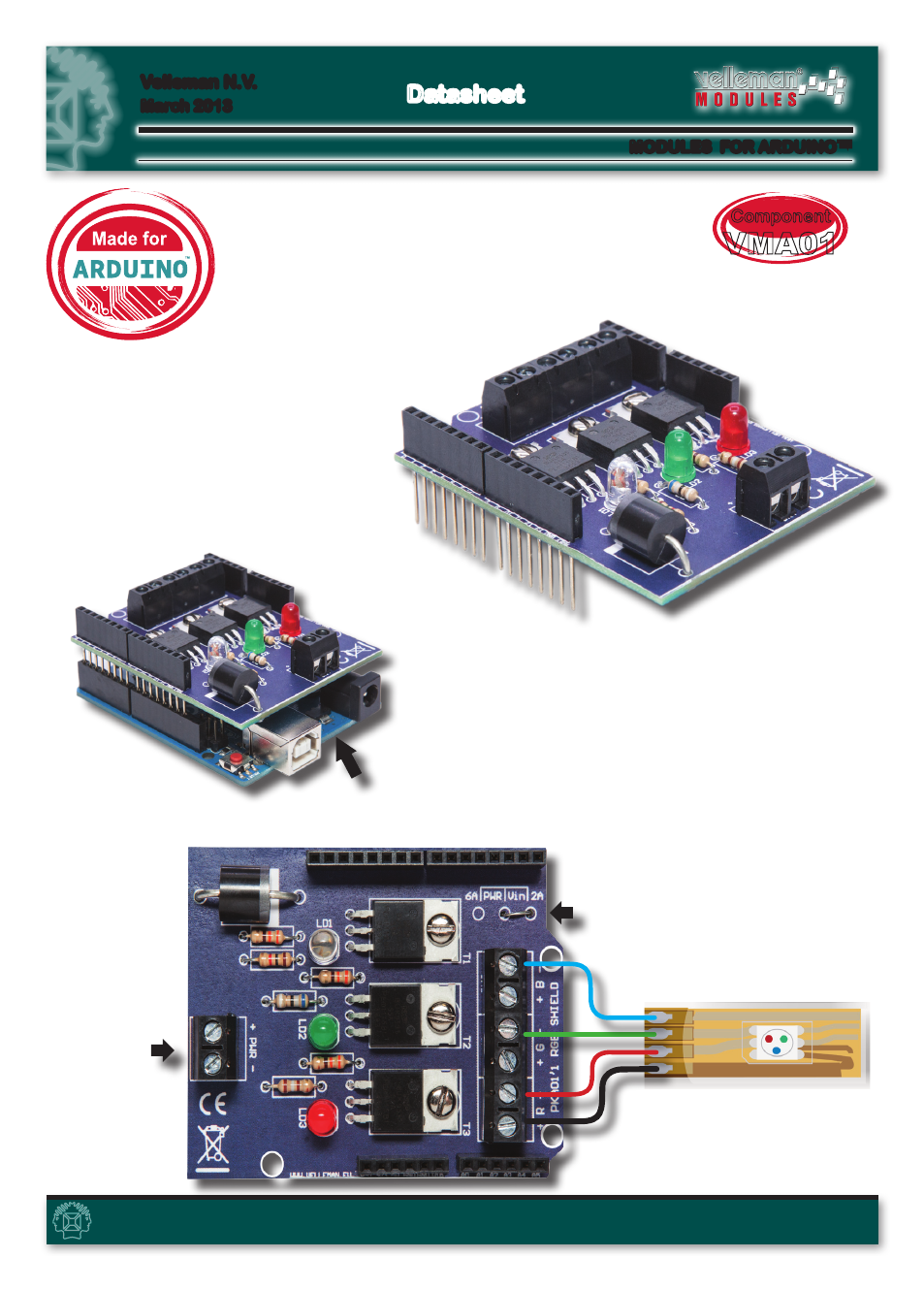

Velleman projects VMA01 Datasheet - Manual

Control 3 dimmer channels (1 x RGB or 3 single channels) with Arduino™ UNO
Features
- downloadable example sketch
- stackable design: the shield can be stacked with other shields
- large user community
- requires 1 Arduino™ UNO (not included)
Specifications
- 2 A load via Vin or 6 A load via external power
- 12 or 24 V external power supply
- uses pin 3, 5, 6 PWM on an Arduino™ UNO board
- dimensions: 68 x 53mm / 2.67 x 2.08"
Choose internal or external power
External Power
(12 - 24V)
RGB LEDs
Arduino™UNO board
(not included)
page 1 of 1 Velleman ® NV, Legen Heirweg 33 - Gavere (Belgium)
Velleman.eu - Vellemanprojects.com - Velbus.eu
RGB-shield for Arduino™
Datasheet
March 2013
Velleman N.V.
VMA01
Component
MODULES FOR ARDUINO™
