Minimum system requirements:
- Windows® XP, Vista, 7, 8 *
- SVGA display card (min. 1024 x 768)
- mouse
- free USB port 1.1 or 2.0
SPECTRUM ANALYSER:
- frequency range: 0 .. 150 Hz to 75 kHz
- operating principle: FFT (Fast Fourier
Transform)
- FFT resolution: 512 lines
TRANSIENT RECORDER:
- timescale: 20 ms/div to 2000 s/div
- max. recording time: 9.4 h/screen
- automatic storage of data
- record and display of screens
- automatic recording for more than 1 year
- max. number of samples: 100/s
- min. number of samples: 1 sample/20 s
Oscilloscopes are expensive and complicated instruments?

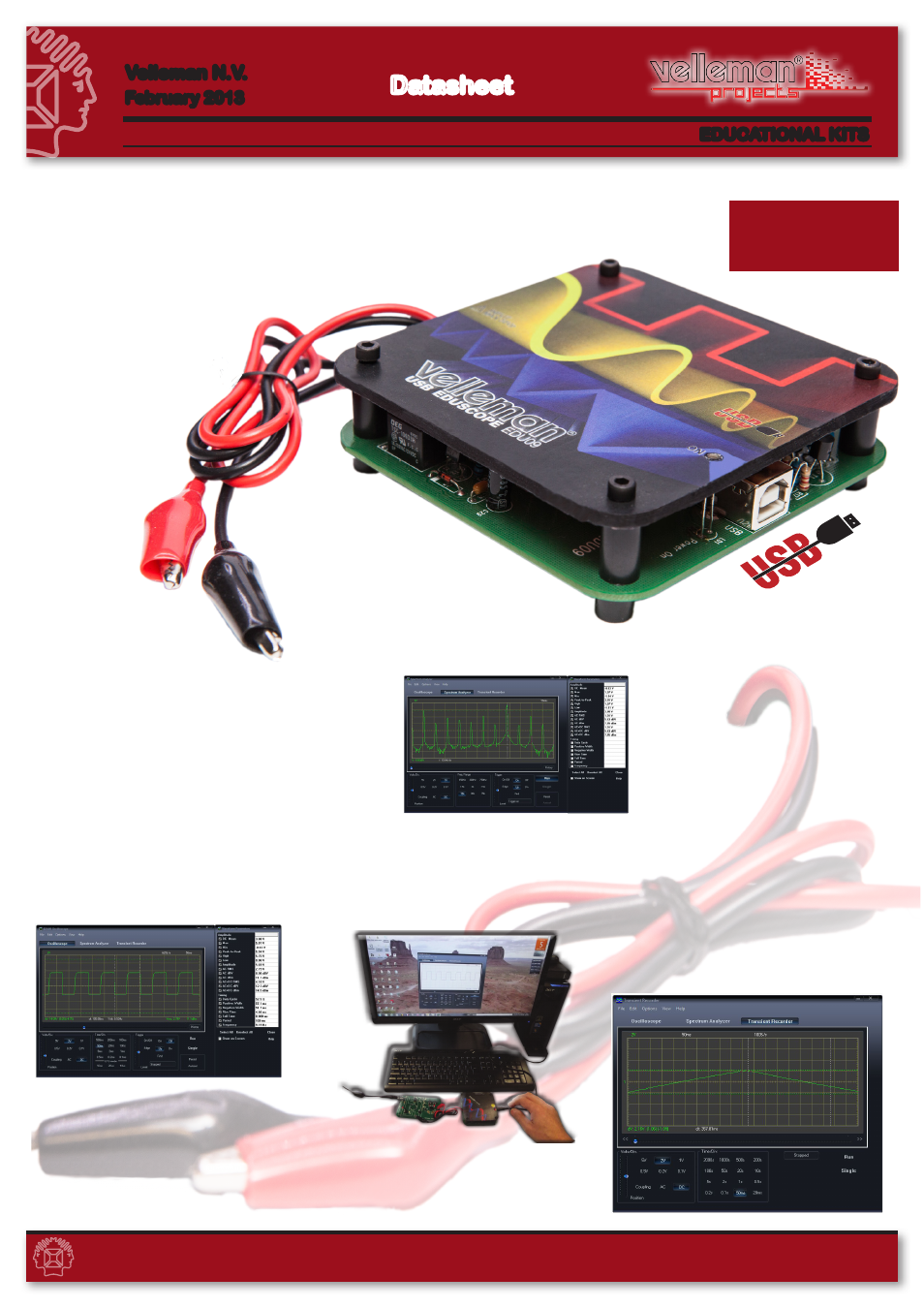

Not this one! Build your own oscilloscope and use your PC to display your measurements.
This small and easy to build kit has all the features of a full blown oscilloscope, just
like our PCSU200 or PCSU1000. Don’t have the kit yet?
Check out the scope demo soft
OSCILLOSCOPE:
- bandwidth: DC to 200 kHz ± 3dB
- input impedance: 100 kohm / 20pF
- maximum input voltage: 30 V (AC + DC)
- time base: 10 µs to 500 ms per division
- input range: 100 mV to 5 V/division
- input sensitivity: 3 mV display resolution
- readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency…
- record length: 1k samples
- sampling frequency: 62.5 Hz to 1.5 MHz
- sample history function
- auto set-up function
- pre-trigger function : on 0.1 ms/div .. 500 ms/div ranges
- persistence options: Colour graded, Variable and Infinite
Scope
Transient Recorder
Spectrum Analyser
GENERAL INFORMATION:
Markers for: amplitude/voltage and
frequency/time
Expert or basic mode selection in software
Input coupling: DC and AC
8 bit resolution
Storage of display and data
Power supply through USB: +/- 200mA
Dimensions: 94x94mm / 3.7x3.7”
Datasheet
Educational Scope Kit
