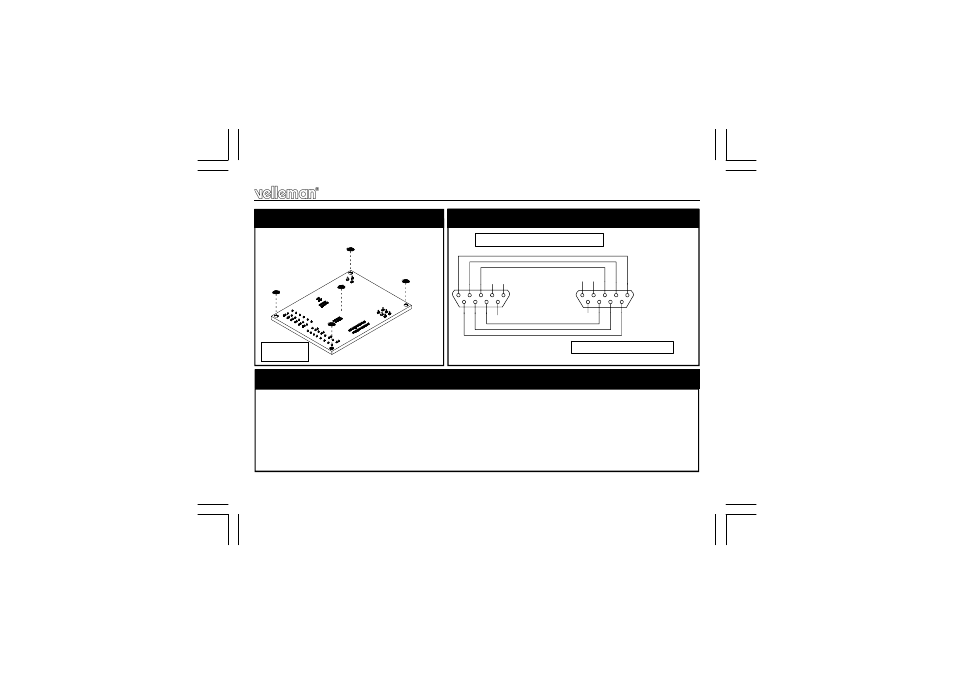

Mount the rubber feet on the solder side of
the PCB, see fig 1.0.
17. Rubber feet
Construction
• Place the Velleman® software CD in your CD-ROM player.
• Select ‘Browse through this CD for other Velleman software’ (this message will not be displayed on your screen
if ‘AUTORUN’ is not activated.
• Select the right folder on the CD with Windows Explorer).
• Select the ‘Velleman Kits’ folder. Select the ‘K8048’ folder.
• Run the ‘INSTALL_K8048.EXE’ program in the ‘\Velleman kits\K8048\’ folder.
• Follow the indications on the screen until all files are installed.
19. Software installation
*PIN 9 is not connected in K8076 !
Serial CABLE for K8048, K8076 and VM111
1
6
2
7
3
8
4
9
5
SK1
SUBD 9-POLE MALE
1
6
2
7
3
8
4
9
5
SK2
SUBD 9-POLE FEMALE
FIG 1.0
18. Serial cable
