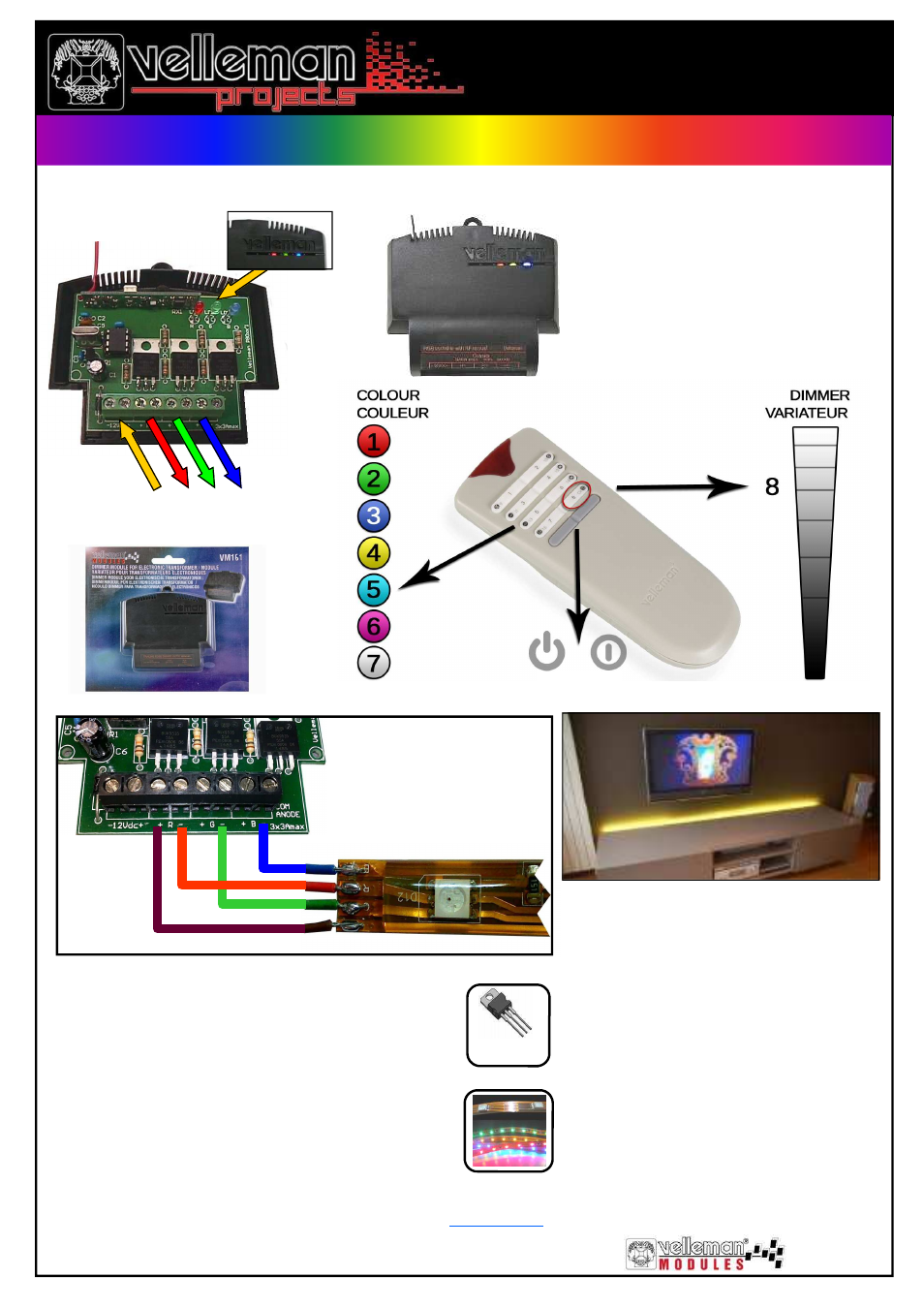

Velleman projects VM161 Datasheet User Manual
Rgb led strip colour controller, Vm161, New pro duc t inf o
New
Pro
duc
t inf
o
April 2009
Technical:
•
Seven colour selection
•
Ten dimming steps
•
LED PWM freq: +/- 300Hz
•
3x 12V/3A outputs
•
TX/RX: 433MHz operation
•
Fcc approved: NLO8058
•
Power supply: 12V / 9A max.
•
Dimensions: approx 80x70x23mm
3 x 3A
Hi power MOSFET
outputs
Ideal for use with common anode led
strips
e.g.
- CHLS4RGB
- LDB1-HS3027AC
12VDC
IN
RGB OUT
3 x 3A
ANTENNA
CHLS4RGB
RGB LED STRIP
Connection example
•
Direct access to 7 colour settings
•
Dimming function
•
Transmitter is Fcc approved for US
RGB LED STRIP COLOUR CONTROLLER
VM161
COLOUR
PREVIEW
This RGB LED controller, works with our VM118R RF transmitter
.
OFF / ON
VM118R remote
See also the LED controller selection guide
on the web
