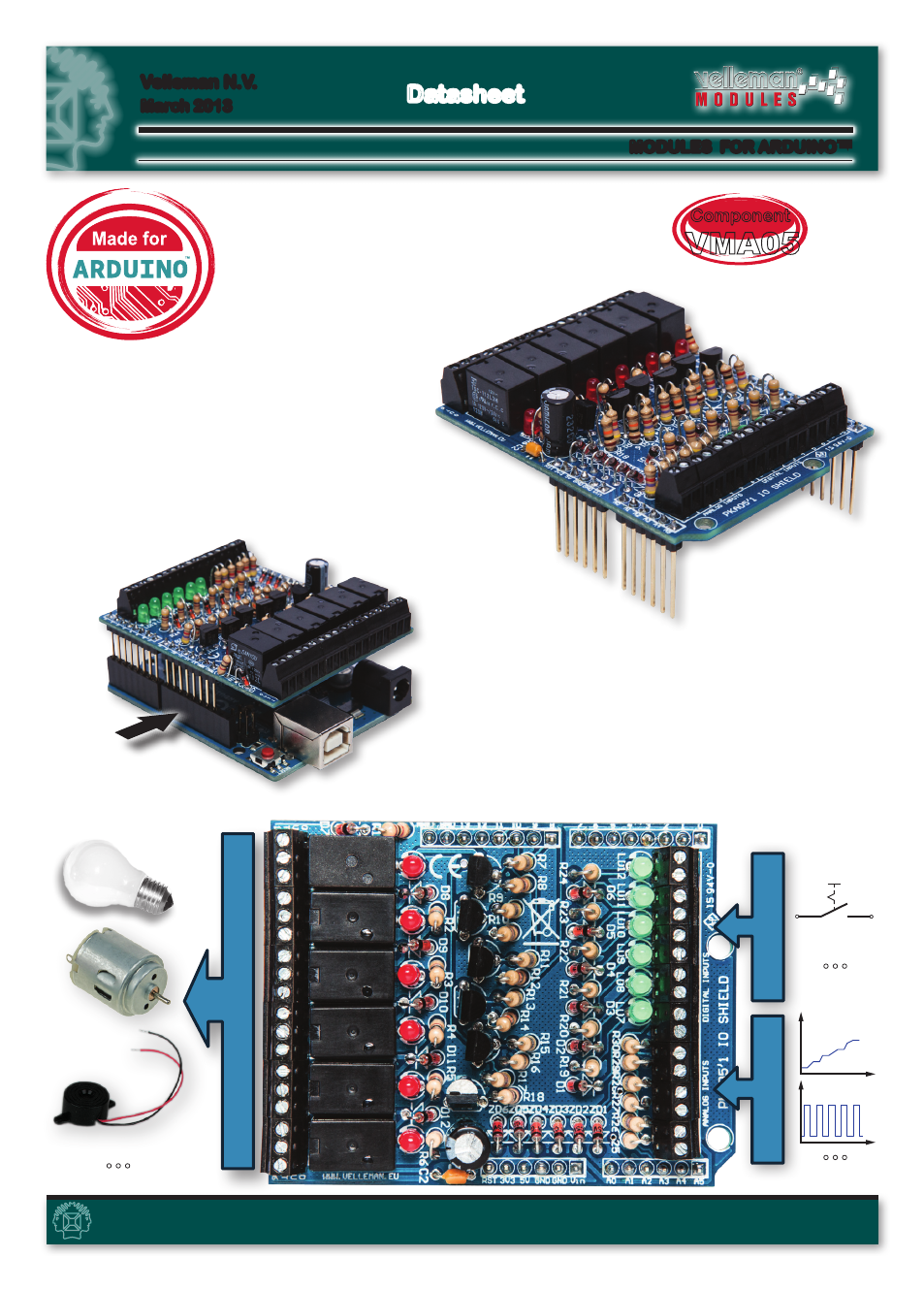

Velleman projects VMA05 Datasheet - Manual

Specifications
- 1 A (max.) load per output
- 120 V max. per output
- uses pin 8 to 13 as outputs, pin A0 to A5 as analog inputs, and pin 2 to 7
as digital inputs
- dimensions: 68 x 53mm
Arduino™ UNO board
(not
included)
General purpose INPUT - OUTPUT shield for Arduino™
Features
- 6 relay outputs
- 6 analog inputs
- 6 digital inputs
- downloadable sample sketch
- stackable design: the shield can be stacked with other shields
- large user community
- requires 1 Arduino™ UNO (not included)
...
6 REL
A
Y OUTPUTS
(Max 1A / 120V)
6 DIGIT
AL INPUTS
6 AN
AL
OG INPUTS PWM
ANALOG
...
101011101011001...
...
page 1 of 1 Velleman ® NV, Legen Heirweg 33 - Gavere (Belgium)
Velleman.eu - Vellemanprojects.com - Velbus.eu
I/O shield for Arduino™
Datasheet
March 2013
Velleman N.V.
Component
VMA05
MODULES FOR ARDUINO™
