Velleman projects VMA02 Datasheet - Manual

MODULES FOR ARDUINO™
Record your voice via a built-in microphone or a line input
Features
- 60 second recording time
- start playback, record,… via on-board buttons or via Arduino™ UNO
- playback via a speaker or a line output
- downloadable sample sketch and library
- stackable design: the shield can be stacked with other shields
- Large user community
- requires 1 Arduino™ UNO (not included)
Specifications
- audio sample frequency: 8 kHz
- uses pin 10 on an Arduino™ UNO board as a Chip Select
- uses the ICSP pins on an Arduino™ as a serial connection to the
shield to free up I/O pins
- memory write up to 100.000 X
- dimensions: 71 x 53mm / 2.79 x 2.08"'

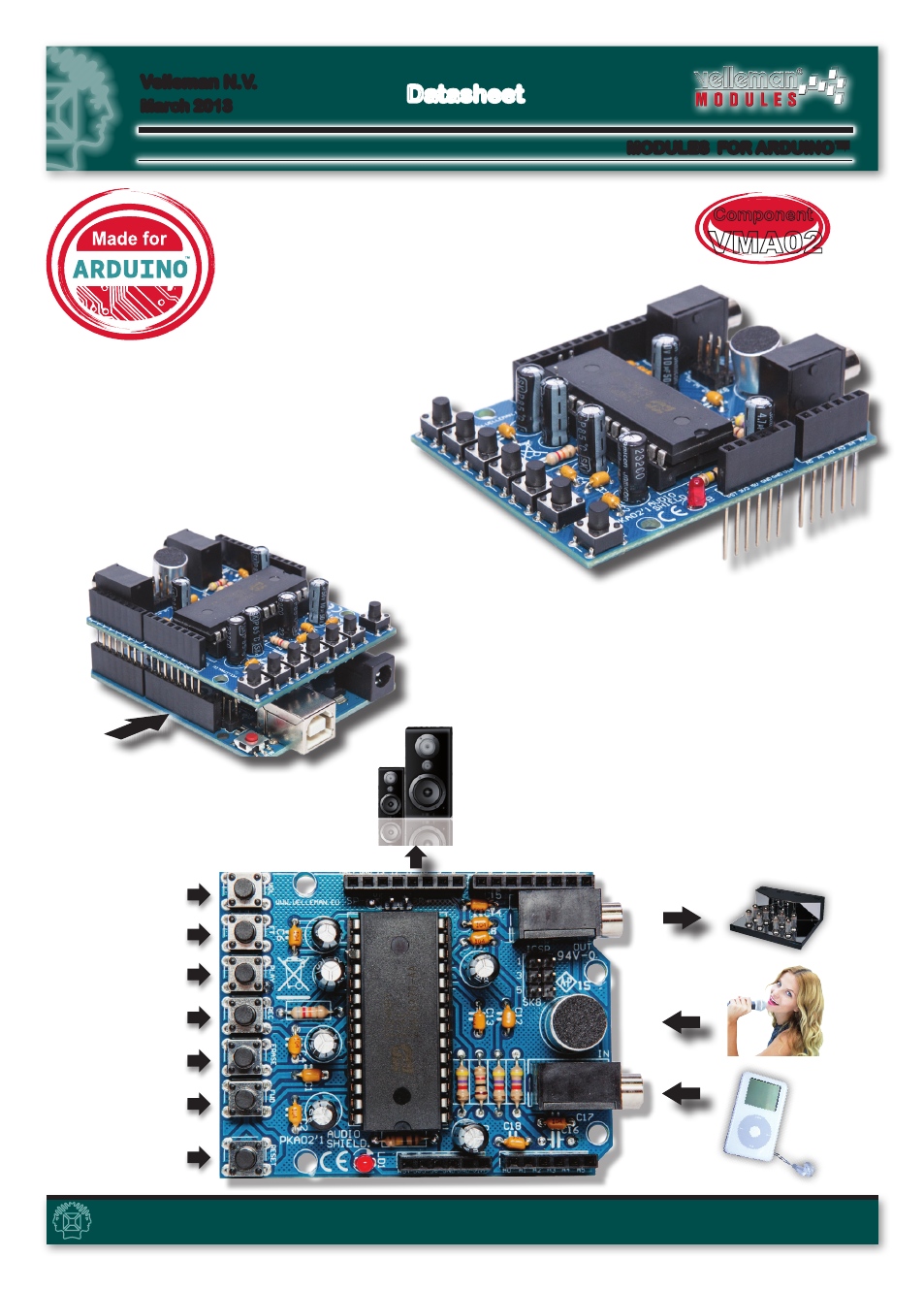

Speaker
Arduino™UN
O k
aart
(niet
meegel
everd)
Line-out
Microphone
Line-in
Volume
Feed trough
Play
Record
Erase
Forward
Reset
page 1 of 1 Velleman ® NV, Legen Heirweg 33 - Gavere (Belgium)
Velleman.eu - Vellemanprojects.com - Velbus.eu
Audio shield for Arduino™
Datasheet
March 2013
Velleman N.V.
Component
VMA02
