3 actual programming of the microcontroller – Velleman К8048 User Manual

Page 9

Programming Procedure

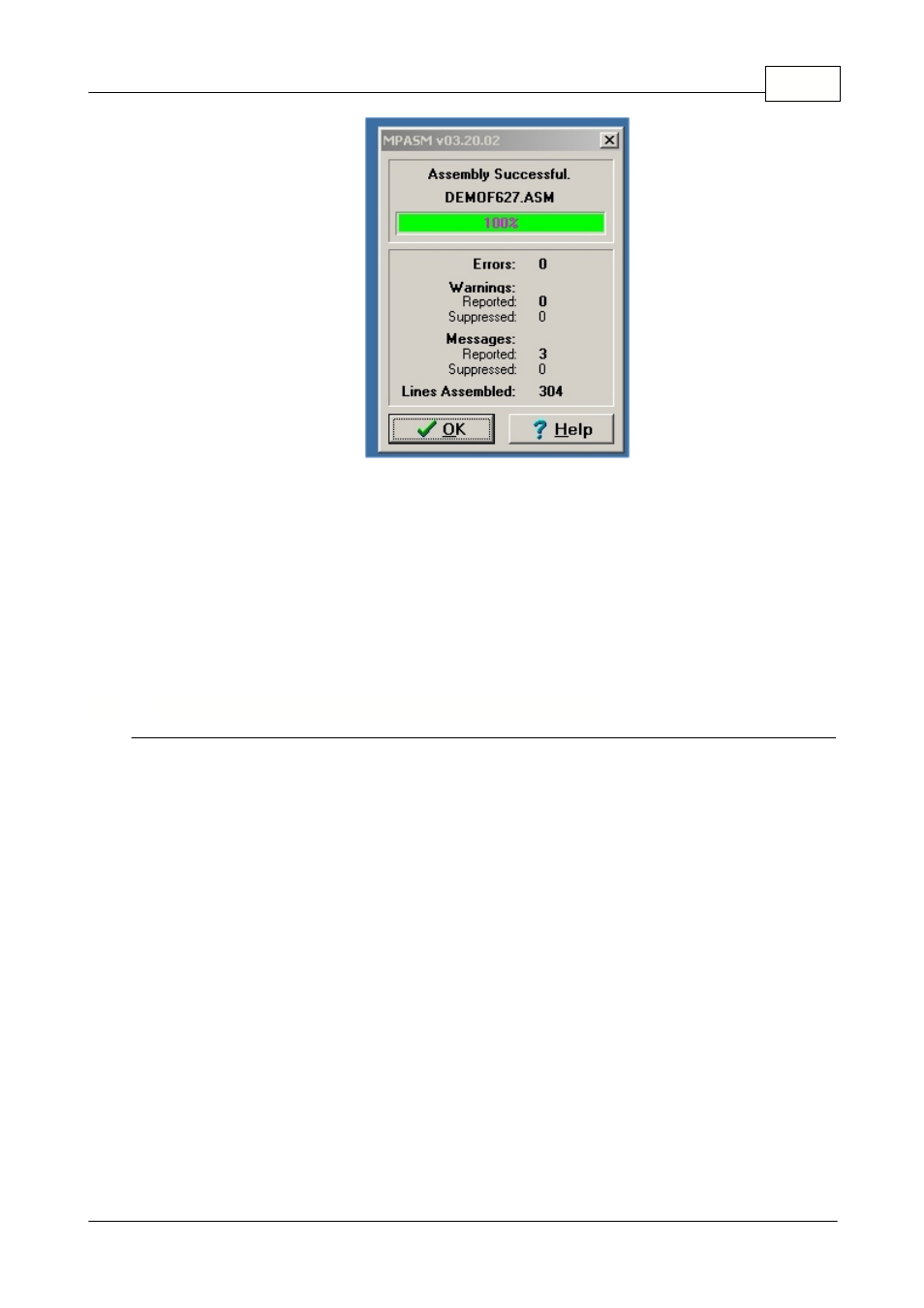

The assembler will now generate the following files:

xxx.ERR

=> Error file, contains all errors and/or all warnings MPASM assembler has located

in your source code

xxx.Hex

=> This is the actual machine code file to be used by the programming software for

the programming of the controller).

xxx.LST

=> Listing file, contains your source code and the additional remarks generated by

the assembler.

xxx.COD

=> Code file, is only used by the MPLAB programming environment and NOT by the

K8048 software.

6.3

Actual programming of the microcontroller

Connect your K8048 with your computer via a free serial port.

The IRQ line of this erial port (IRQ 3 or 4) must not be used by another device e.g. internal
modem.

Connect the suitable power adapter and verify whether LD7 lights up ("Power LED").

Start the 'PROGPIC2, PIC programmer' program (in the folder C:\Velleman\K8048\).

Click on 'FILE' -> 'OPEN' and select the compiled program (Hex 8M-file) you want to program.
