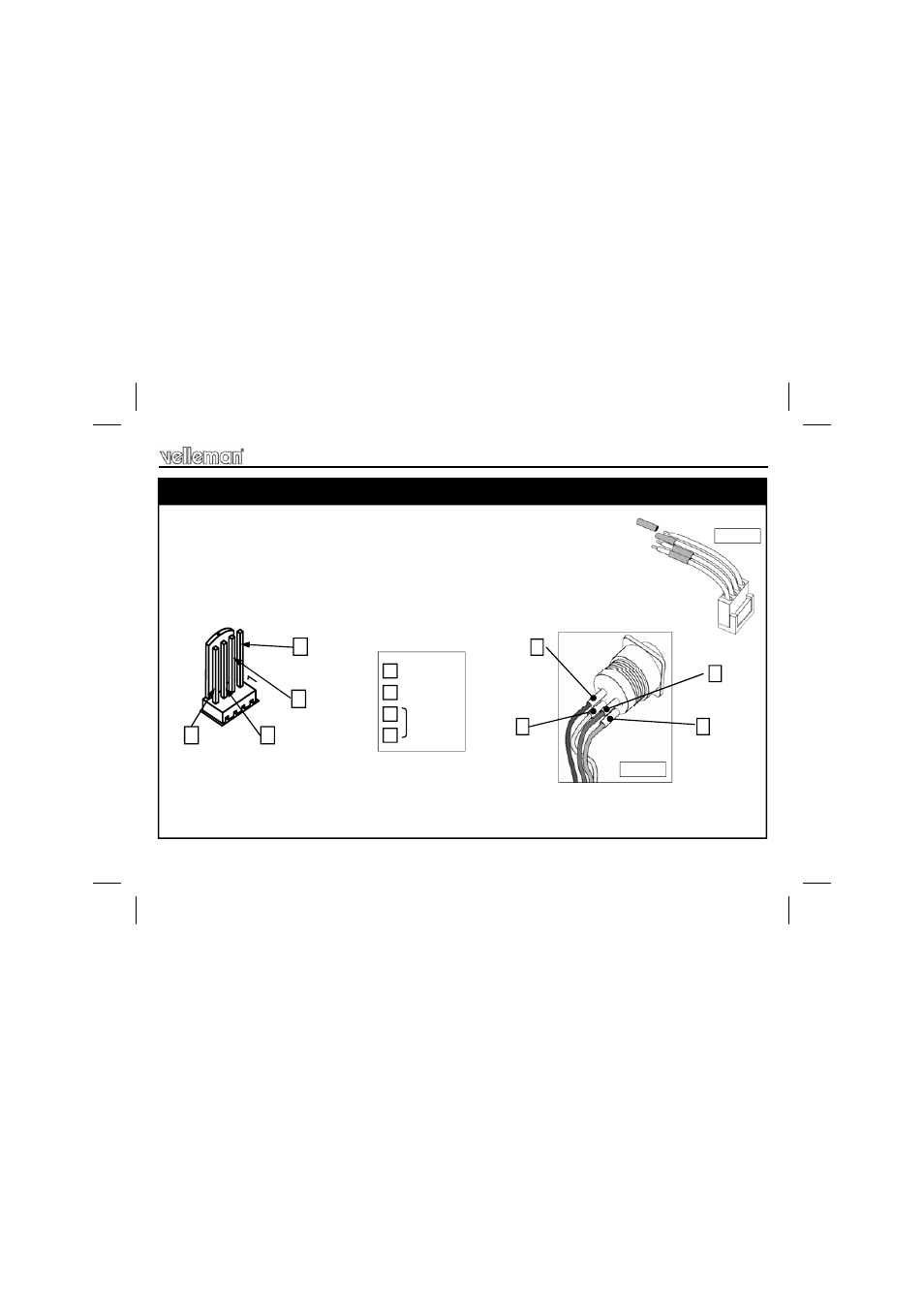

Cut off a piece of shrinkable tube with a lenght equal to 2,5cm.
Slide the shrinkable tube over the wires of the female 'board to wire'-connector (fig. 2.0)
Solder the 4-pole female 'board to wire' connector to the push button using the figure
below to check the accuracy of the connections (see figure 3.0)
Attention: Always make sure to slide down the shrinking tube far enough from the soldering points!
Slide the shrinkable tube over the soldered joints and heat them using a hair dryer or, better still, using a
paint stripper.
18. Wiring the push button
(Orange)
(Red)
1
(Yellow)
2
3 4
(Brown) Leen d
:
LED -
LED +
Push button
1
2
3
4
Wiring the push button
Fig. 2.0
4
(Yellow)
3
(Orange)
1
(Brown)
2
(Red)
Fig. 3.0
