Velleman К8075 User Manual
Page 8
8

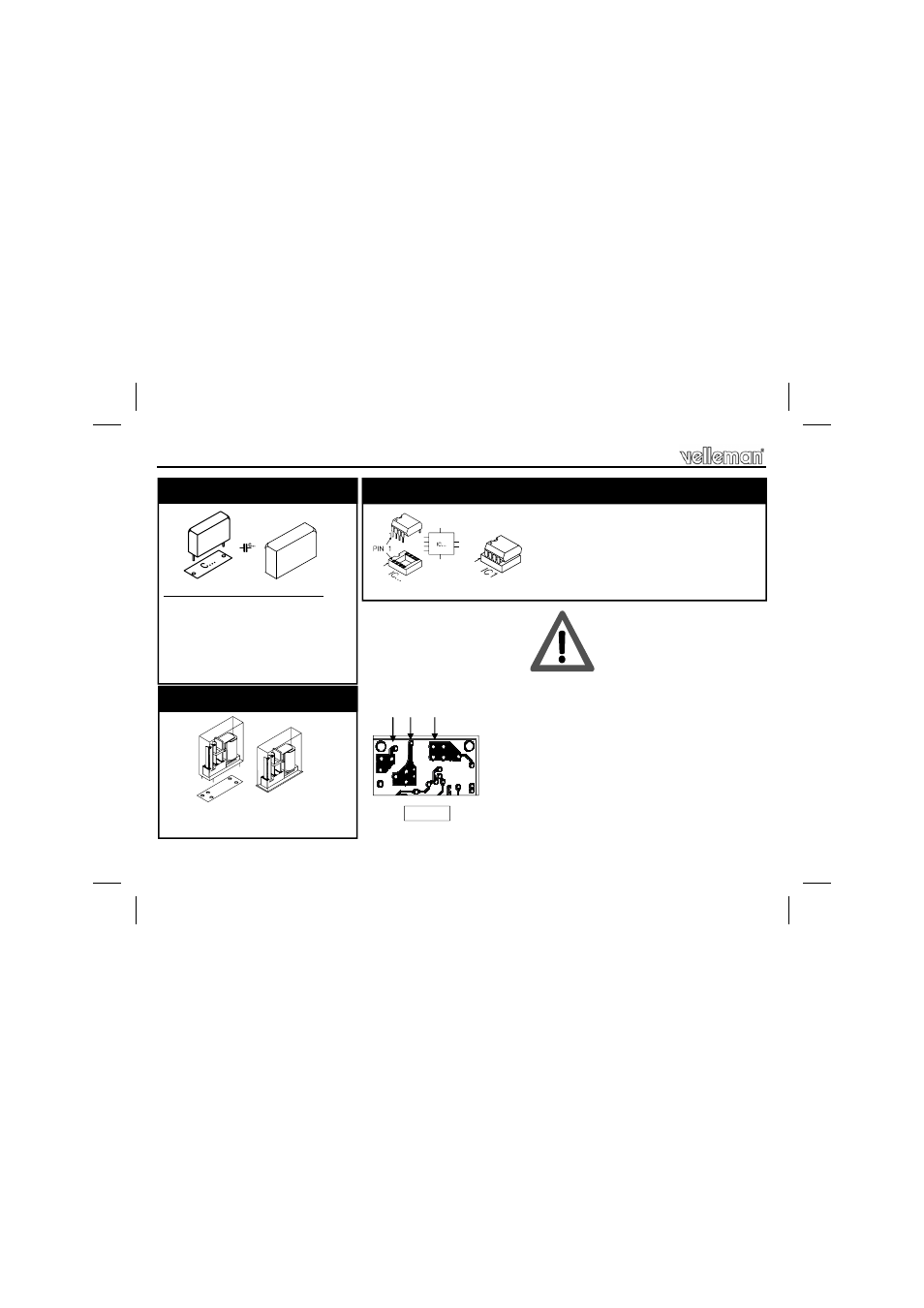

Construction
Choose operation voltage :
230V :
C5 : 0,47µF
/
630V
115V :
C5 : 0,68µF
/
400V
15. Capacitor
RY1 : VR10V241C
(24DC - 10A - 1contact)
16. Relays
IC1 : VK8075
(programmed PIC10F200-I/PG)
17. IC. Watch the position of the notch!
CHECK THOROUGHLY ALL THE COMPONENTS FOR MISS
MOUNTING, INCLUDING SOLDERING ERRORS.
PUT AN EXTRA THICK LAYER OF SOLDER
ON THESE PCB TRACKS TO IMPROVE THEIR
CURRENT HANDLING CAPACITIES.
Fig. 1.0
