Axle Housing Parts and Hardware
Axle Housing Parts and Hardware
Qty.
Per
21065T/P
Item No. Part Number
Axle
19055T/P
22065T/P
Notes
1
OUTER NUT
1
19186
119881
2
LOCK WASHER - w/TAB
1
30714
129132
3
LOCK WASHER - DOWEL TYPE
1
N/A
119883
4
INNER NUT
1
19186
119882
5
AXLE HOUSING ASSY.
1
See Page 10
6
AXLE SHAFT
2
See Page 10
KIT - U-TUBE BREATHER
1
507162
507162
Incls items 7A & 7B
7A
HOSE & CLAMP ASSY
1
129340
129340
7B
VENT TUBE
1
302706
302706
8
DRAIN PLUG - MAGNETIC
1
54254
54254
3/4”
9
PLUG - HSG COVER
1
129491
129491
1/2”
10
CAPSCREW CARRIER TO HSG.
8
130836
130836
short
CAPSCREW CARRIER TO HSG.
4
130187
130187
long
11
LOCKWASHER
12
90422
90422
12
RTV SEALANT
1
107276S
107276S
not illustrated
1
3
4
5
11
10
8
2

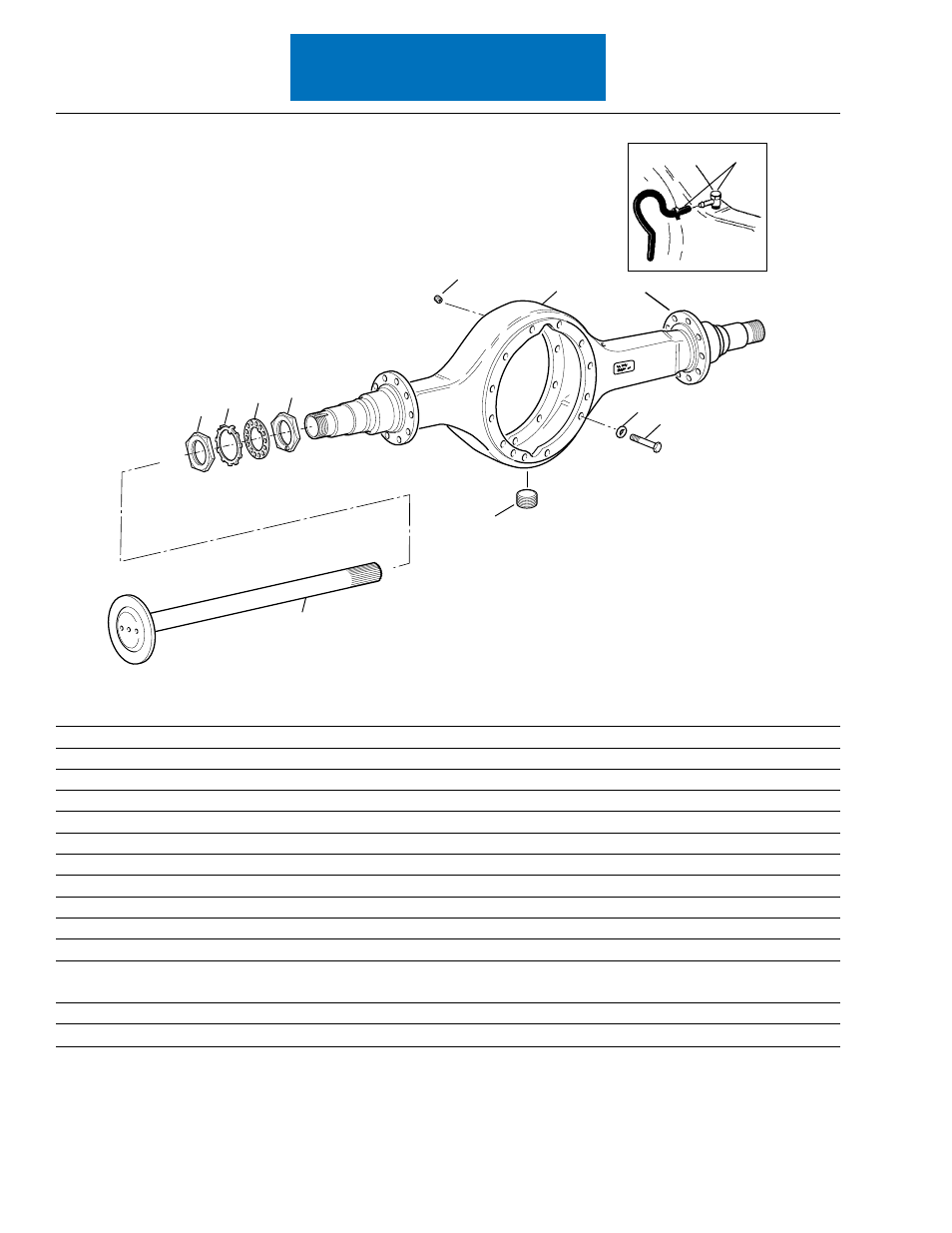

Front view of axle housing
