Spicer D590 Installation - Manual (Page 2)

Bolt-On Housing Cover Fastener Reference Chart – Dana D190, S190 and D590 Series

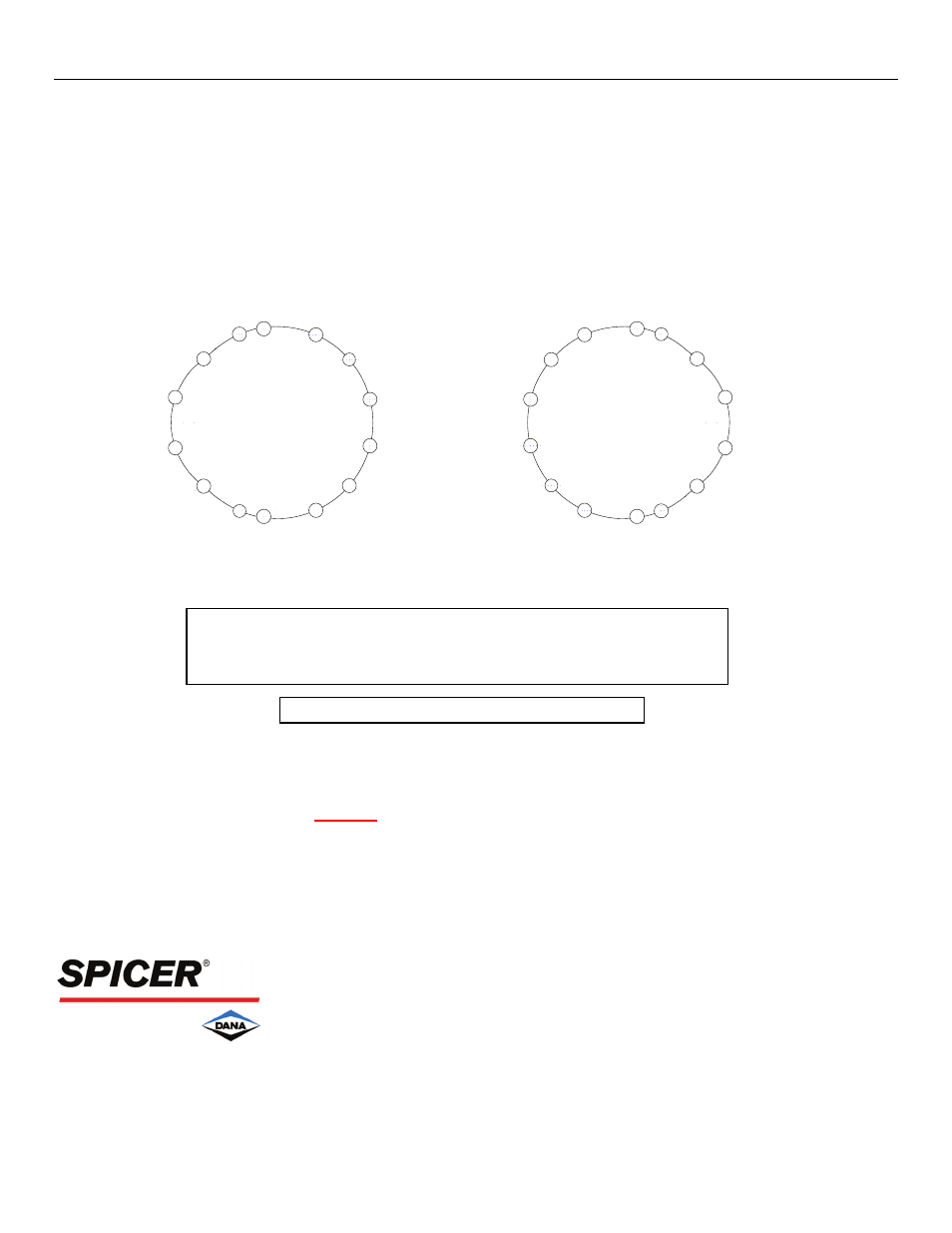

Housing Cover Fastener Locations
Dana Axle Series: D190, S190 and D590
C
B
C
B
B
C
A
B
B
C
B
B
A
B C B
C
B
B
C
B
B
C
B
B
C
B
C
Original production cover fastener locations above are shown as viewed from the installed position.
*IMPORTANT: Fastener washer locations in “original” production axles vary. For service, it is
important to use a washer at EVERY stud/capscrew location at final reassembly.
For spec’ing or service assistance, call 1-800-
621-8084 24 hours a day, 7 days a week.
Or visit our web site at: http://www.
spicerparts.com
Dana Holding Corporation
SHAIS156F Copyright Dana Corporation, 2008 Heavy Vehicle Technologies and Systems Service
June 2008 All Rights Reserved. P.O. Box 321
Printed in U.S.A. www.dana.com Toledo, Ohio 43697-0321
Current
D Housing Cover
Fastener Locations
A – 132927 Studs, 127567 Nuts & 130877 Washers
B – 131375 Capscrews – Long (70mm)
C – 131105 Capscrews – Short (55mm) & 130877 Washers
*
A - Studs to Extend 38mm (1.5”) from “Face” of housing.
Current
R Housing Cover
Fastener Locations
