WARNING: Do not attempt to make LMS™ hubs by using LMS™ bearing, spacer and seals in a standard hub.
This may result in a seal or bearing failure, which may result in loss of wheel end and or loss of vehicle control.
04/03 9 of 11 ABIB-0302
Wheel Ends without an oil fill hole proceed as follows: (see Figure 9)

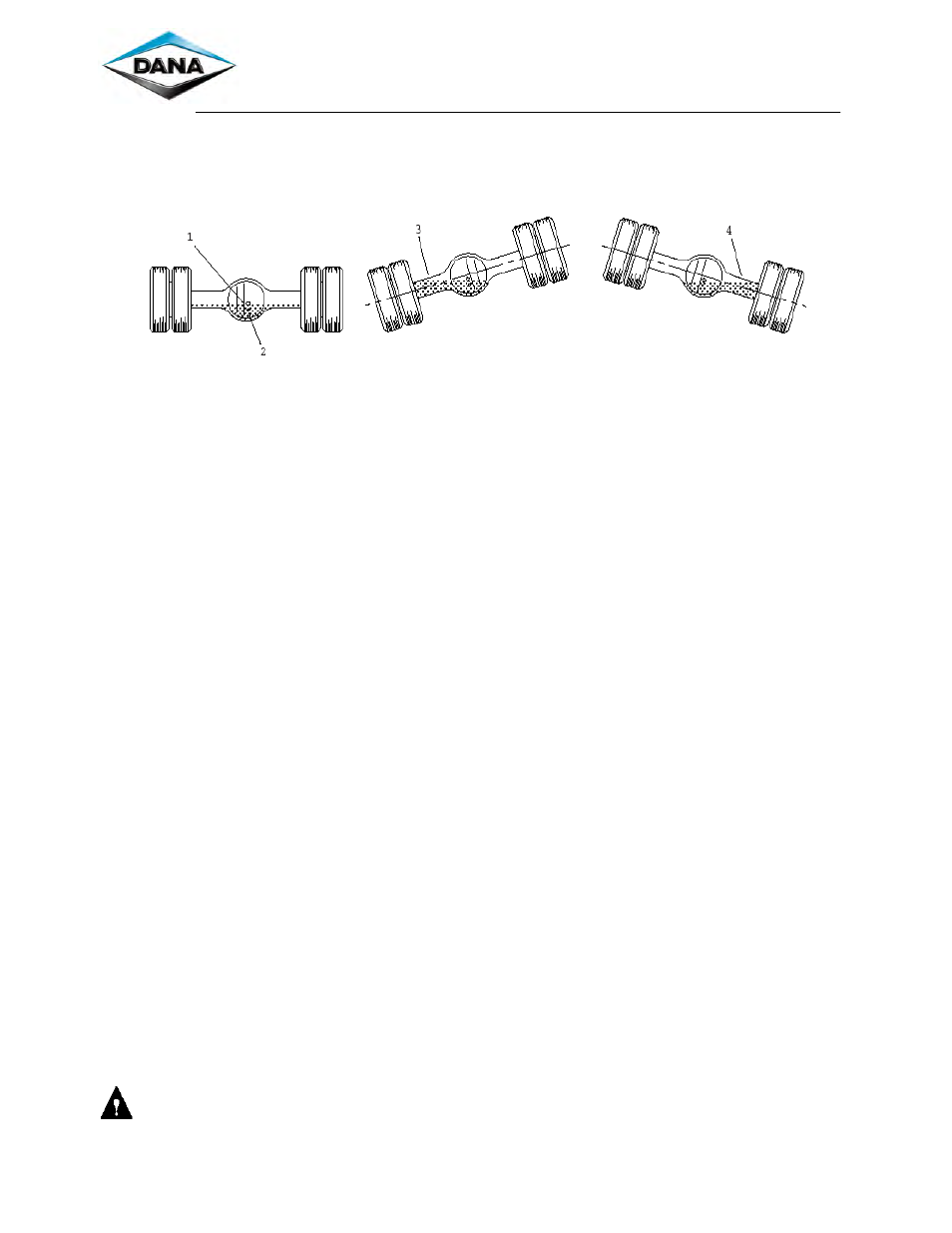

5. With axle level and wheel ends assembled, add lubricant through filler hole in axle housing cover until fluid is
level with the bottom of filler hole.(figure 1)
6. Raise the left side of the axle 6 inches or more. Hold axle in this position for one minute.(figure 3)
7. Lower the left side.
8. Raise the right side of the axle 6 inches or more. Hold axle in this position for one minute.(figure 4)
9. Lower the right side.
10. With axle on a level surface, add lubricant through housing cover oil filler hole until fluid is level with the
bottom of the hole.(figure 1)
Note: Axles without wheel end fill holes will require approximately 2.5 additional pints of lubricant to bring the lube level
even with the bottom of fill hole.
Note: For more detailed information, refer to Dana Wheel End Service Manual WESM-0060.
