5. To install the pinion height tooling, use the
threaded rod 6741 (Figure 23).
NOTE: This set up should rotate freely in the
pinion bores.
9. Zero the scooter gauge to the top of the
measuring block (Figure 26).
6. With the outer pinion adapter threaded onto
the rod, slide the rod through the outer pinion
bearing and cup.
7. Turn the carrier and put the inner cone in the
cup, and slide the threaded rod through the
carrier and through the inner bearing (Figure
24).
8. Slide the height block 6734 over the threaded
rod and position it on top of the bearing.
Screw the measuring block 6739 on the
threaded rod until it is snug (Figure 25).

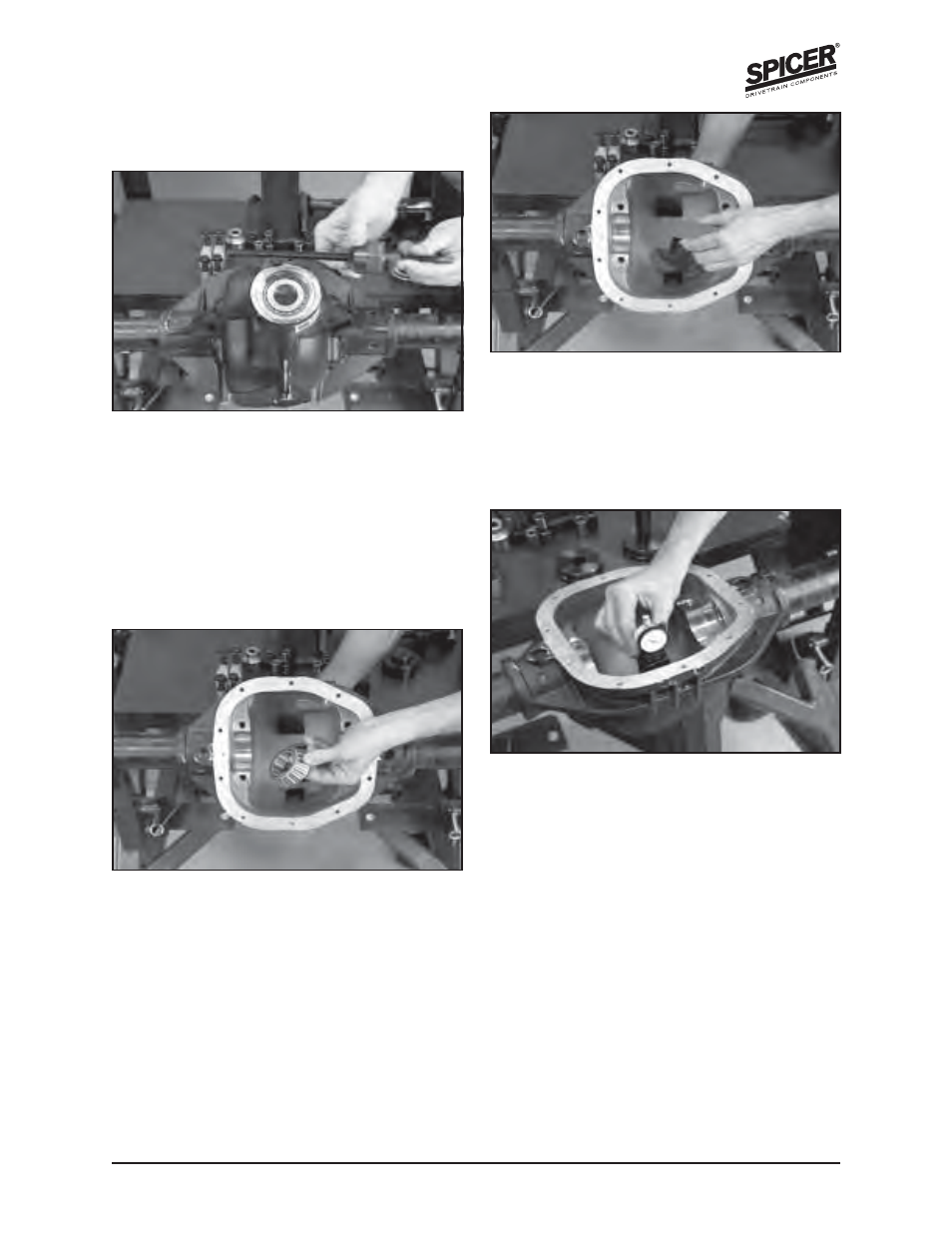

Figure 23
Figure 24
Figure 25
Figure 26
