10. With a press, remove both the inner and outer bearing cones from the output shaft.

11. Install the new inner bearing cone onto the output shaft so that the large end is facing towards the threaded end

of the shaft. Now install the outer bearing cone so that the large end is facing the inner bearing, the large ends of
the bearings should be back to back. Using a press and sleeve, press the bearings and space until the inner
bearing race is fully seated against the shoulder of the shaft. Be careful not to damage the bearing cages during
the pressing operation.

12. Before the output shaft assembly is installed inspect the inner cup for damage. If any pitting or contamination

damage (denting) is found, replace the cup.

13. Apply a thin layer of lubricant to the bearing rollers then install the output shaft assembly into the housing.
14. Install the replacement outer bearing cup making sure it is fully seated against the bearing cone.
15. Now install the new housing spacer. The spacer should be installed between the outer bearing cup and the snap

ring.

16. Install the snap ring.

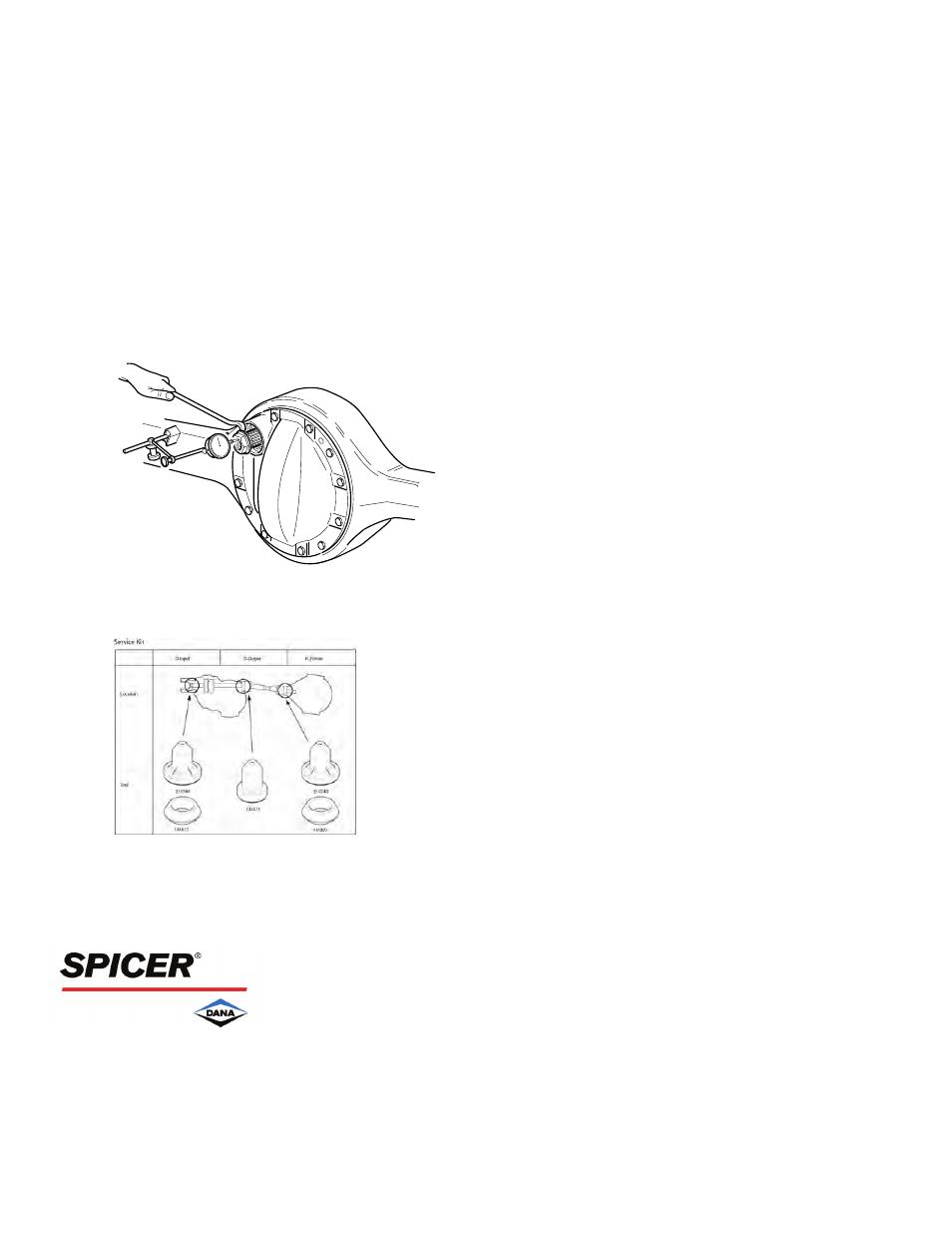

17. With a dial indicator measure the output shaft endplay it should be .001” and .015”.

18. Install the oil seal. Use the proper seal driver when installing the seal. Dana part number 131471.

19. Reinstall the output yoke.
20. Install new output shaft nut and torque to 800 – 1000 ft. lbs. (1084 – 1355 N.M).
21. Install the new inter-axle driveshaft supplied.
22. Grease both U-joints making sure grease is purged from all positions.
