Spicer Lube Manifold User Manual
Spicer, Drive axles

1
Spicer
®
Drive Axles
P/N: SHAIS181A
Lube Manifold Installation and Assembly Instructions
Model: DS404P, DSP40P, DST40P, DSH40P Family of Drive Axles
(all model options that use lube pump)
Shown below are basic assembly instructions for the lube manifold components for the models listed above. Additional
assembly and disassembly related procedures are shown in more detail in the associated service publication located on
spicerparts.com.

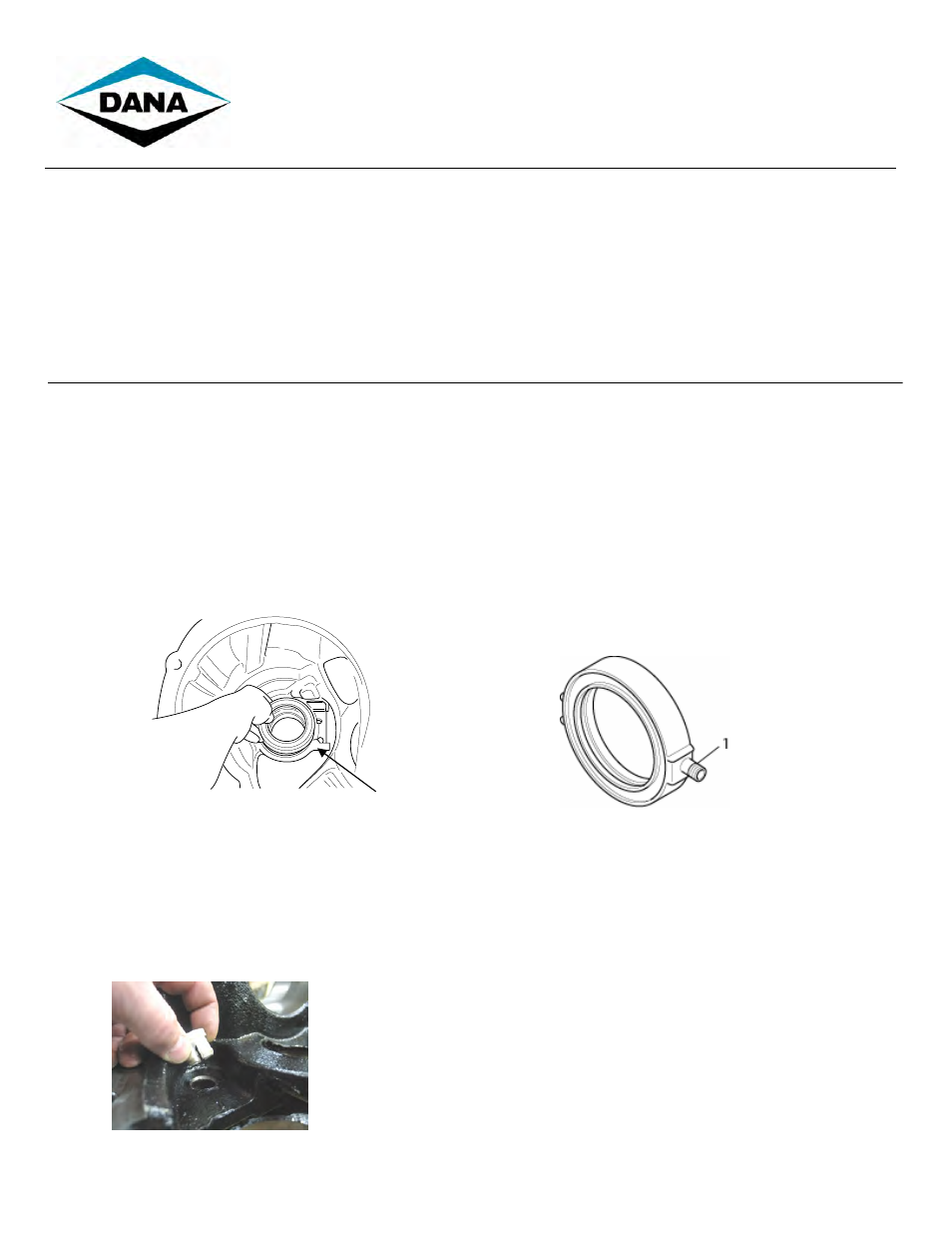

LUBE MANIFOLD ASSEMBLY:
1.
Install the manifold assembly into the output side gear bearing bore in the carrier. Make sure the barbed nipple is
lined up with the opening in the carrier casting at about the 5:00 position.
2.
Install the hose clamp on the hose, push the hose onto the barbed fitting and slide the clamp over the barbed
nipple.
3.
Route the hose through the 2 holes in the carrier casting to the bottom filter mounting hole.
4.
Look to see that the hose guide collar lock is installed and not damaged. If damaged or not present replace with
new.
1- Barb Fitting
5:00 Position
