Page 12
10

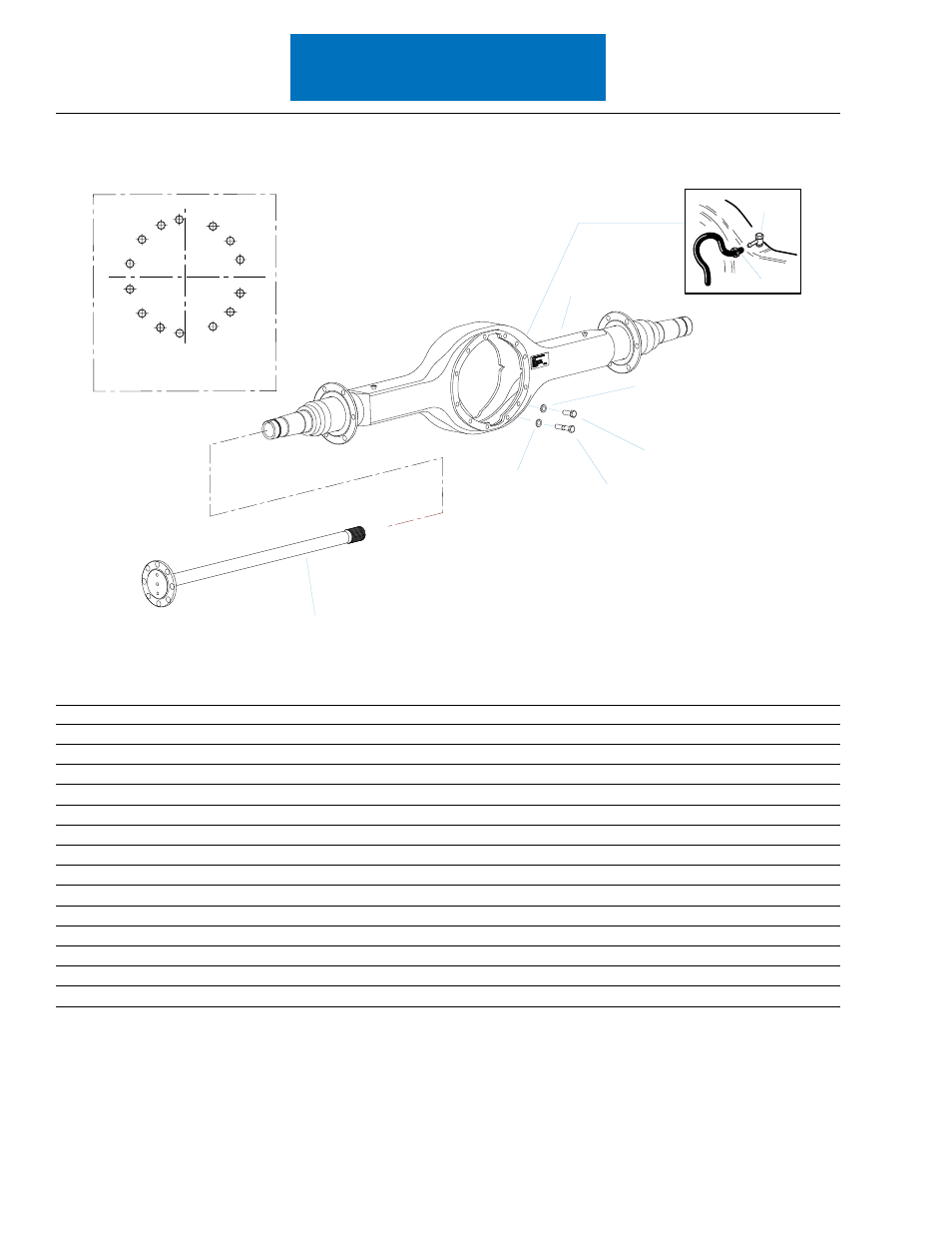

Axle Housing Parts Explode
Axle Housing Parts Explode
1
6
4
4
5
2
3b
Carrier to Housing Fasteners
(Viewed from front of axle)
5
5
5
6
5
5
5
5
5
6
6
6
3a
6
5
Axle Housing Parts List
Item
Description
Qty
Part No.
Notes
1
Axle Shaft - 39 Inv
2
---
See chart page 12
2
Axle Housing
1
---
See chart page 11
3
KIT-BREATHER VALVE ASSY
1
507162
Includes items 3a & 3b
3a
Hose & Clamp
1
129340
3b
Vent
1
302706
KIT-AXLE HOUSING HARDWARE
504113
Includes items 4-6
4
Washer
14
128415
5
Capscrew, Carrier to Hsg - Short
5
210115
40mm - M14 X 2
6
Capscrew, Carrier to Hsg - Long
9
210091
70mm - M14 X 2
7
Wheel Brg Nut - outer
2
119881
not illustrated
8
Wheel Brg Nut - inner
2
119882
not illustrated
9
Washer - Wheel Brg Lock
2
119883
not illustrated
10
Washer - Wheel Brg Tanged
2
129132
not illustrated
11
Thread Adhesive
1
129293
not illustrated
12
RTV Sealant
1
107276S
not illustrated
