Spicer Bolt-On Housing Cover Service Parts Hardware Change - Manual (Page 2)

Axle Model Part No. Location Class Size Length lbs. Ft. N.m
D46-590, D52-190, D52-190D,
D52-590, D60-190, D60-590
131105 Carrier to Housing - Long 10.9 M16X1.5 55mm 235-265 339-373
S26-190DE, S30-190DE 131375 Carrier to Housing - Short 10.9 M16X1.5 70mm 235-265 339-373
127567 Carrier to Housing - Nut 12 M16X1.5 N/A 235-265 285-311
Torque Specification Chart

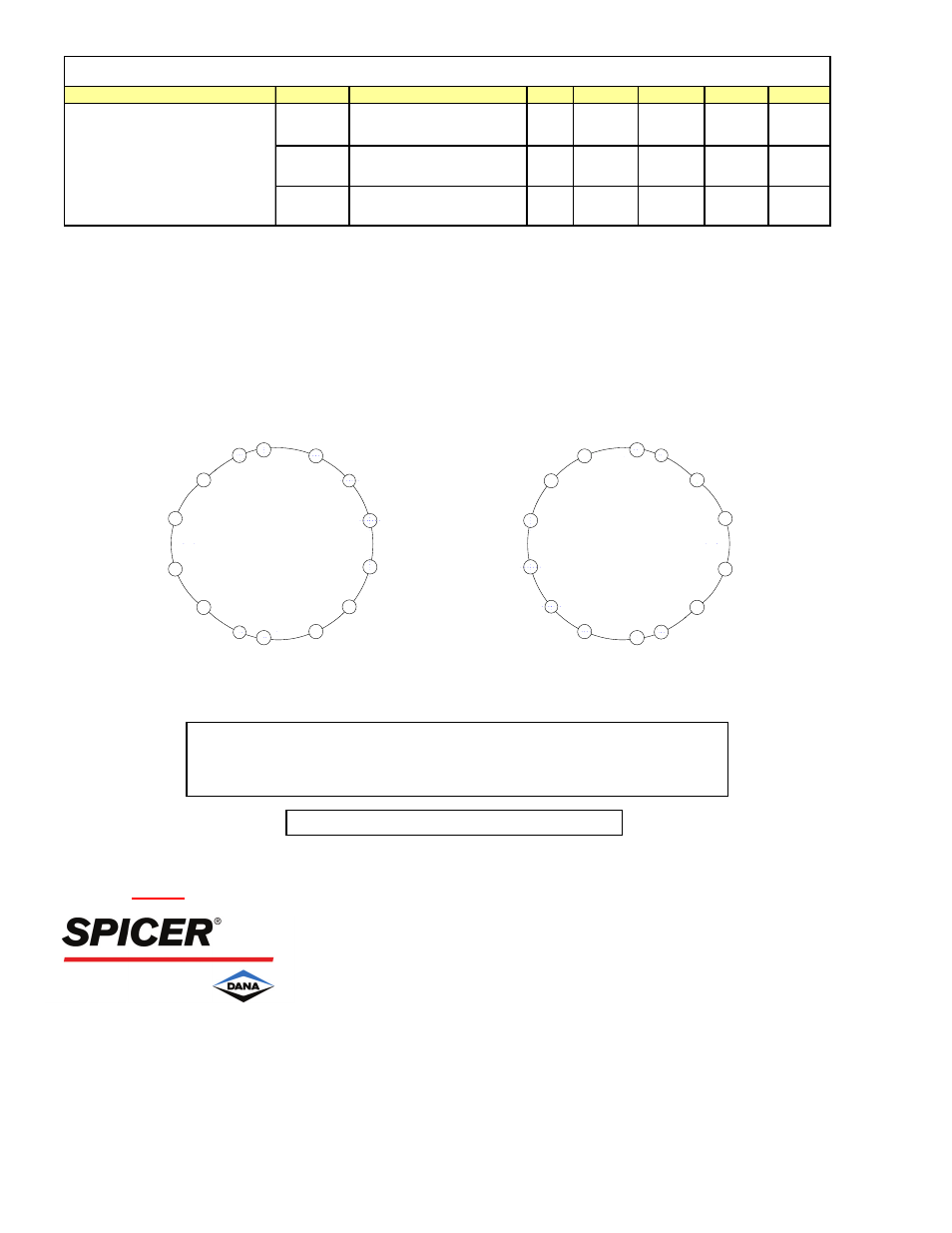

Fastener Locations
Dana Axle Series: D190, S190 and D590
C
B
C
B
B
C
A
B
B
C
B
B
A
B C B
C
B
B
C
B
B
C
B
B
C
B
C
Original production cover fastener locations above are shown as viewed from the installed position.
*IMPORTANT: Fastener washer locations in “original” production axles vary. For service, it is important to use a
washer at EVERY stud/capscrew location at final reassembly.
For spec’ing or service assistance, call 1-800-
24 hours a day, 7 days a week
Or visit our web site at: www.
spicerparts.com
Dana Corporation
ABIB-0610R1 Copyright Dana Corporation, 2006 Heavy Vehicle Technologies and Systems Service
October 2006 All Rights Reserved. P.O. Box
Printed in U.S.A. www.dana.com 7ROHGR2KLR
Center
Punch
Current
D Housing Cover
Fastener Locations
A – 130901 Studs, 127567 Nuts & 130877 Washers
B – 131375 Capscrews – Long (70mm)
C – 131105 Capscrews – Short (55mm) & 130877 Washers
*
A - Studs to Extend 38mm (1.5”) from “Face” of housing.
Current
R Housing Cover
Fastener Locations
