The Dana 60™ axle is the first name in a wide variety of high-quality performance applications. The Dana 60 axle is built
with all original Spicer

components, so they meet the rigorous standards and specifications that have made Dana the

most trusted name in driveline products. Dana 60 axles are available with a standard (open) differential or a Trac-Lok

limited

slip differential for optimum performance.

For over a century, Dana has been a leader in driveline components. Now for the first time, you can get the trusted Dana
name right from the source through the innovative Dana Crate Axle™ Program. No knock-offs, no used axles—the parts
you need from the name you trust.

*Note:

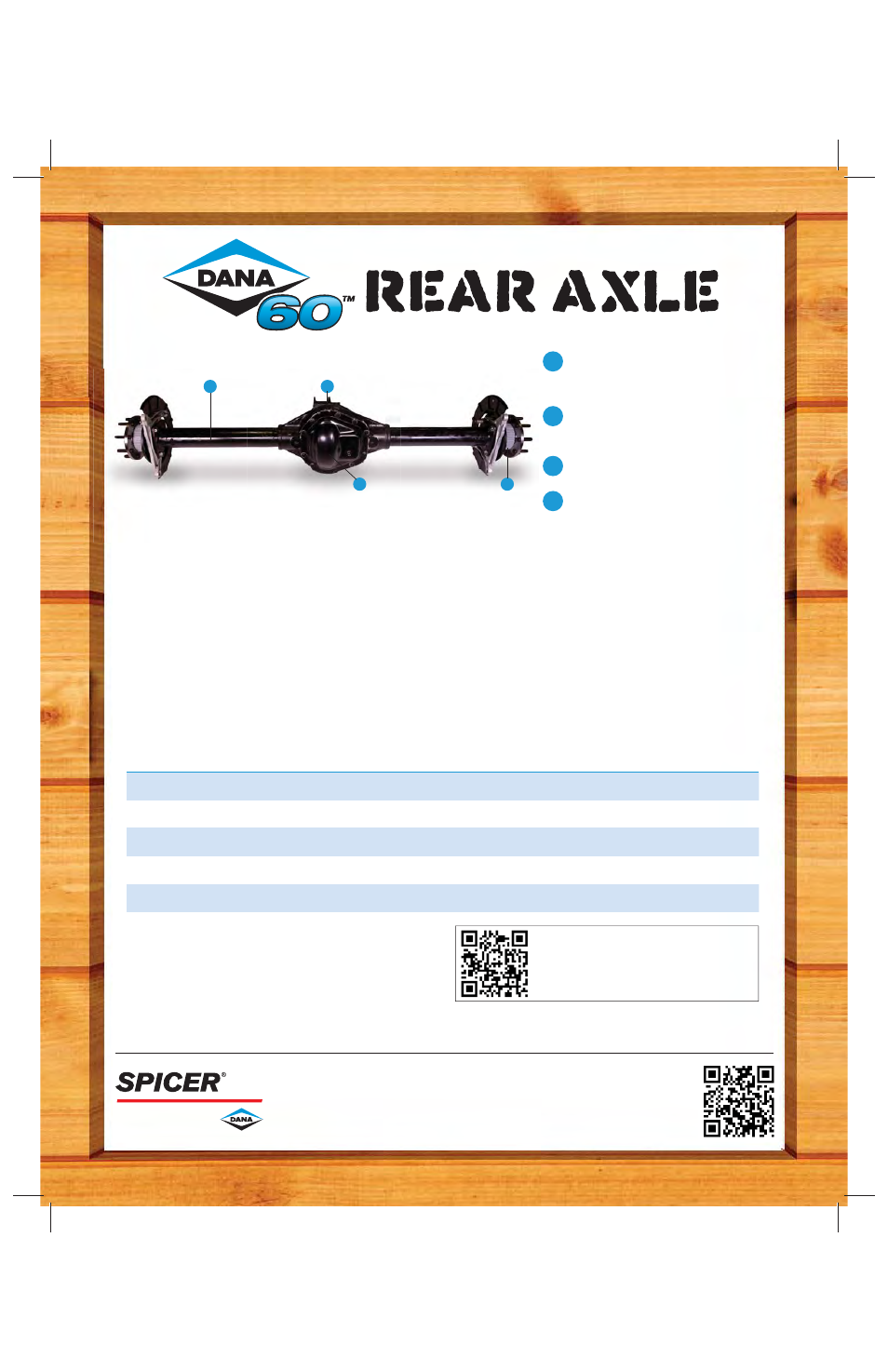

Axle shown for display purposes only. Model shown may not represent the actual axle.

Differential Options: Trac-Lok

limited slip or standard (open) differential

Lube Options: Mineral oil: 3.25 liters of gear oil SAE 80W90, or

Synthetic oil: 3.25 liters of gear oil SAE 75W140

Reference Application Guide for Dana 60™ Rear Axle

Engine
Torque

lbs.-ft

400

GVW

lbs.

8200

GAWR

lbs.

5760

GCW

lbs.

17100

Axle Ratio

3.73

4.10

4.56

4.90

5.13

Ring

Gear Size

inch

9.75

Forward

4.17

Reverse

3.40

Transmission Ratios

Size

38 in.

Max. Tire

Thicker wall tubing for increased
housing strength

Axle shaft strength increased with
larger diameter, 35-tooth spline

New aftermarket ratios available

1350 Series end yoke
