INFORMATION BULLETIN – ABIB-0608R1 - New Design Piloted Input Adjuster Released for D170 and D190 Models
13. Measure end play, set to .001” to .005”

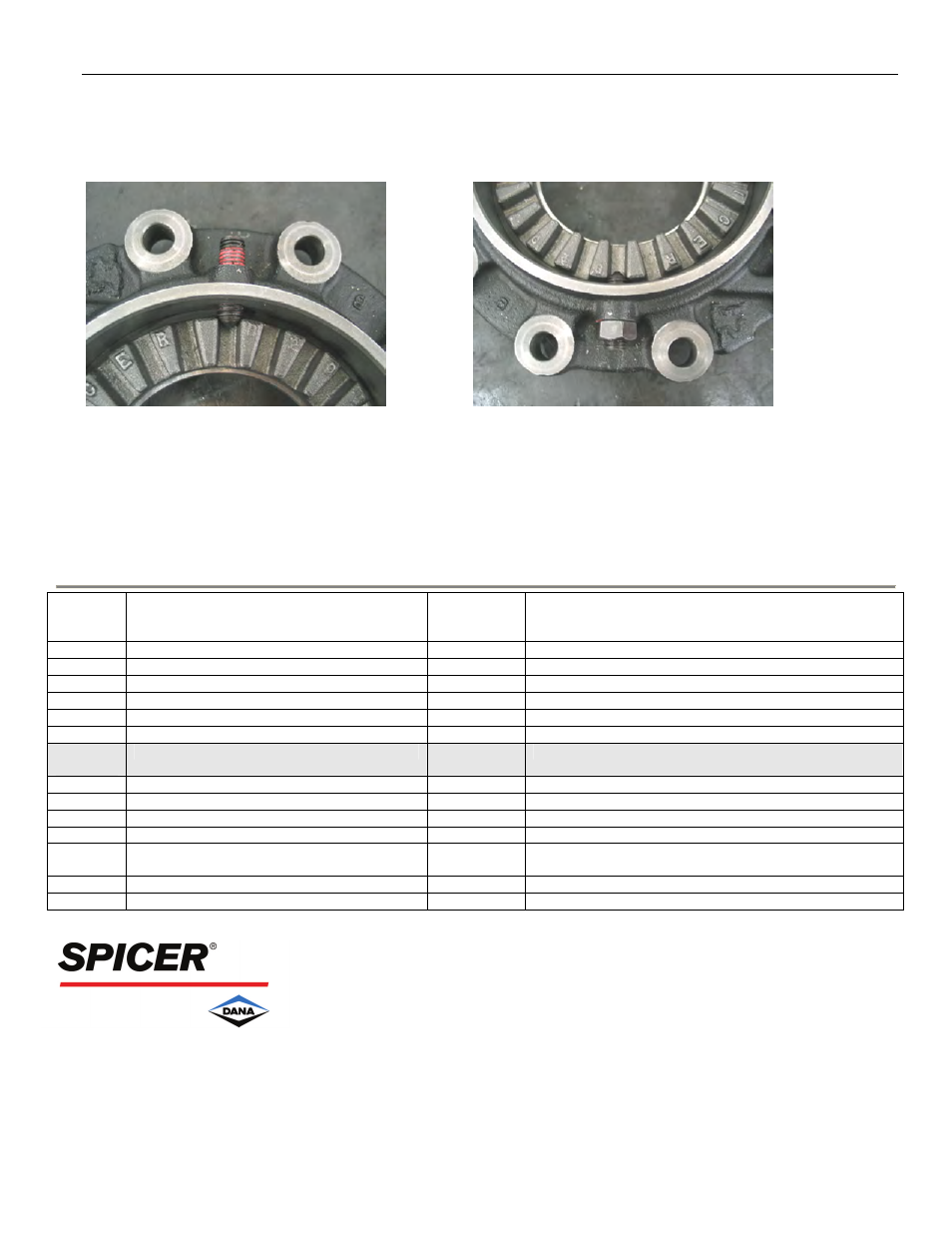

14. Install new retaining stud, make sure it is aliened to an adjuster slot and torques to 20 ft. lbs.
15. Install retaining stud jam nut and torque to 65 ft. lbs.
Torque Stud to 20 ft. lbs. Torque Jam Nut to 65 ft. lbs.
16. Install new input seal.
17. Reinstall yoke assembly
18. Install new input nut, torques to 800 – 1000 ft. lbs.
19. Stake input nut
20. Reinstall Driveline.
SERVICE PARTS REFERENCE INFORMATION
Original
Part-No
Description For Service
Order New
Part-No
Comments
131221 Cover – D170 model 514357 NLA
131328 Cover – D190 model 514356 NLA
513881 Kit – Input Cover D170 514357 NLA
513879 Kit – Input Cover D190 514356 NLA
131217 I/P Adjuster & Cup Assy – D170, D190 NEW KIT Order 514357 or 514356 based on model
131373 Capscrew – D170/D190 models 131373 Remains active for service, use w/ old cover parts only
New
Parts
514357 Kit - D170 Input Cover NEW Includes: 131686,131692,131693,131685,131374 (qty10)
514356 Kit - D190 Input Cover NEW Includes: 131687,131692,131693,131685,131374 (qty12)
131686 D170 Input Cover - NSS 514357
131687 D190 Input Cover - NSS 514356
131685
I/P Adjuster & Cup Assy – D170, 190
NEW
New I/P Adjuster cannot be used with “Original” design
covers. Best to stock the new kits above
131692 Stud NEW
131693 Nut NEW
NSS – Not Sold Separately
For spec’ing or service assistance, call 1-80
0-621-8084 24 hours a day, 7 days a week.
