Driveshaft Model Identification
All applications must be approved by the Application Engineering Department. Specifications and/or design are subject to change without notice or obligation. Printed in USA DSMT-0100 10/04
Important: To determine driveshaft lubrication intervals, accurate driveshaft model identification is required.
The following pictures and descriptions will aid in this process.

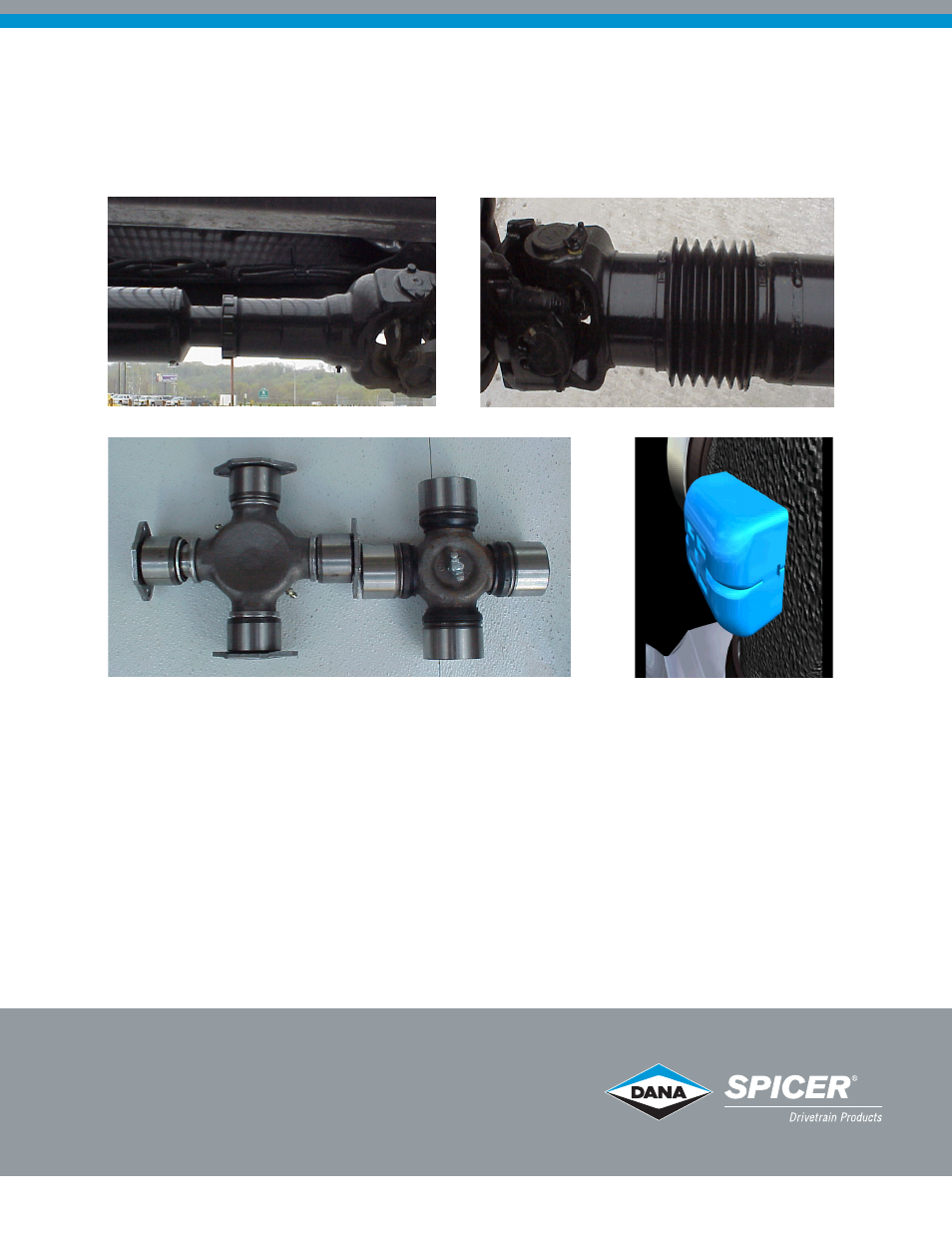

Picture 1 Picture 2
Picture 3 Picture 4
10-Series - Can be identified by the slip yoke (picture 1) having no boot and the grease zerk fitting located between
the u-joint bearing caps (picture 3, left side).
Spicer Life Series – Can be identified by the booted slip member (picture 2) and the grease zerk fitting located at
the center of the u-joint cross with hard plastic bearing cup seals.
Spicer Life XL Series – From the outside looks the same as the standard SPL Life Series, but will have a black
plastic cap over the grease zerk fitting (picture 4) and soft boot bearing cup seals (picture 3, right side). To grease
this XL Series, simply remove the black plastic cap and properly purge the u-joint with lubricant.
Note: For complete service information on these products, please reference the following publications:
DSSM-3264 10-Series U-Joint Service Manual
3264-SPL Spicer Life / XL Series U-Joint Service Manual
TCMT-0021 Roadranger Products Lubrication Manual
