Spicer
®
Drive Axles
P/N: SHAIS115B
Oil Seal Installation Information
Pictured below is important information pertaining to the seals shown in the chart below. Directional seal installation is
important as failure to follow correct installation procedures can result in leakage causing internal component damage.
The seals listed below are for particular models and locations. These oil seals are “Directional Oil Seals” which are
designed with “Sipes” and “Lip Vents”. The purposes of sipes in an axle seal are to direct the lubrication back into the
axle during normal operation. The inside & outside dimension’s of the oil seals listed below are identical, the only visible
difference will be the direction in which the sipes are angled, as shown in the illustration below.
Copyright Dana Limited, 2013
Dana Aftermarket Group
SHAIS115B JFEB 2013
All Rights Reserved.
P.O. Box 321
Printed in U.S.A.
Dana Limited
Toledo, OH 43697-0321
IMPORTANT: These seals must be installed in their correct Input / Output location or leakage through the seal
may occur. Oil leakage from the axle can cause internal component damage and may lead to axle failure.
Model
Seal Position
Seal Type
Dana Seal Part-No.
J,N,S400 Tandem
Rear Input
B
401HH102
N400 Tandem
Forward Output
A
401HH103
N, S400
Forward Input
B
401HH104
J, W Tandem
Forward Input
B
472HH100
J, W, S Tandem
Forward Output
A
472HH101
G, M 2-Speed
Rear Input
B
GGAHH109
S135, S150
Rear Input
B
029HH100
S230-S
Rear Input
B
300HH100

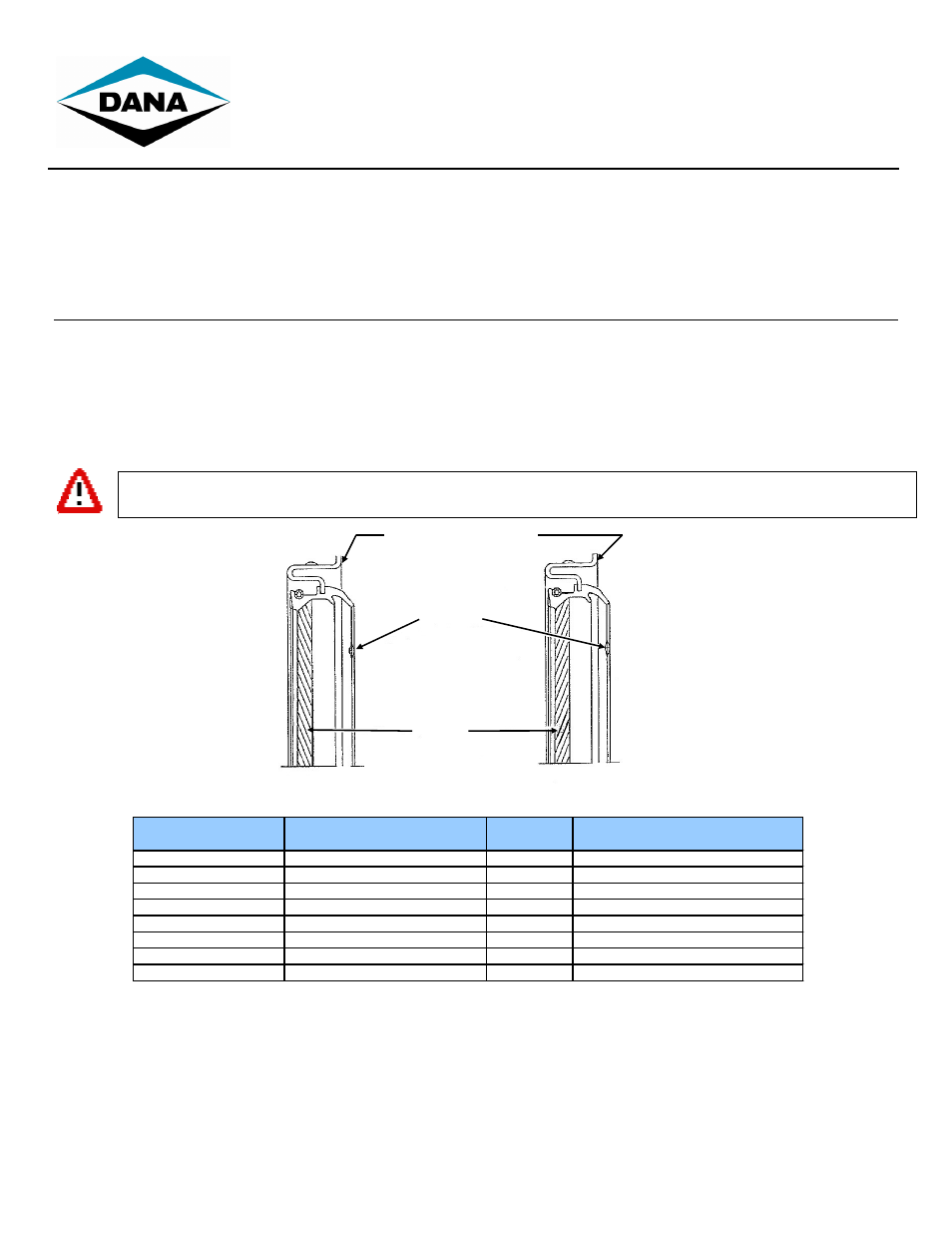

Lip Vent
Sipes
Stamped Part Number
On Flange
A (Output)
B (Input)
Seal Cross Section
