Diagnostics – Spicer TPCS Troubleshooting Guide: Older Systems (ECU's w_Dual Connectors) User Manual
Page 19
19
Diagnostics
HandHeld Testers

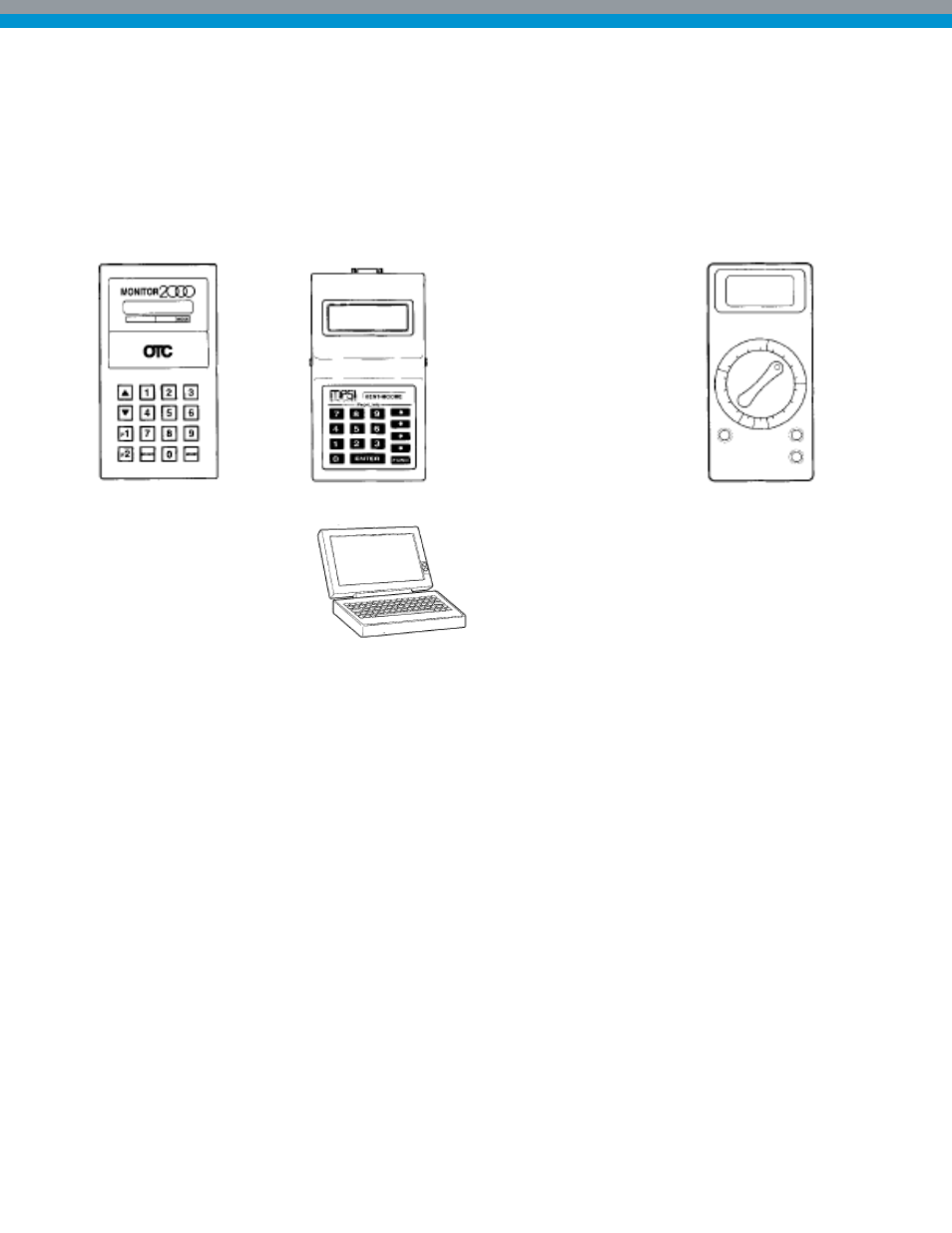

An OTC or MPSI handheld tester may be used to read and clear fault
codes and to obtain a short description of failures. The tester can
initiate test sequences for controller outputs and can also read system
parameters.
Personal ComputerBased Diagnostics
Personal computer based software provides
the capability of handheld testers with
enhanced display and data .ogging capability.
A personal computer can display multiple
parameters and provide more comprehensive
descriptions of fault conditions.
Use of a personal computer requires a serial link assembly such as Kent
Moore’s part number J38351 and Spicer’s Tire Pressure Control System
diagnostic software.
Multimeter
Based upon system schematics and aided by component specific
fault codes, a multimeter can be used to check sensor and solenoid
resistances and to find wiring harness faults. The multimeter can be used
to check the Tire Pressure Control System wiring and component for:
• continuity
• ground
• broken wires
• open circuits
• shorted circuits
• incorrect battery voltage
