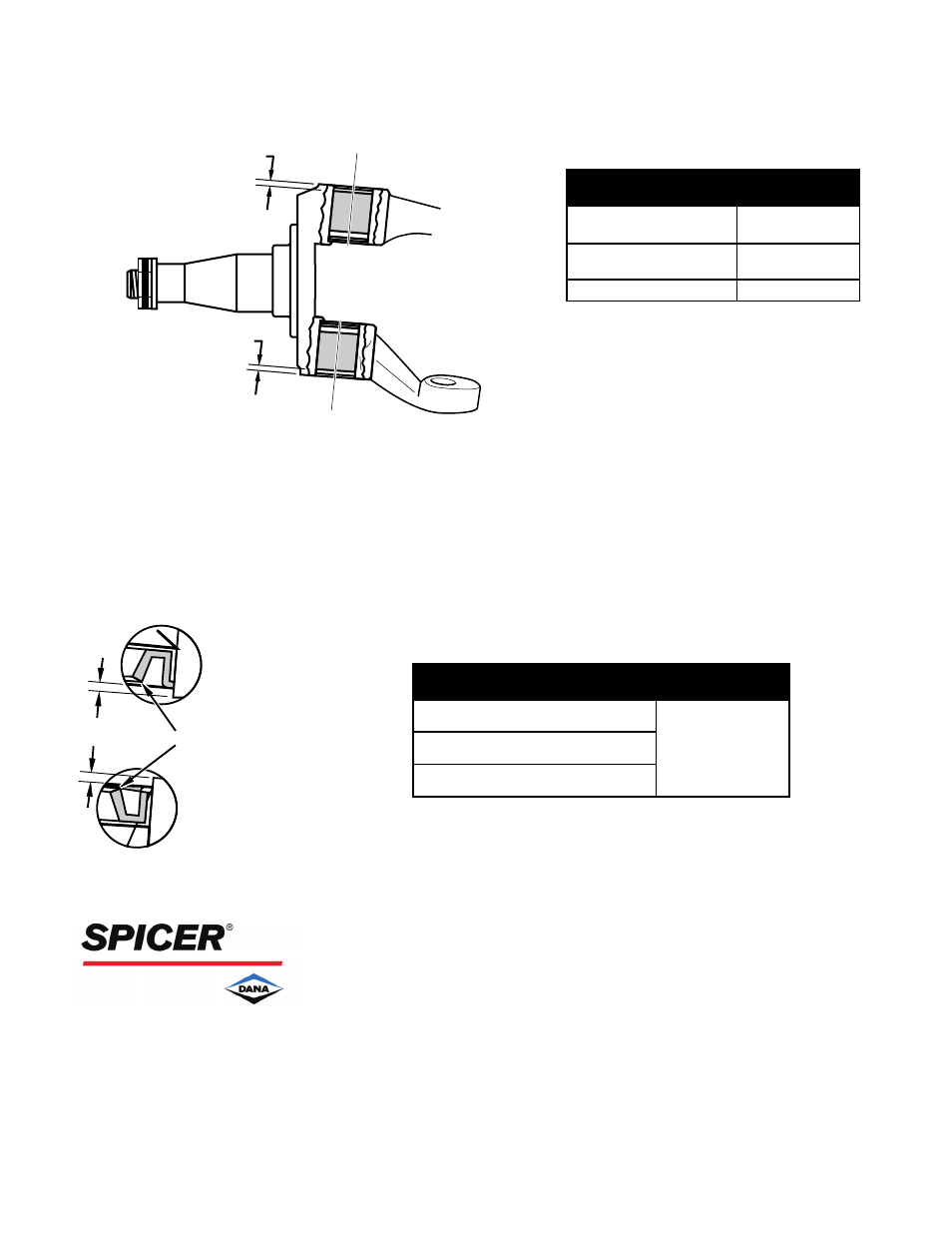

7. Drive bushing until they are located at the depth indicated in figure 2, refer to the chart for proper model depth.
Use the same method to install both top and bottom bushings.
Figure 2
8. Install new grease seal using the proper installation tool. When installing the seal be sure the lip is pointing
toward the center of the knuckle. See Figure 3 for seal position.
Figure 3
For spec’ing or service assistance, call 1-800-621-8084 24 hours a day, 7 days a week.
Or visit our web site at:
http://www.spicerparts.com
;
;
;
;
Install
top seal
lip down
Install
bottom
seal
lip up
;;
;;;
Lip
0.060"
0.060"
Bushing Remover / Installer for all
Models
Available from: OTC Division Service
Tools: 1-800-533-0492
Reference Dana Service Manual:
AXSM-0038
Installation Tools
OTC P/N
ZTSE 4330A
Bushing
Recess bushing from the
bottom knuckle
surface.
Recess bushing from the top
knuckle surface.
5,000 - 8,000 lbs
.17" Top Bushing
.34" Bottom Bushing
9,000 - 14,000 lbs
.40" Top Bushing
.112" Bottom Bushing
16,000 - 20,000 lbs
.200"
Dana "I" Series
Bushing Depth
Dana Corporation
SHAIS113B
