Spicer PDU Cover & Outer Pinion Support Bearing for 46,000 LB - Manual (Page 2)

Shown below is a quick reference chart for power divider cover castings for both “pump” models and “non-pump” models.
SERVICE ASSEMBLY INFORMATION
INSTALLATION OF THE ONE-PIECE (120080) “PINION SUPPORT BEARING”
The pinion support bearing 120080 is a one-piece roller bearing. With this design there is no separate bearing race or
snap ring that requires removal or installation. All installation and removal procedures for this one-piece bearing are
otherwise the same as called out in the service manual AXSM-0044.
POWER DIVIDER TO CARRIER INSTALLATION
Follow the procedures detailed in the current AXSM-0044 service manual. The power divider installation procedure in
general is no different for the new one-piece bearing design than for the old three-piece bearing set up. The new style
power divider carriers are machined such that the one-piece roller bearing will seed into the machined pocket with no
additional adjustments or procedures required.
NOTE: Old style parts and new style parts are not interchangeable due to their inherent design features. Check to
make sure you are installing the correct parts when repairing your axle. Older style power divider covers can be visually
identified by the existence of a snap ring groove in the machined bearing pocket inside the cover. The covers with this
groove must use the older style bearing parts shown below.
For spec’ing or service assistance, call 1-800-
24 hours a day, 7 days a week
Or visit our web site at: http://www.
VSLFHUSDUWV.com
Dana Corporation
Copyright Dana Corporation, 2000 Commercial Vehicle Axle Division
April 2001 All Rights Reserved. P.O. Box
321
Printed in U.S.A. www.dana.com Toledo, Ohio 43697-0321
Reference
Power Divider Stamped Part Number Model Type Casting Number
103526, 103536, 117311, 129965, 510792 pump models 103526C
129459, 508497, 129969, 510793 non pump models 129459C

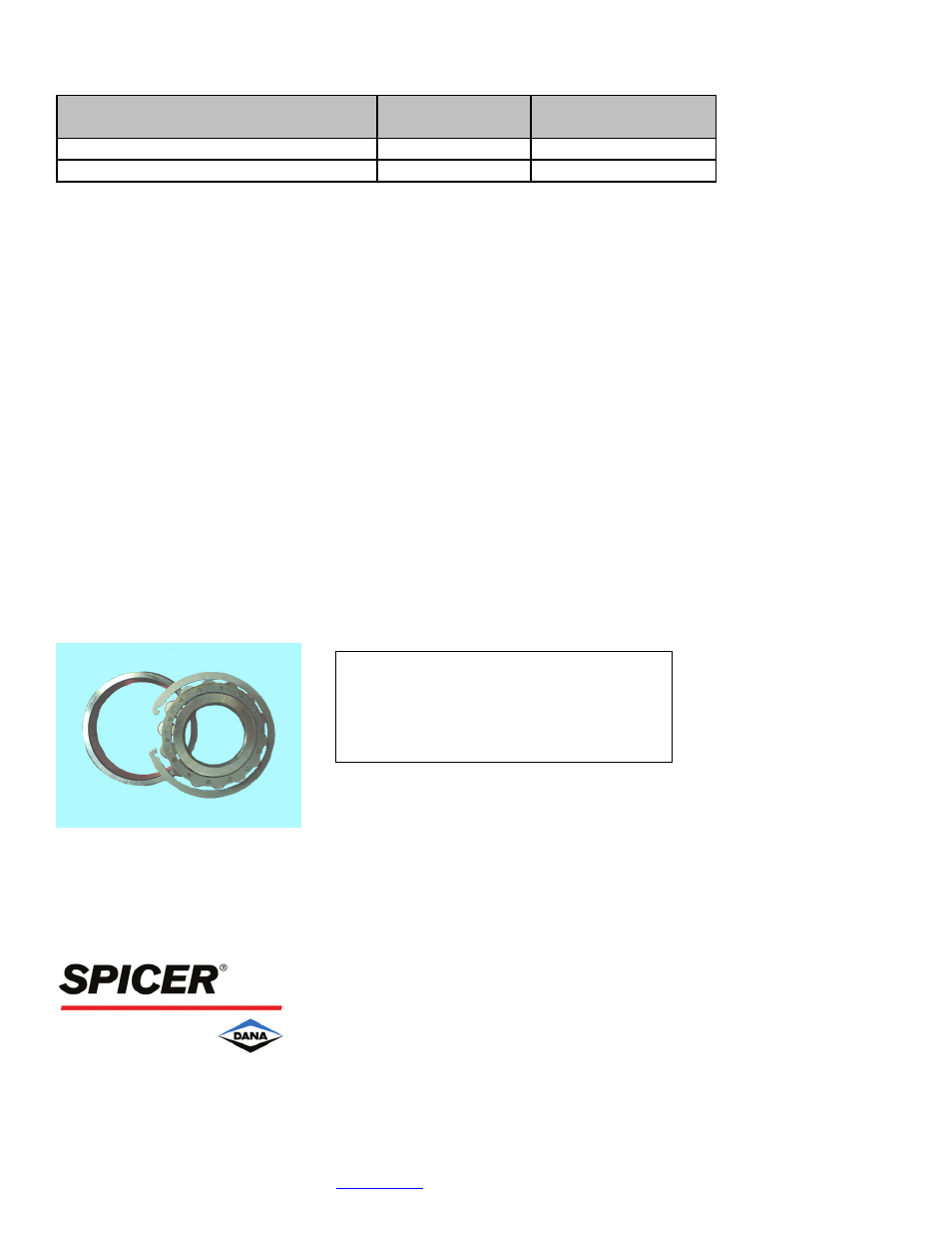

Old style (three-piece) bearing parts
78916 bearing/race assy & 78937 snap
ring will not fit in new style PDU cover
part numbers 129965 and 129969 due to
design variations.
