INFORMATION BULLETIN - ABIB-0801R1 – NEW REDESIGNED 40K TANDEM CARRIERS

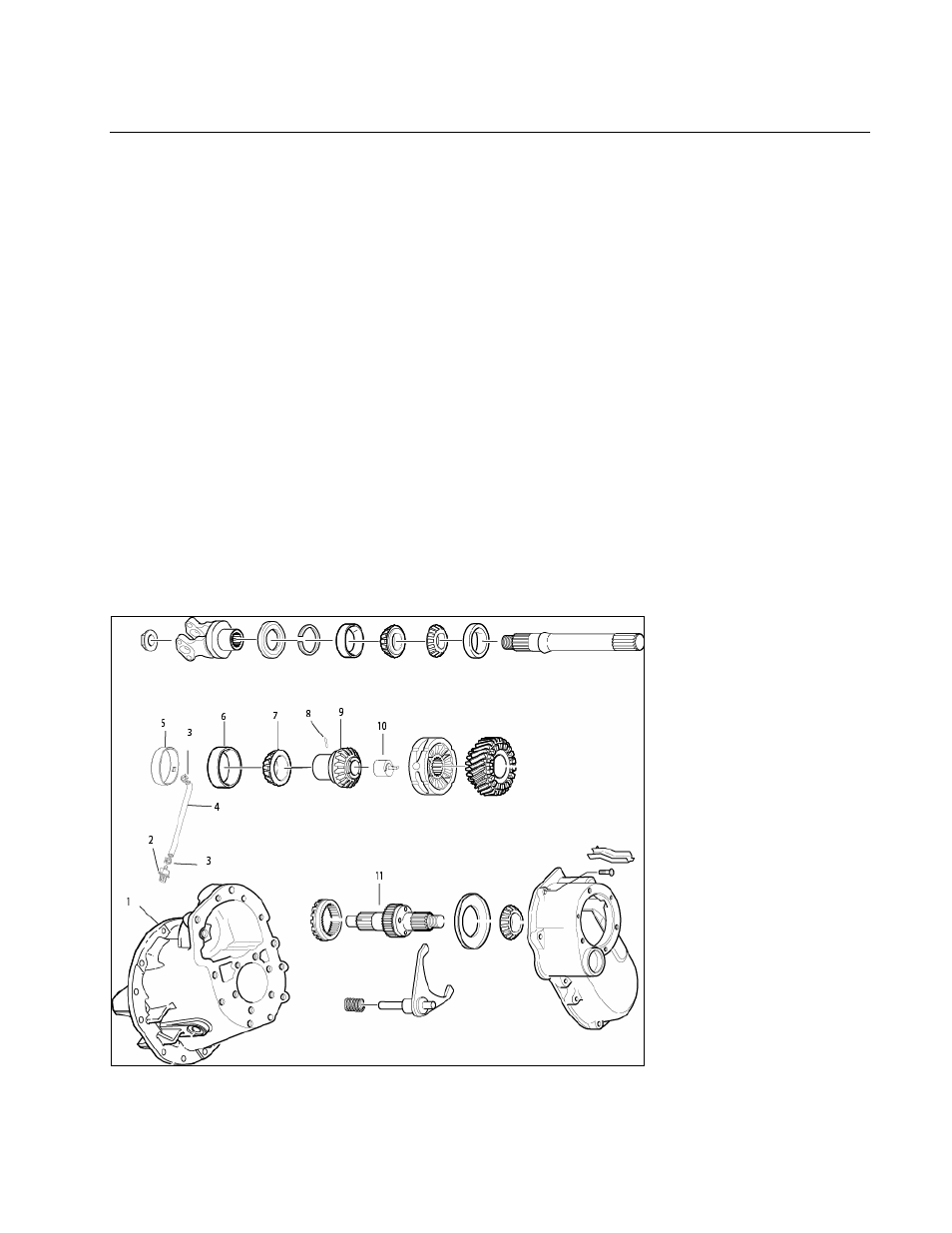

NEW DESIGN FORWARD CARRIER POWER DIVIDER:
SERVICE KITS and LOOSE PARTS LISTING:
504026 – Input Shaft Kit - Non Pump (includes items 11a, plus 128049 nut, 132439 washer - not shown below)
504027 – Input Shaft Kit - Pump Models (includes items 11b, plus 128049 nut, 132439 washer - not shown below)
504028 – Lube Pump Kit – D40P (includes items 7-8, 9b-10)
504029 – Manifold Parts Kit – D40K Pump Models (includes items 2-4, 5b)
513880 – Manifold Parts Kit – D40K Non-Pump Models (includes item 5a)
504030 – Basic Overhaul Kit – D40K Standard Models
504031 – Basic Overhaul Kit – D40K Diff-Lock Models
1a. 132038 – Forward Carrier/Cap – Standard Models - NSS
(Spicer Service Kit is: 132466)
1b. 132043 – Forward Carrier/Cap – Diff-Lock Models - NSS (Spicer Service Kit is: 132467)
2. 133964 – Filter Screen Assembly
3a. 134010 – Collar Lock (located on filter end of hose)
3b. 129338 – Clamp (located on manifold end of hose)
4. 134011 – Lube Hose
5a. 132435 – Seal Manifold Assembly – Non Pump Models (sold only in kit# 513880)
5b. 131366 – Seal Manifold Assembly – Pump Models (sold only in kit# 504029)
6. 110811 – Bearing Race
7. 132060 – Bearing Cone
8. 131541 – Pin
9a. 132443 – Output Side Gear – Non Pump Models
(note: ID=1.81”)
9b. 132061 – Output Side Gear – Pump Models (only sold in kit# 504028) (note: ID=2.08”)
10 131368 – Lube Pump (sold as part of kit# 504028)
11a. 132447 – Input Shaft – Non Pump Models (sold only as kit# 504026)
11b. 132446 – Input Shaft – Pump Models (sold only as kit# 504027)
Note 1: The new base Carrier/Cap (item#1) is designed to use NEW style parts only. It is not possible to retrofit or interchange OLD and
NEW design parts.
