ASUS Xonar DX

No Item

Description

1

Front Out

Connects to the Front input port of the 6./7. speakers with
the mini-jack cable.

2

Side Surround Out

Connects to the Surround input port of the 6./7. speakers
with the mini-jack cable.

3

Center/Subwoofer

Connects to the Center/Subwoofer input port of the 6./7.
speakers with the mini-jack cable.

4

Back Surround Out

Connects to the Back Surround input port of the 6./7.
speakers with the mini-jack cable.

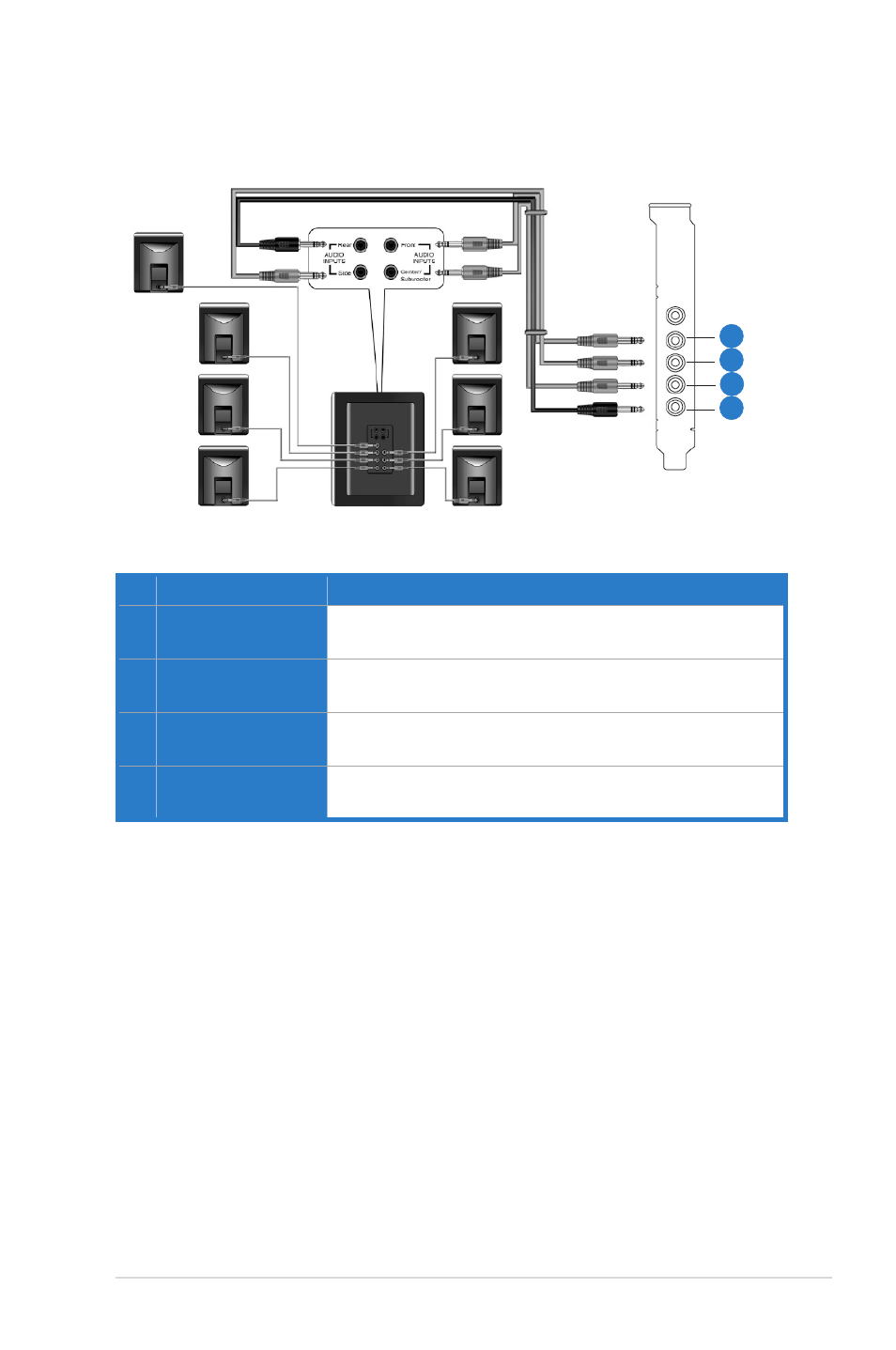

7.1 Speakers

1
2

3

4
