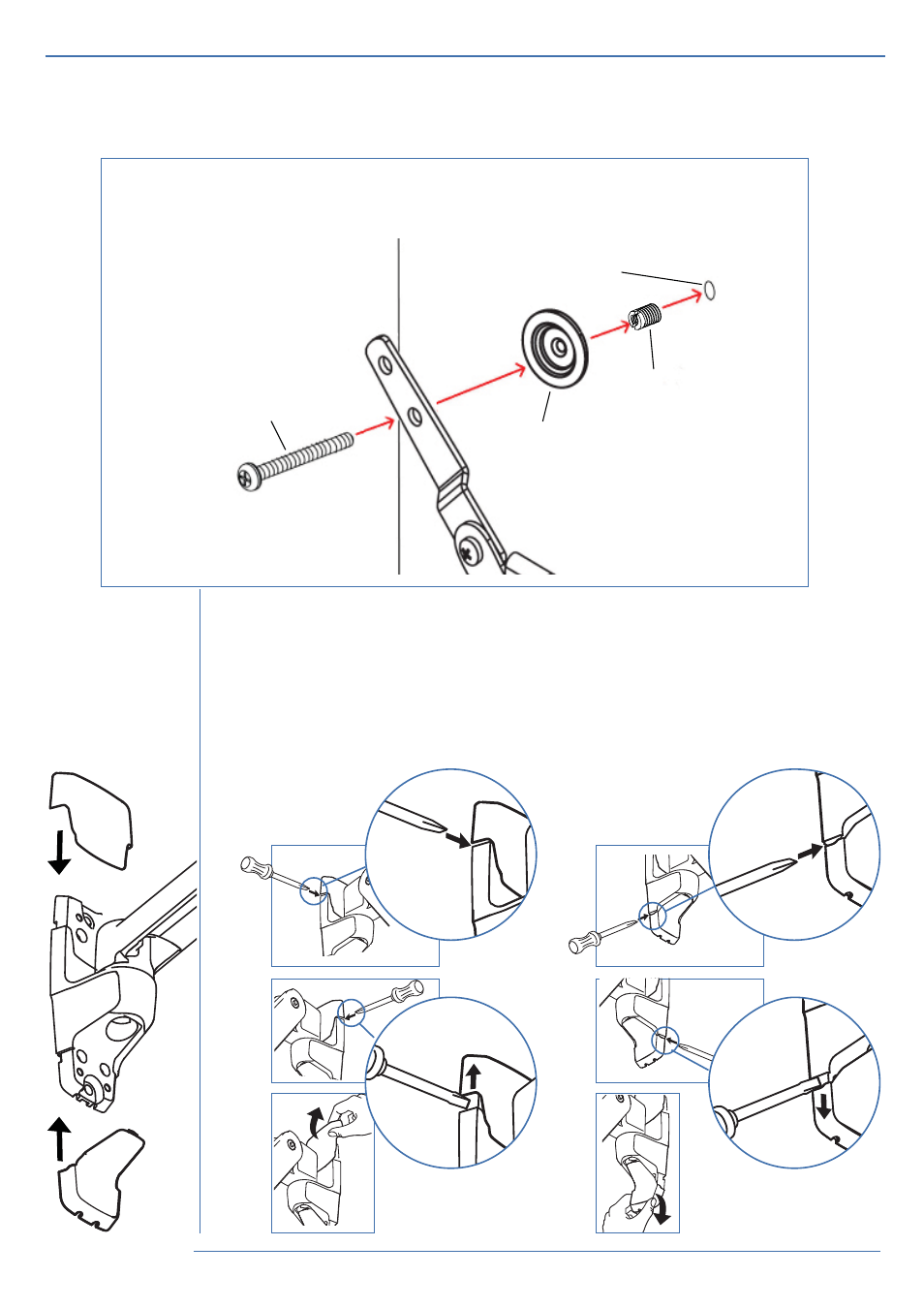

M8M5 KIT Instructions
NOTE: follow this step only if your TV/monitor has M8 holes which need
to be reduced to M5 or for Samsung models using the holder ring.
Install M8M5 reducer bushing to TV/Monitor and use M5 x 20 mm
monitor screws to secure when using the Samsung holder ring.
M5x20mm
Monitor Screw
M8M5 Reducer
Bushing
TV / Monitor Mounting
M8 size hole
Holder Ring
(Not Included * Samsung Only)
Attach
top and
bottom
bracket
covers
8
a a
b b
c c
Top Cover Bottom Cover
To remove covers:
a) Wedge the blade of a fl at screwdriver into the gap between the wall mount bracket and the
cover. Rotate the blade upward to pry the cover away.
b) Repeat on the opposite side of the wall mount bracket.
c) Once the cover is free on both sides, lift it off .
