14 of 19

888-45-282-W-01 rev.C • 11/12

OR

OR

100mm (3-15/16”)

200mm (7-7/8”)

200mm (7-7/8”)

200mm (7-7/8”)

100mm (3-15/16”)

200mm (7-7/8”)

B

C

D

M4x12

M5x12

M6x12

M4x12 M5x12 M6x12

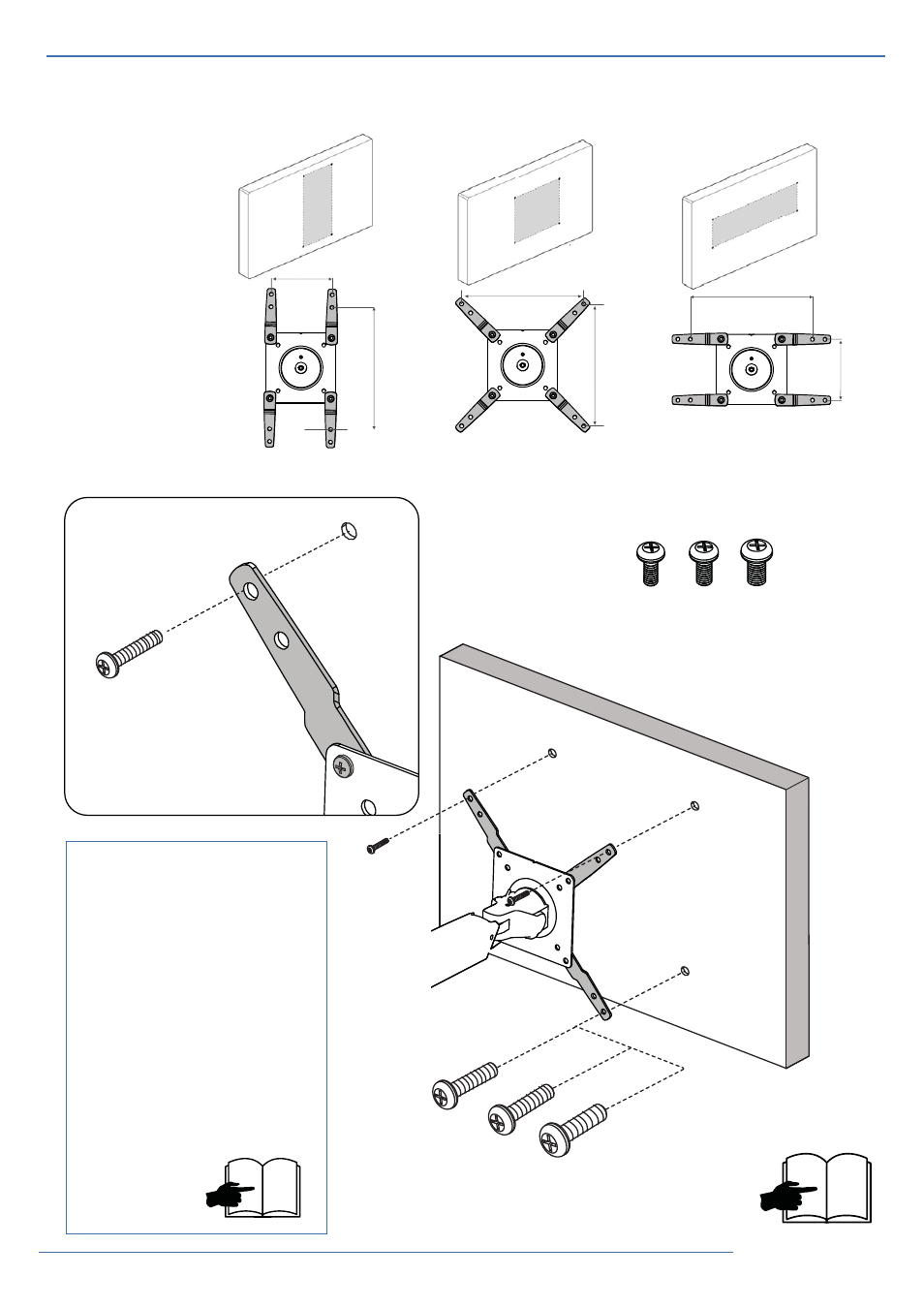

Mount Type B, C, or D TV/Monitor to Arm

7

8

16

NOTE: To reduce
M8 holes for use
with M5 screws, or
if you have a model
with Samsung
holder rings, follow
the M8M5 KIT
instructions on the
next page.

16
