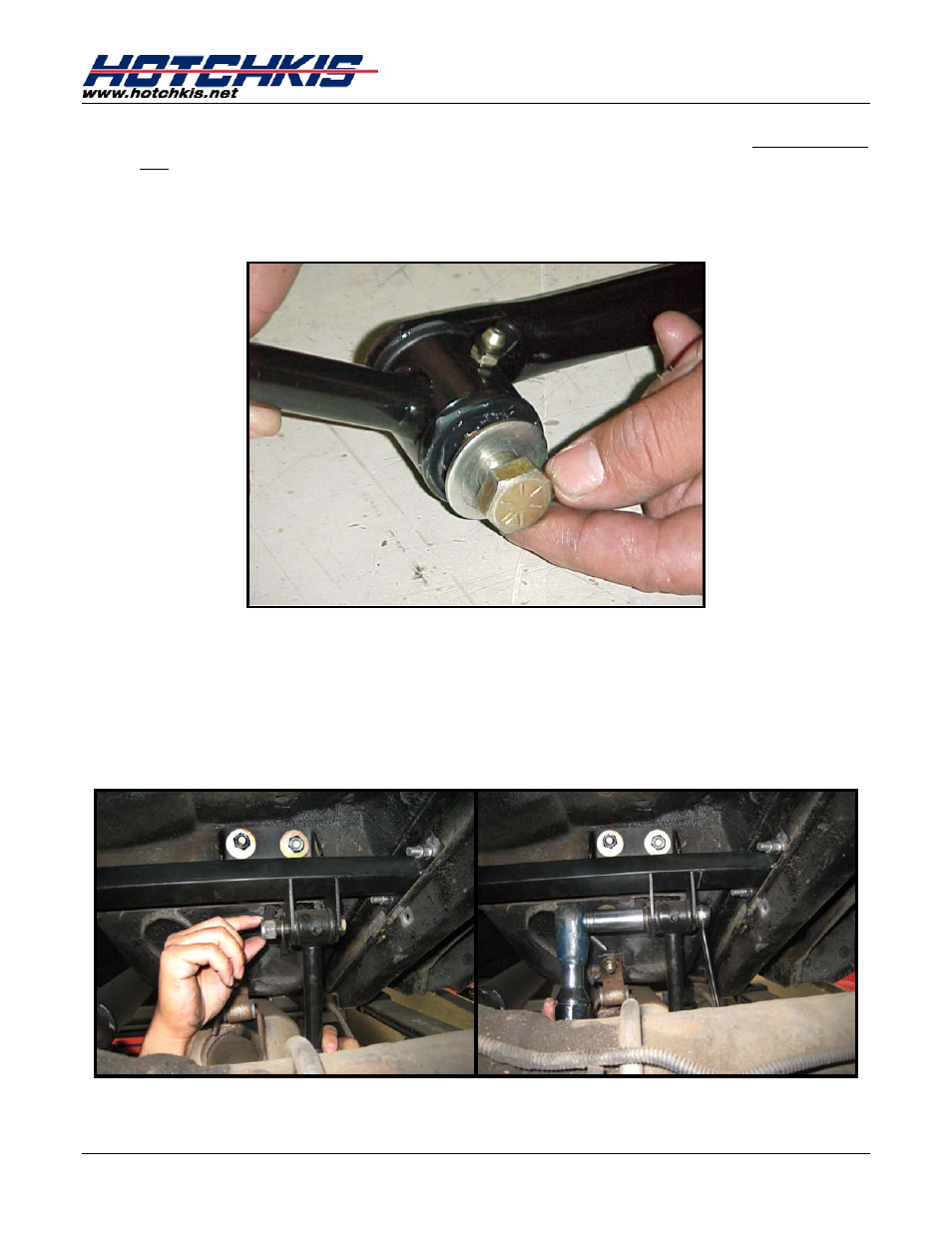

16R. Using the T1712 Hardware kit, take the longer (3”) bolts and attach the dog bone end

link

to the bar on the INSIDE of the bar. There are two different washer types included

in the bolt kit, use the large diameter washer up against the dog bone, and the small

one against the sway bar. Tighten the bolt to the point where you can just rotate the

end link on the bolt.

17R. Slide the other end of the dog bone style end link up in between the brackets on the

chassis brace. Check for exhaust clearance in this area. If necessary, you may have to

have the exhaust pipes re-bent to provide clearance for the new sway bar assembly.

Any competent exhaust shop can handle this modification easily. If clear, use the

shorter (2.75”) bolt with a small washer on each side of the bracket to complete the

assembly and fully tighten.
