Hotchkis 2278 2004-2006 GTO Sport Sway Bars User Manual
Page 14
12) Reinsert the Hotchkis sway bar is the same manner as the stock bar came out.
13) Repeat steps 2-6 in reverse order to complete the installation.
Special tip: When raising the differential back up to the body, try using a pry bar to align the mounting plate
holes with the body holes. You want to be able to start each bolt by hand first.

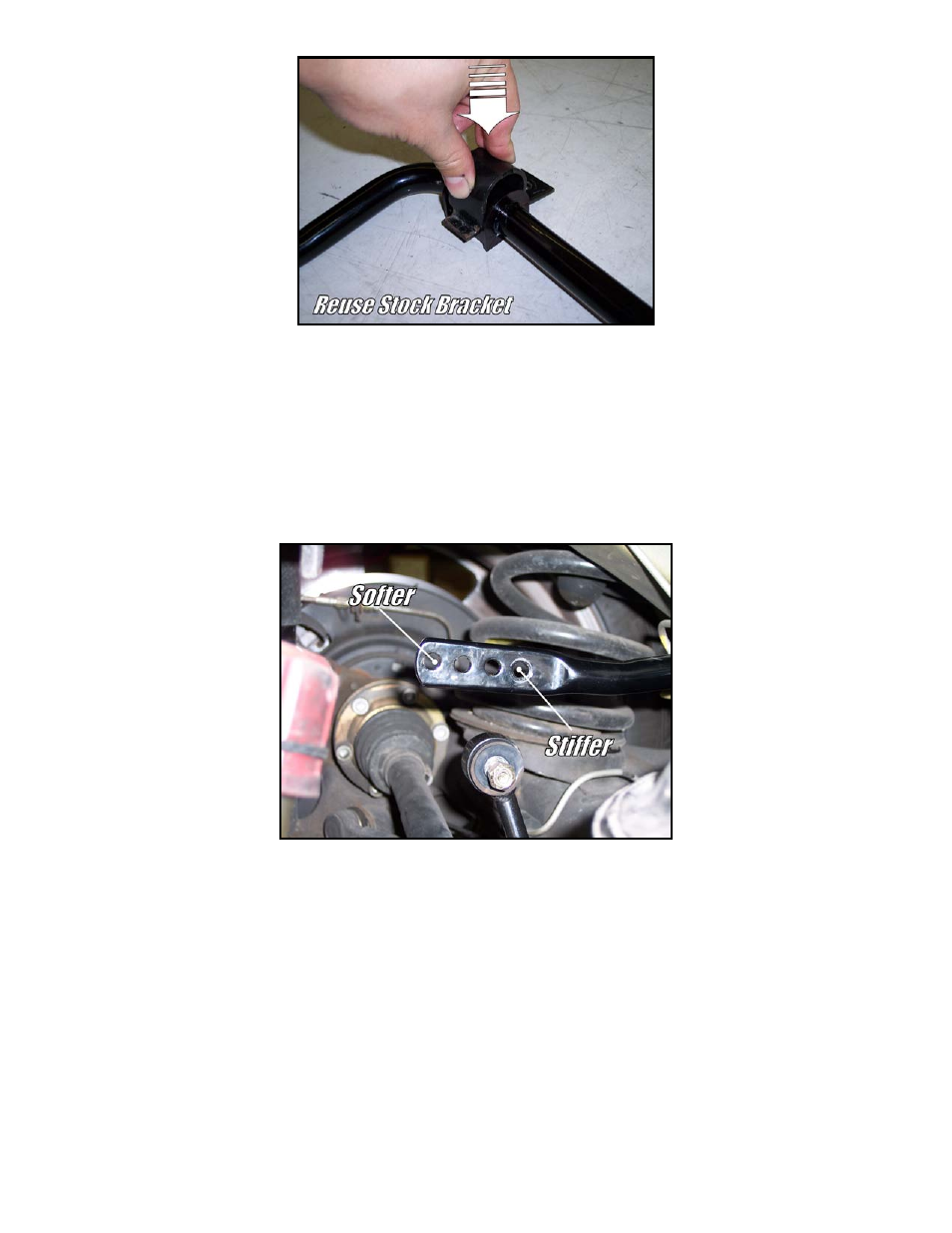

17) When reattaching the endlinks onto the sway bar, you will notice 4 holes at the end of the bar. Your
Hotchkis swaybar is 4-way adjustable for stiffness. See the following diagram for details.
18) You are now finished with the Hotchkis rear sway bar installation! Make sure that all hardware is fully
tightened before driving the vehicle.
