Front bar instructions, Installation of new hotchkis bar
2228,2229,30,31,32
Silverado/Sierra Installation Instructions
1/12/2011
2228, 2229, 2230, 2231 & 2232 Sway Bar Installation Instructions.
99+ Chevrolet Silverado/GMC Seirra Pickups
FRONT BAR INSTRUCTIONS
*NOTICE HOW THE STOCK SWAY BAR LOOKS
i.e. BRACKET PLACEMENT, BENDS, etc.
FRONT SWAY BAR REMOVAL
1. Remove skid plate if present
2. Remove end links from each side of the vehicle.
3. Support the stock sway bar and remove the brackets that attach the bar to the frame.
4. Remove the bar.
Installation of New Hotchkis Bar
1. Spread a light coat of supplied grease onto the frame mount bushings I.D. and install
on the bar with the slit side of the bushing facing to the front. Install the brackets over
the bushings.
2. Attach the front sway bar brackets and bar. Torque to 20ft. lbs.
3. Install the supplied end links. Torque to 13ft. lbs.

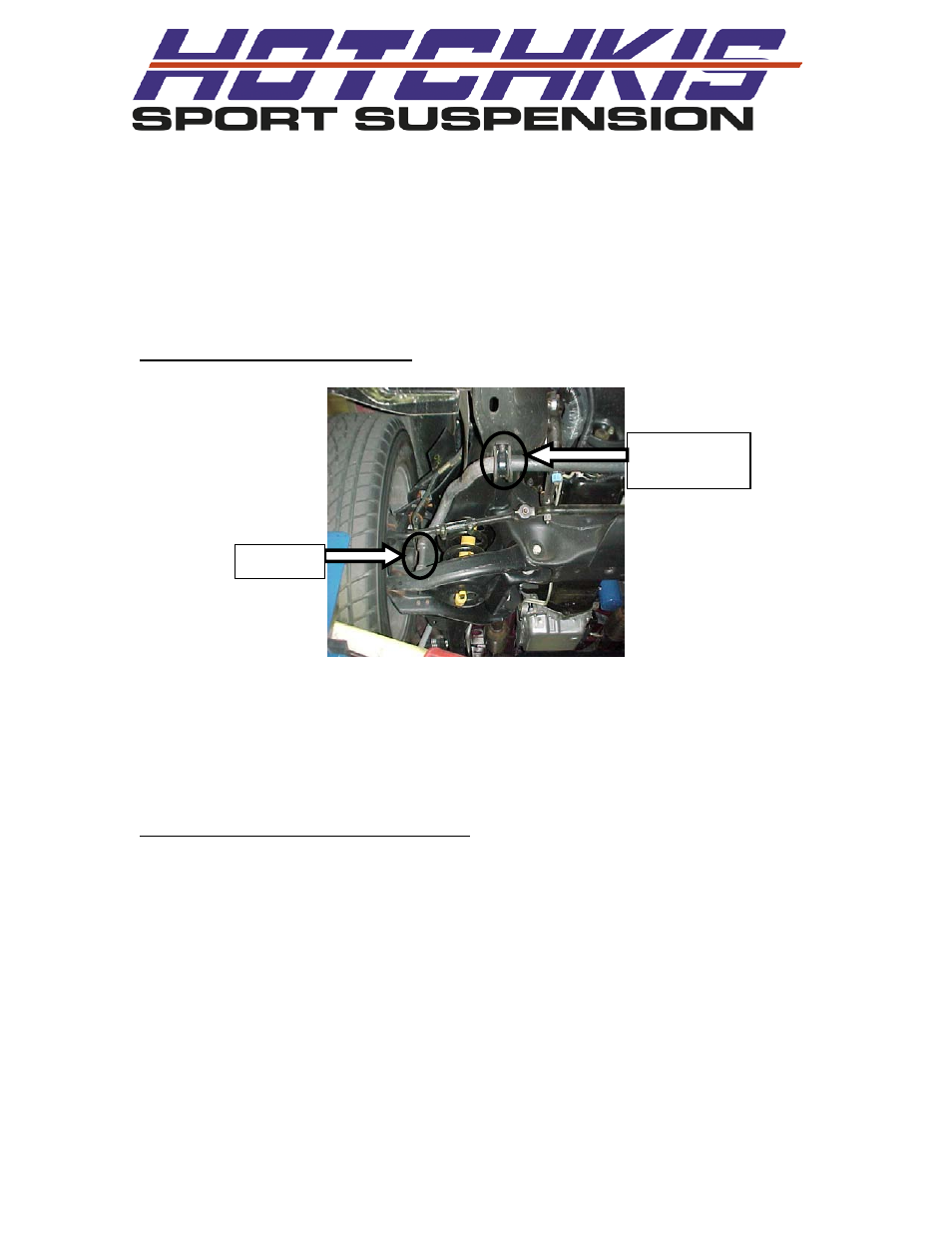

FRAME MOUNT
BUSHING AND
BRACKET
ENDLINK
