Front sway bar installation – Hotchkis 22827 Audi RS6 Sport Sway Bar Set User Manual
Page 7
Front Sway Bar Installation
1/
Drive the vehicle onto a 4-post lift or floor ramps. T
HE CAR NEEDS TO BE AT NORMAL RIDE HEIGHT
FOR PROPER INSTALLATION
.
You cannot have the suspension hanging while installing this bar!
2/
Once vehicle is raised, use a standard screwdriver and remove the aero-pan fasteners. Then
remove the pan entirely exposing the anti-roll bar.
3/

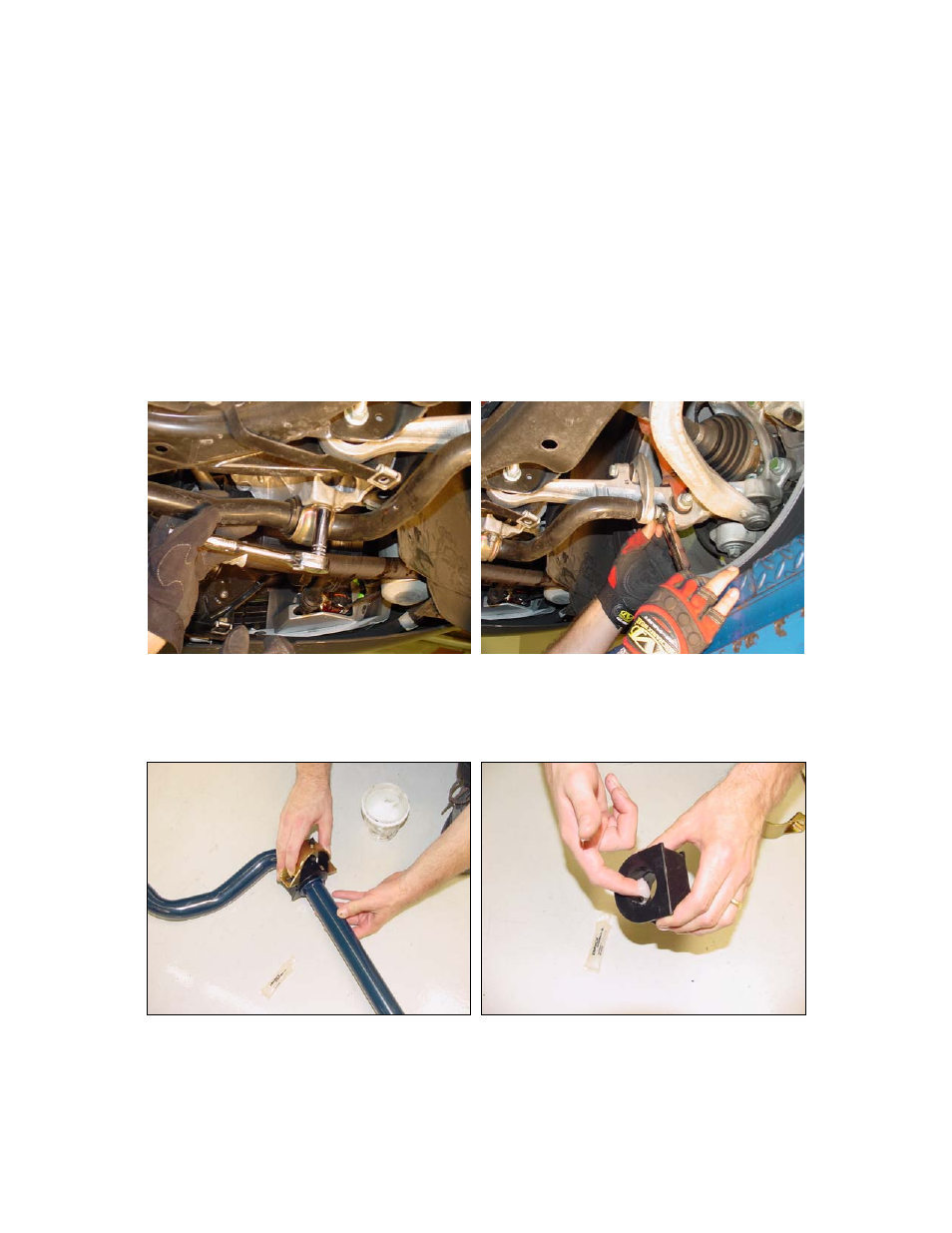

Take a moment and observe the stock front bar and the way in
which it is mounted.
4/
Remove the lower end link bolts and nuts (16mm wrench) to the bar and save only the bolts for
re-installation. Remove the four bushing bracket nuts and save. (13mm wrench) Remove the stock
bar.
5/
Apply a quarter tube of grease to each inner-channeled portion of
the two new front bushings and attach to Hotchkis bar against the outside of the washers on the bar.
Slip the new brackets over the bushings.
