Hotchkis 12425 Scion TC Sport Rear Camber Links User Manual
Page 3
4)
Compare the stock upper arm with your new Hotchkis camber link. As a good starting point, set the
Hotchkis camber link to the same length from bolt hole to bolt hole. An easy way to do this is by
inserting the control arm bolts through stock arm as well as the Hotchkis arm. Adjust the turnbuckle
until both bolts go through the control arms. Leave the jam nuts loose for now, for you will be tightening
them up later.
5)

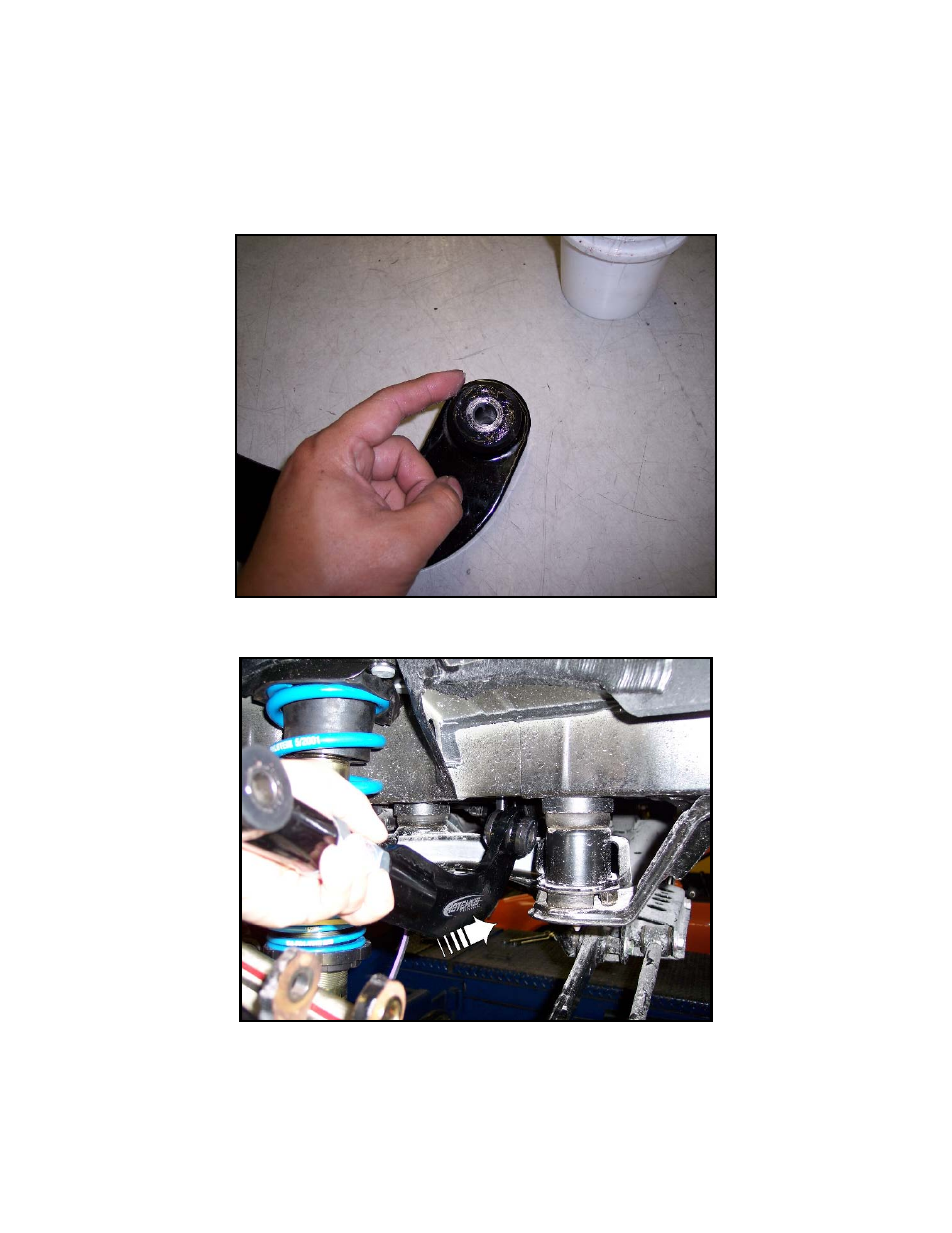

Lube the polyurethane bushing surface with the provided grease.
6)
Install you Hotchkis camber link in the same manner as the stock removal.
7)
When installing the inner alignment bolt & nut, please leave them snug but not tight. You will be
adjusting the camber link clearance with this alignment bolt. See Step 9.
8)
Fully tighten the outer end of your Hotchkis camber link using the same stock nut and bolt.
