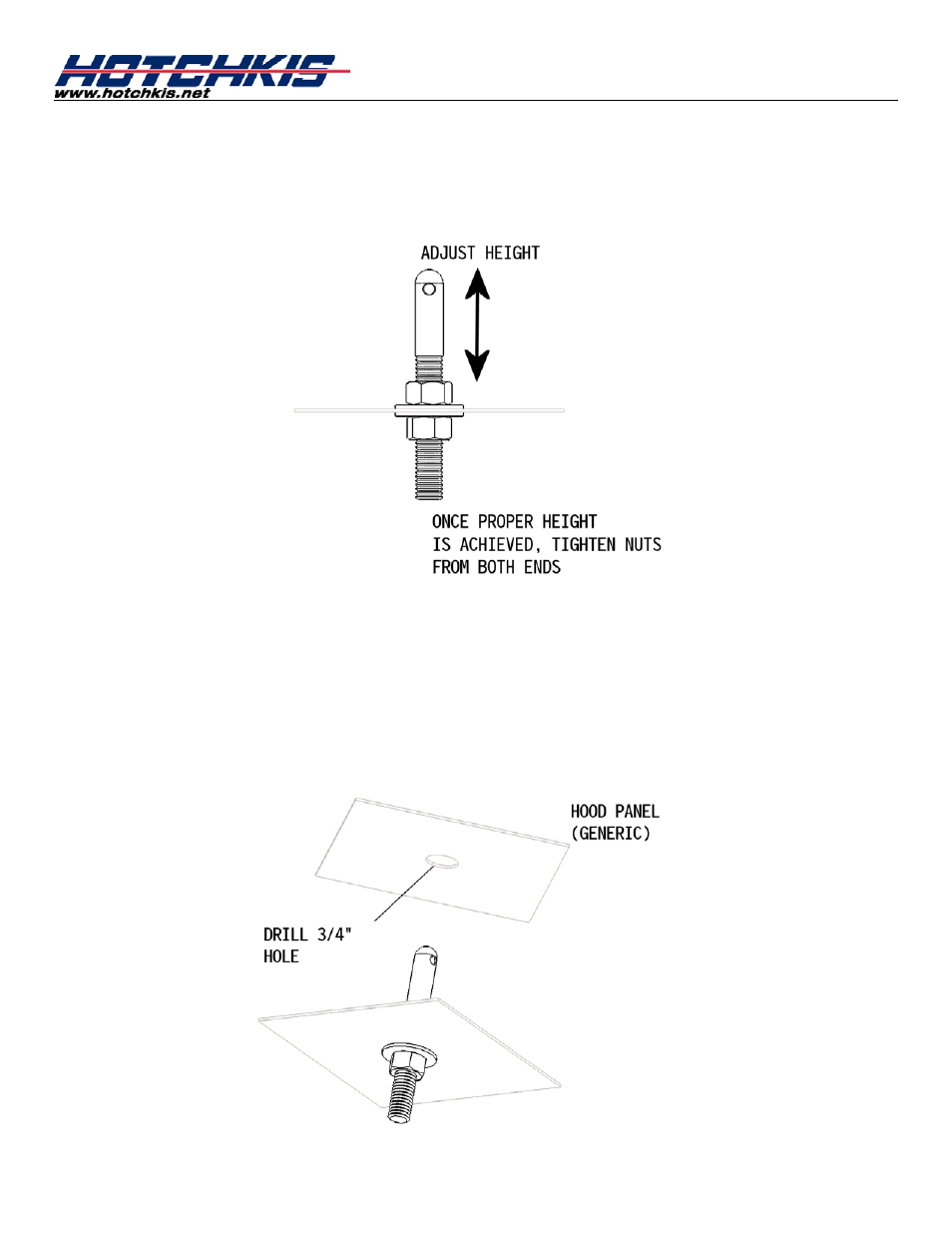

Drill a ½” - 5/8” hole in the mounting surface. Insert and assemble the pin and hardware as
shown in the diagram. The pin height can be adjusted to accommodate different applications.
2) Make a hole in the Hood
We now need to make a hole in the hood for the pin to protrude through. There are several ways of
determining where the needs to be using the already mounted hood pin. One suggestion is to apply
grease on the tip of the hood pin and close the hood slowly until the pin top touches the hood surface.
The grease left on the hood is where you will need to drill your hole. Use a ¾” drill bit. Slowly close
the hood to confirm that the hood pin is centered with your hole.
