Hotchkis 80110 1966-1969 Mopar B-Body TVS System User Manual
Page 34
4)

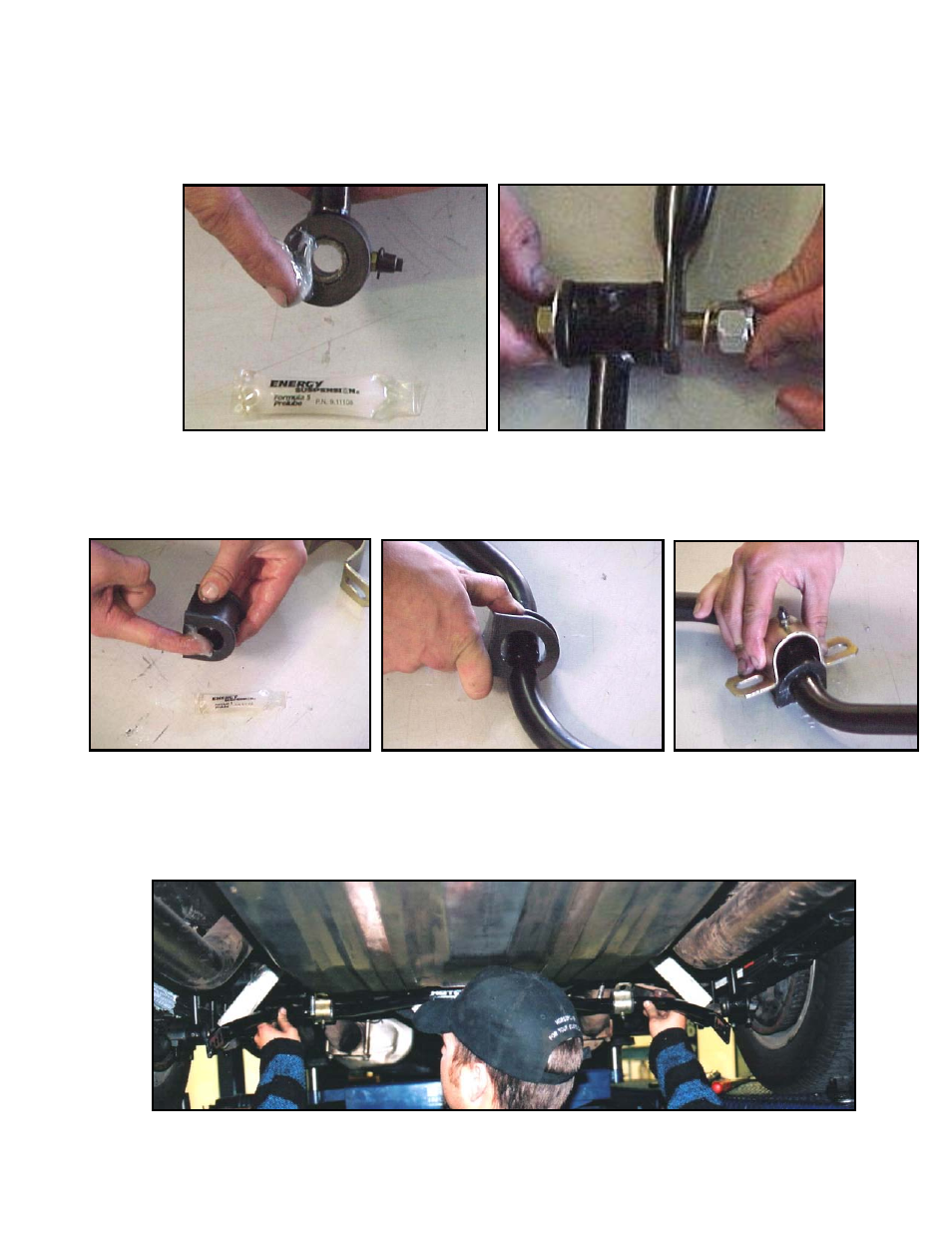

Use the grease pack provided with the kit to apply a thick coat of grease to the sides of
the dog bone end link bushings. Attach the end links to the sway bar on the outside of the
sway bar ends. Install the hardware with the bolt head towards the outside of the frame. The
larger washer should be against the bushing and the smaller washer will be to the inside
against the sway bar. See the picture below for assembly.
5)
Use the grease pack to also apply a thick coat of grease to the insides of the sway bar
bushings. Place the bushings over the bar with the split of the bushing facing towards the rear.
Install the bushing retainer brackets over the bushings.
6)
Attach the triangle brackets to the stud plates on the frame. Tighten the attaching
hardware, as this is easier to do before installing the sway bar. With the brackets attached to
the frame the bar can be lifted into place. Connect the end links to the brackets. The sway bar
should be hanging loosely from the brackets at this point.
