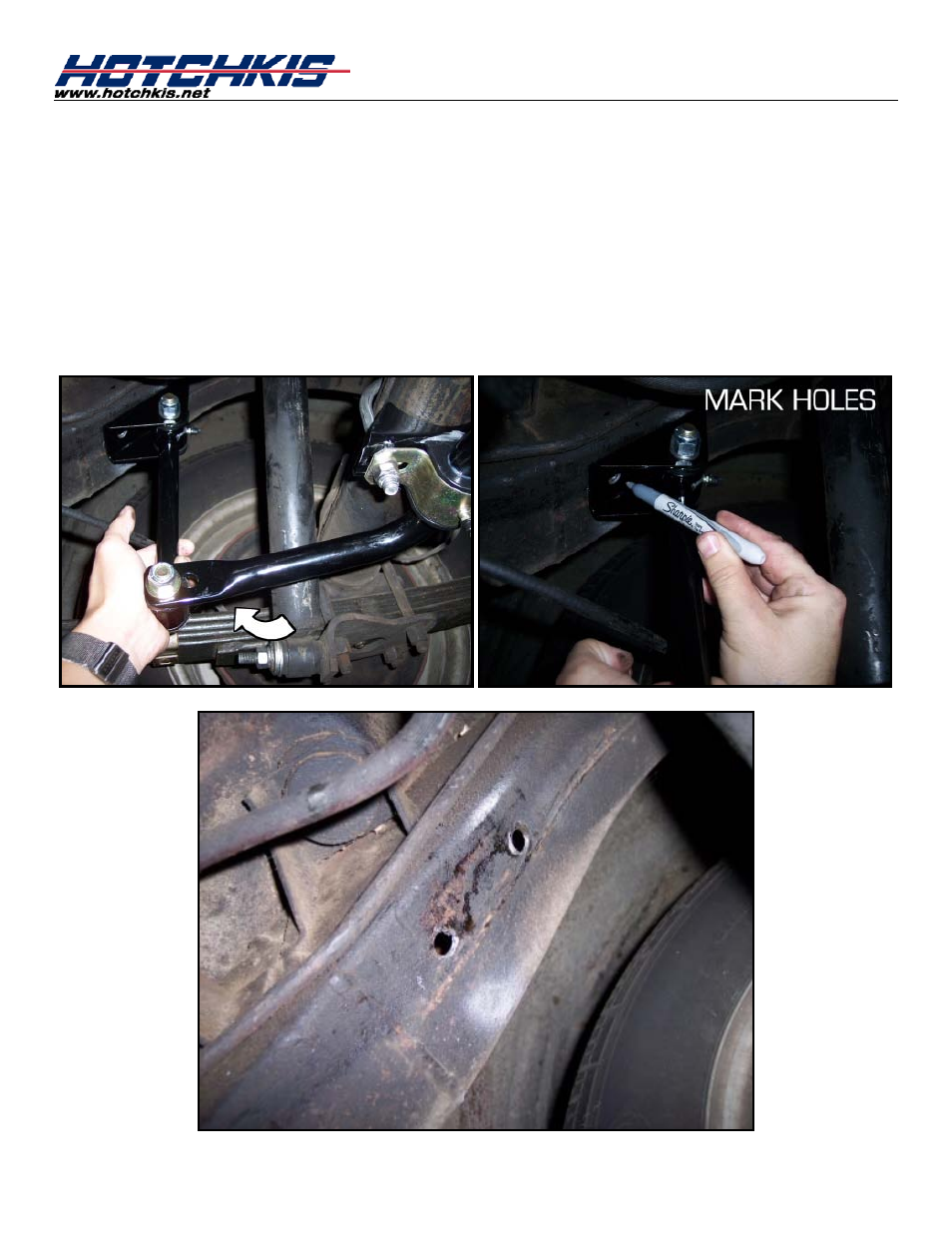

Drill Holes for the Frame Brackets
You’re going to be drilling 2 holes for the frame brackets on each side. But first we need to
know where to drill the holes. Rotate the sway bar up to it’s normal position. Make sure the
sway bar is centered with the car. Next, position the end link so that it is slightly tilting
towards the back of the car. The reason for tilting it back is so you can use either sway bar
hole and the end link can stay fairly vertical in both positions. Make sure the frame bracket
has it’s flat side facing the frame. Mark the hole centers with a silver pen. Push the end links
out of the way and drill out the 2 holes with a 7/16” bit. Remember to always wear safety
glasses when drilling.
