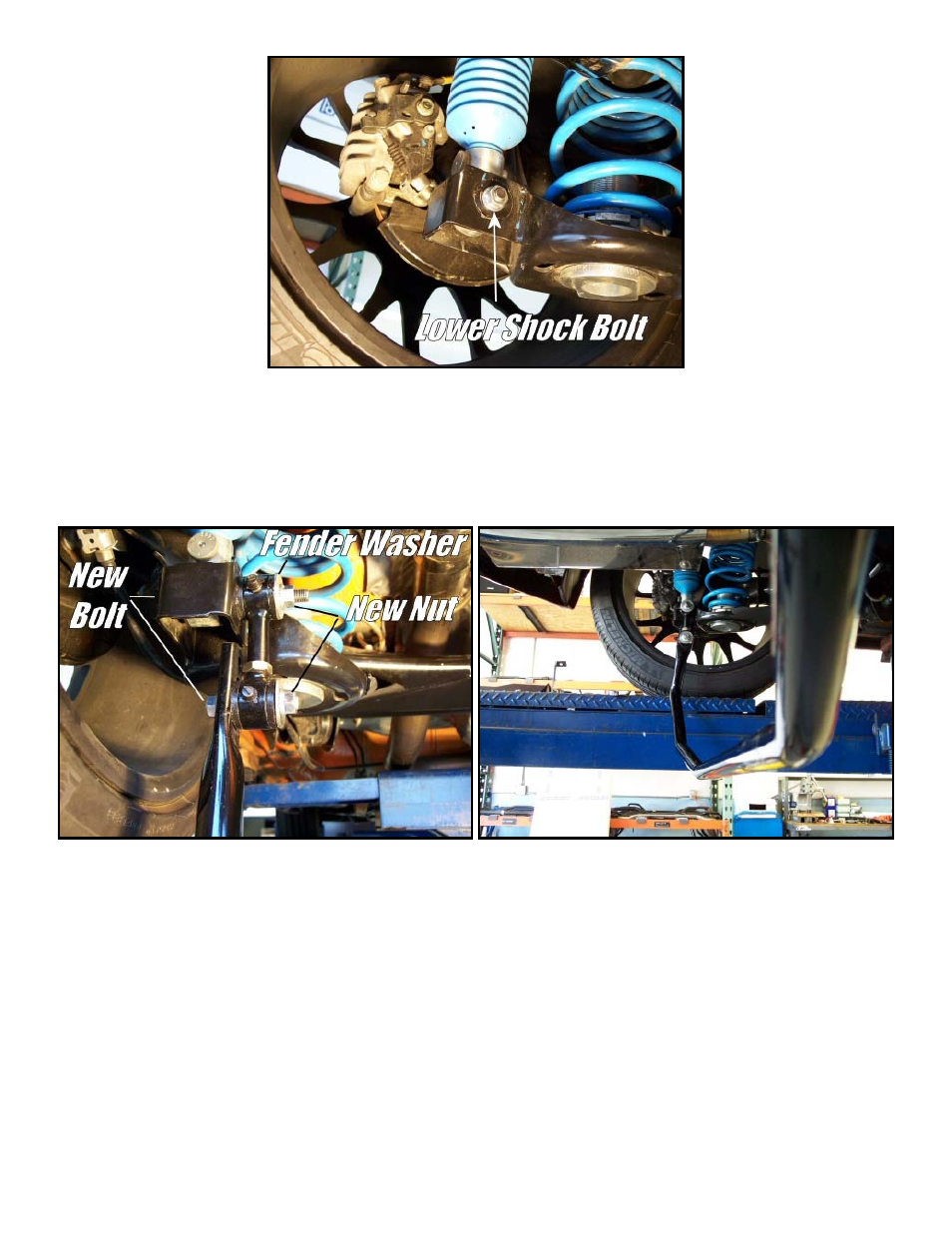

Next, insert the supplied bolt (M10 x 100mm) & washer through the lower shock hole. Grab your new
Hotchkis end link and grease both sides of the polyurethane bushings. Install the end link with the male
end on top, having the grease fittings facing towards the rear of the car. Place the fender washer on
the shock bolt before securing the nylock nut. Use the M10 x 60mm bolts to secure the sway bar to the
end link in similar fashion. Fully tighten all nuts & bolts at this time. You should still be able to rotate the
end link after tightening.
»
The stiffness adjustment holes are as follows:
→ Stiff = Hole closest to edge
→ Stiffer = Middle hole
→ Stiffest = Hole furthest from the edge
»
Before we install the bearing brackets, you may need to cut a clearance hole in the plastic panel near
where the passenger-side bearing bracket is.
