High Lifter Max Clearance Front Lower Control Arms for Polaris RZR 1000 XP - Manual (Page 3)

3

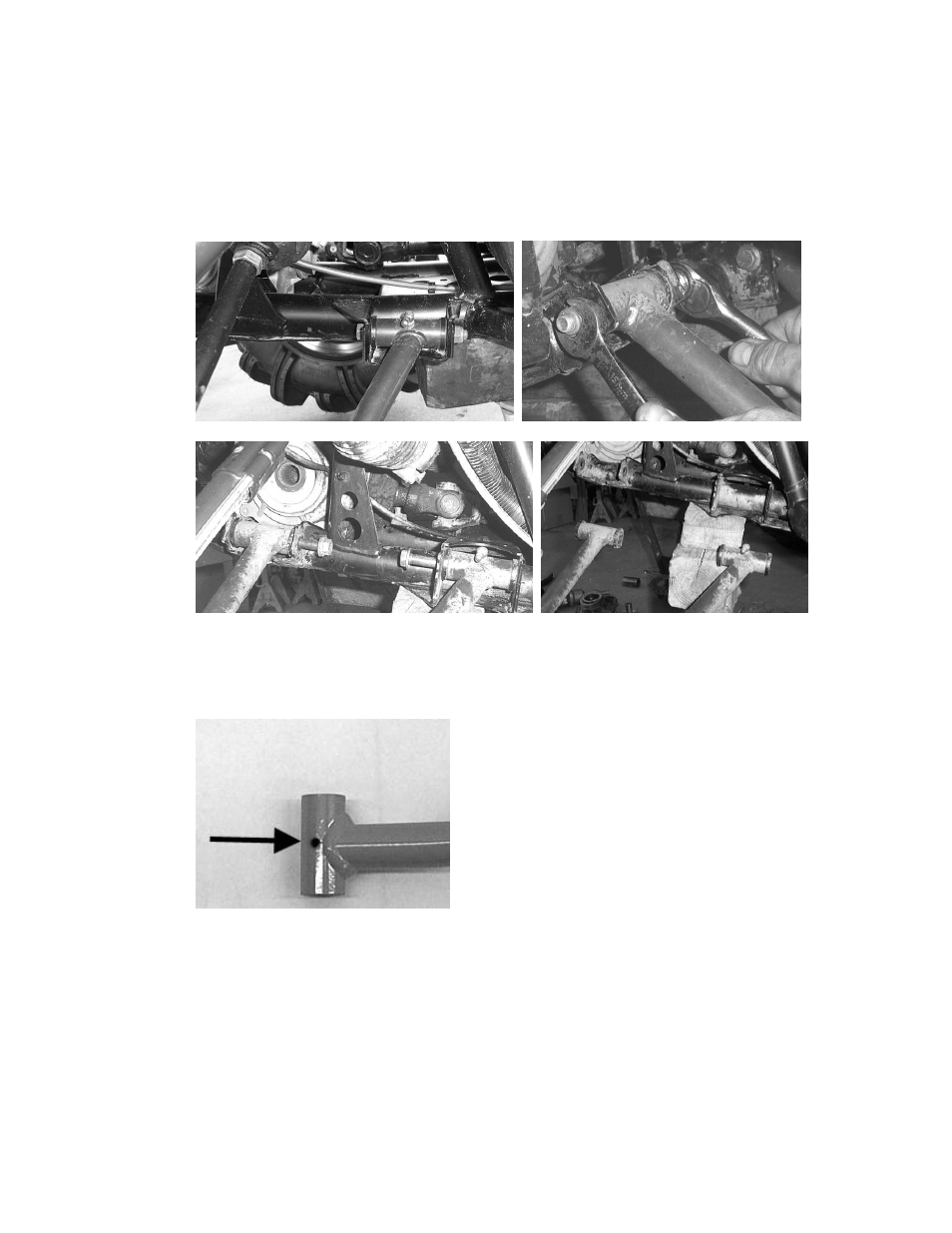

Installation Instructions:
1. Place jack under center of Ranger front end and lift until front wheels clear the
ground. Be careful to support the UTV properly so that it is securely supported
but so that A-arms and shocks can droop to full extension.
2. Remove front wheels.
3. Remove lower A-arm from the UTV.
4. Remove the bushings, sleeves, and ball joints from the stock control arms. You
will need to reuse these in the new forward a-arm kit.
5. Install the grease fittings supplied in the kit into the new arms. DO NOT OVER
TORQUE FITTINGS!
