STAGE ONE INSTRUCTIONS

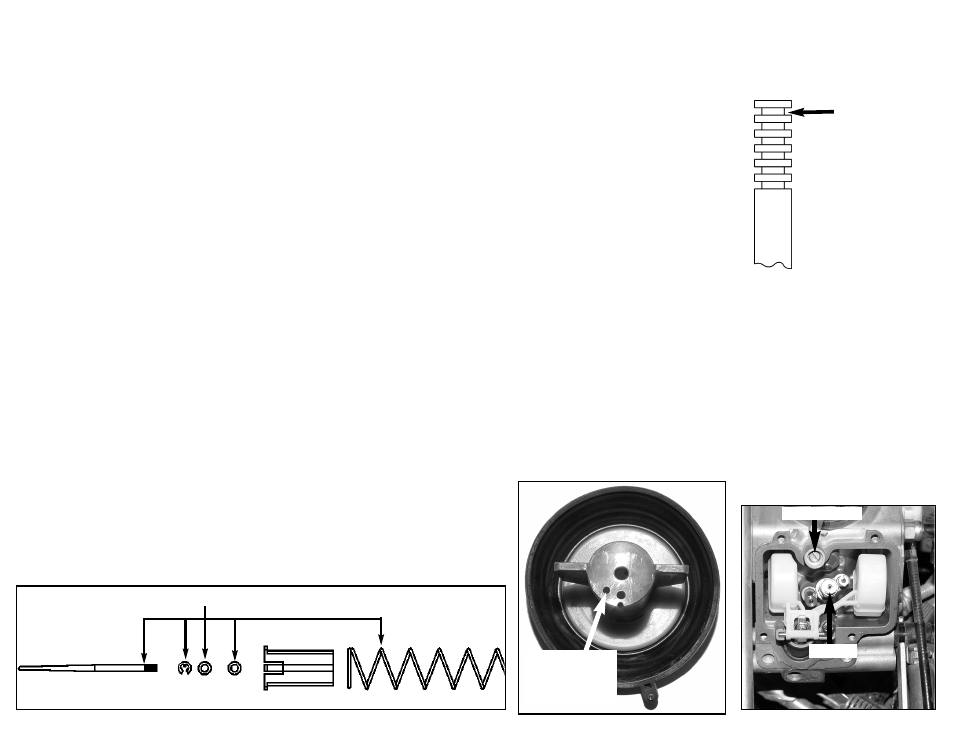

1.Remove vacuum slides from carbs. Remove stock needles & spacers, noting order of assembly (Fig.A).
2. With the drill provided DD 49, drill an auxiliary slide lift hole in the location shown in Fig.B.
3. Install Dynojet needles on groove #4 for applications below 5000 feet, groove #3 for above 5000 feet.
Install the Dynojet washers above the E-clip, 2 per needle (Fig.A).
4. Install the Dynojet slide springs DSP005, in place of the stock slide springs.
5. Remove the float bowls from the bottom of the carbs, remove the stock main jets and replace with Dynojet
main jets provided. When using the stock exhaust, install the DJ144 in the front carb and the DJ150 in the
rear carb below 3000 feet, DJ140 in the front carb and the DJ146 in the rear carb from 3000 to 6000 feet and
DJ136 in the front carb and the DJ142 in the rear carb above 6000 feet. When using an aftermarket exhaust
with a high flow baffle, use the DJ150 in the front carb and the DJ155 in the rear carb below 3000 feet,
DJ144 in the front carb and the DJ150 in the rear carb from 3000 to 6000 feet and the DJ140 in the front
carb and the DJ146 in the rear carb above 6000 feet.
6. Locate the Fuel Mixture Screws (Fig.C). Using a flat blade screwdriver, turn the mixture screws clockwise
until seated, then turn out 2 turns, 1.5 turns above 5000 feet.
Fig.A
Q217.001
This is Groove # 1
Fig.C
Mixture Screw
Dynojet Parts
Main Jet
Auxiliary
Slide Lift
Hole Location
Fig.B
