High Lifter Lift Kit for Can-Am Outlander 800 User Manual
Page 3

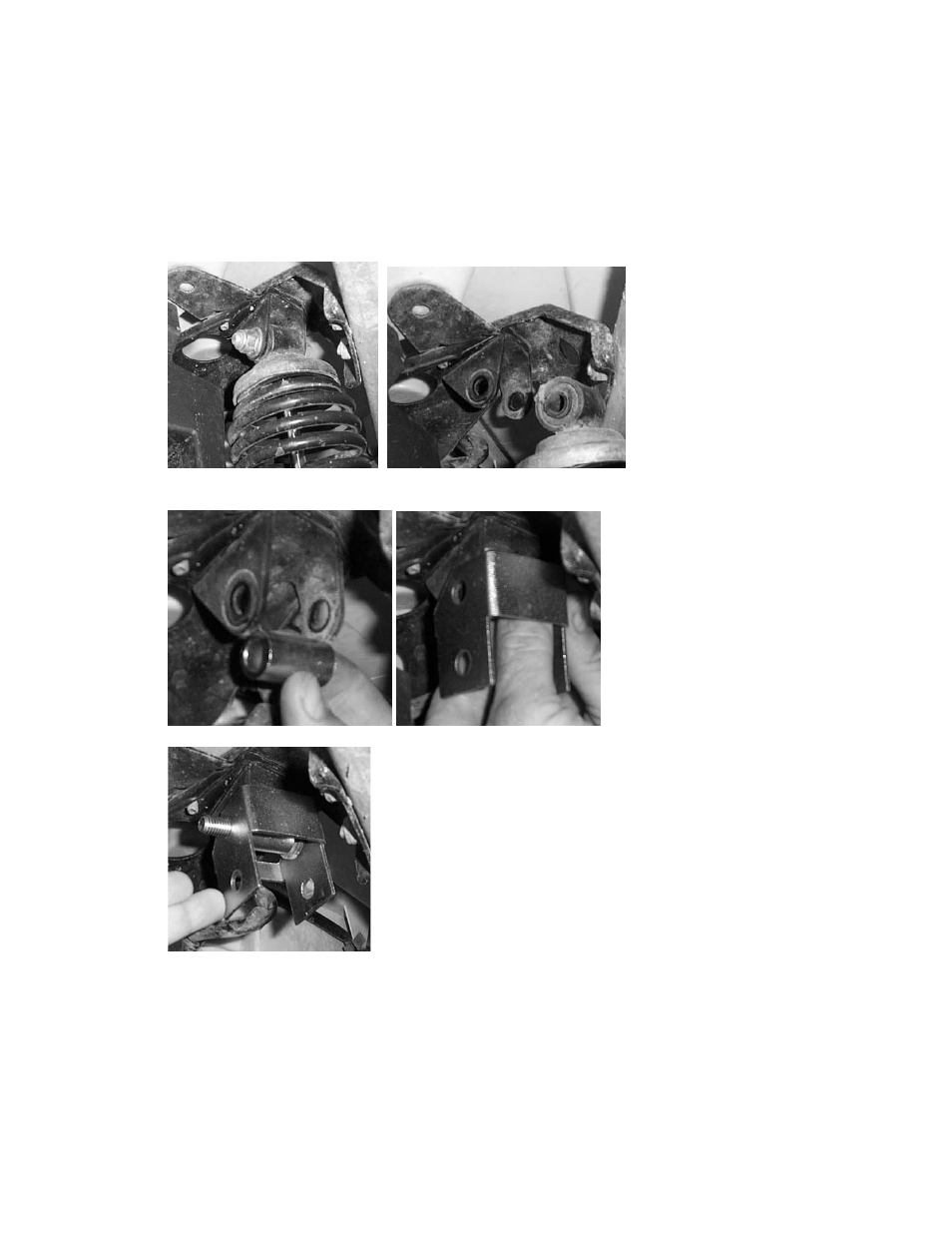

Installation Instructions:
Front Lift
1. Place jack under center of ATV front end and lift until front wheels clear the
ground. Be careful to support ATV properly so that it is securely supported but so
that A-arms and shocks can droop to full extension.
2. Remove front wheels and upper portion of shock from the A-arm.
3. Install large spacer and front lift bracket into the upper stock shock mount
location.
4. Secure the bracket and spacer using a 10x60 hex bolt and 10mm lock nut.
