High Lifter DynoJet Jet Kit for Honda Rubicon 500 (06-13) - Manual (Page 2)

STAGE ONE INSTRUCTIONS
1. Remove vacuum slide from carb. Remove stock needle & spacers, noting order of assembly(Fig.A).
2. Install Dynojet needle on groove #2 from the top for applications below 6000 feet, groove #1 for above 6000
feet, using all stock spacers. Install the Dynojet washer above the E-clip.
3. Remove stock main jet (Fig.B) and replace with Dynojet main provided. If using the stock exhaust use the
DJ150 below 3000 feet, DJ146 from 3000 to 6000 feet and DJ142 above 6000 feet. If using an aftermarket
exhaust with a high flow baffle use the DJ155 below 3000 feet, DJ150 from 3000 to 6000 feet and DJ146 above
6000 feet.Be sure that the jet you are changing is the main jet.
4. Locate the Fuel Mixture Screw (Fig.B). Using the tool (DT008) provided, turn the mixture screw clockwise until
it seats, then turn out 2.5 turns, 2 turns above 5000 feet.

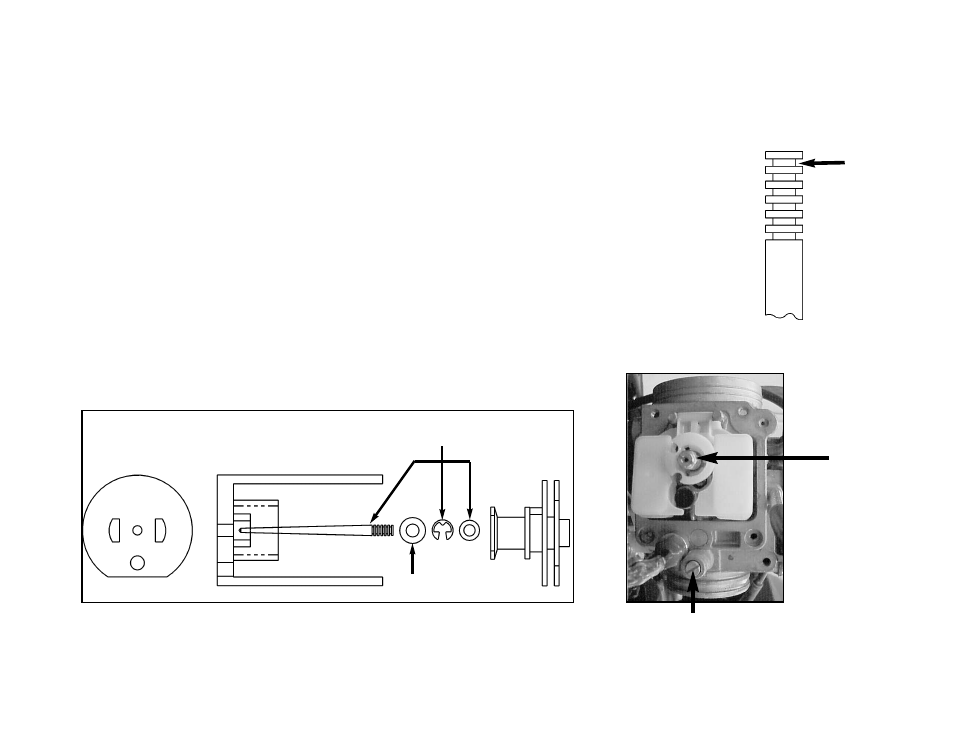

Q116.001
This is Groove # 1
Fig.B
Fuel Mixture Screw
Main Jet Location
Fig. A
Dynojet Parts
Stock Washer
