STAGE TWO INSTRUCTIONS
This is Groove #1.
Q301.001

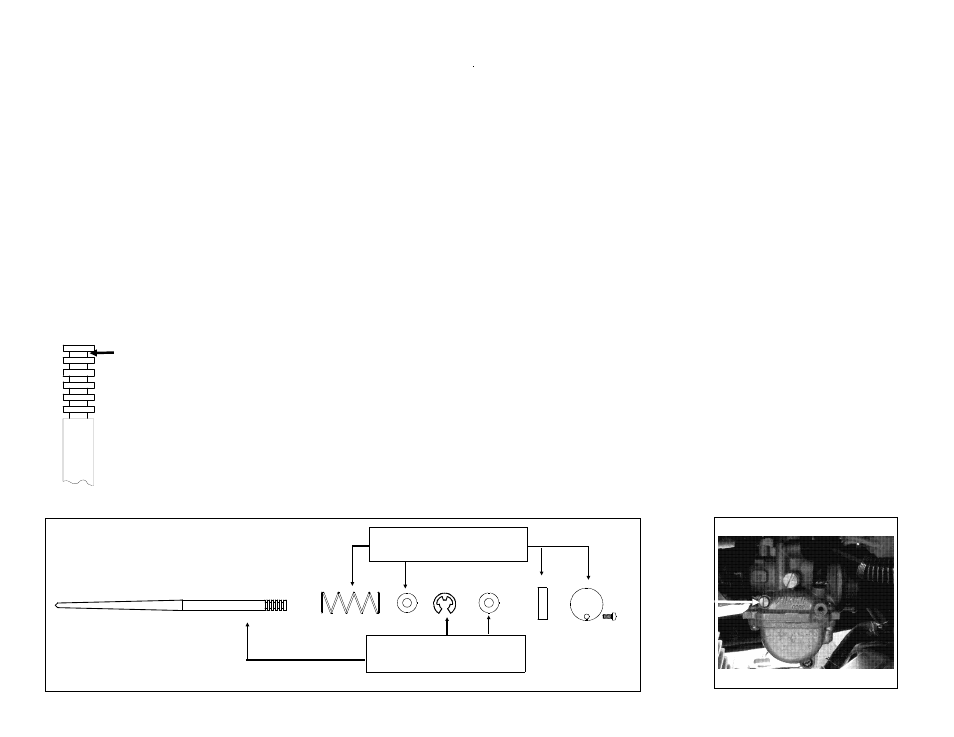

Fig. B Fig. A
STOCK PIECES
DYNOJET PIECES
1. Unscrew the carb top. Disconnect throttle cable and remove the slide. Remove needle retainer.(Fig.A).
2. Install Dynojet needle on groove# 3 for applications below 5000 feet, groove #2 for above 5000 feet, using all stock spacers. Install the Dynojet
washer above the E-clip.
3. Remove stock main jet and replace with Dynojet main provided. Use the DJ100 below 3000 feet, DJ096 from 3000 to 6000 feet and DJ092 above
6000Feet. When using an aftermarket exhaust with a high flow baffle, Use the DJ104 below 3000 feet, DJ100 from 3000 to 6000 feet and the
DJ096 above 6000 feet. Note: When using the K&N air filter you will need to use a main jet that is 4 points larger. Be sure that the jet you are
changing is the main jet.
4. Locate the Fuel Mixture Screw (Fig.B). Using a flat blade screwdriver, turn the mixture screw clockwise until it seats, then turn out 2.5 turns .
Mixture Screw
