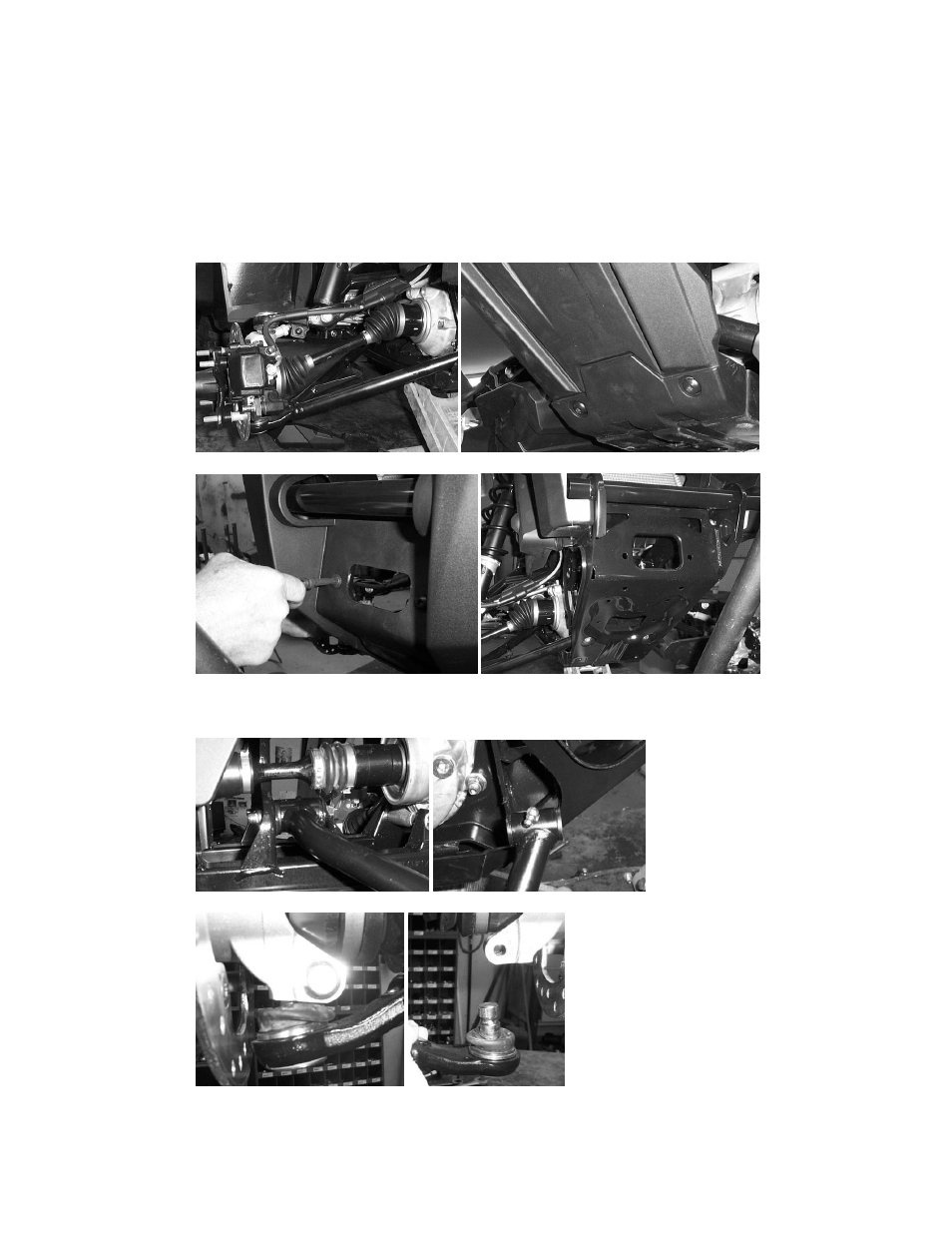

Installation Instructions:
1. Place jack under center of front end and lift until front wheels clear the ground.
Be careful to support properly so that it is securely supported but so that Control
Arms and shocks can droop to full extension.
2. Remove front wheels.
3. You must remove the front factory plastic bash plate in order to access the
hardware that will allow you to disconnect the lower arm from the frame.
4. Once you have removed the bash plate disconnect the lower control arm from the
frame and knuckle assembly.
