Front lift – High Lifter Lift Kit for Polaris 550 - Signature Series User Manual
Page 3

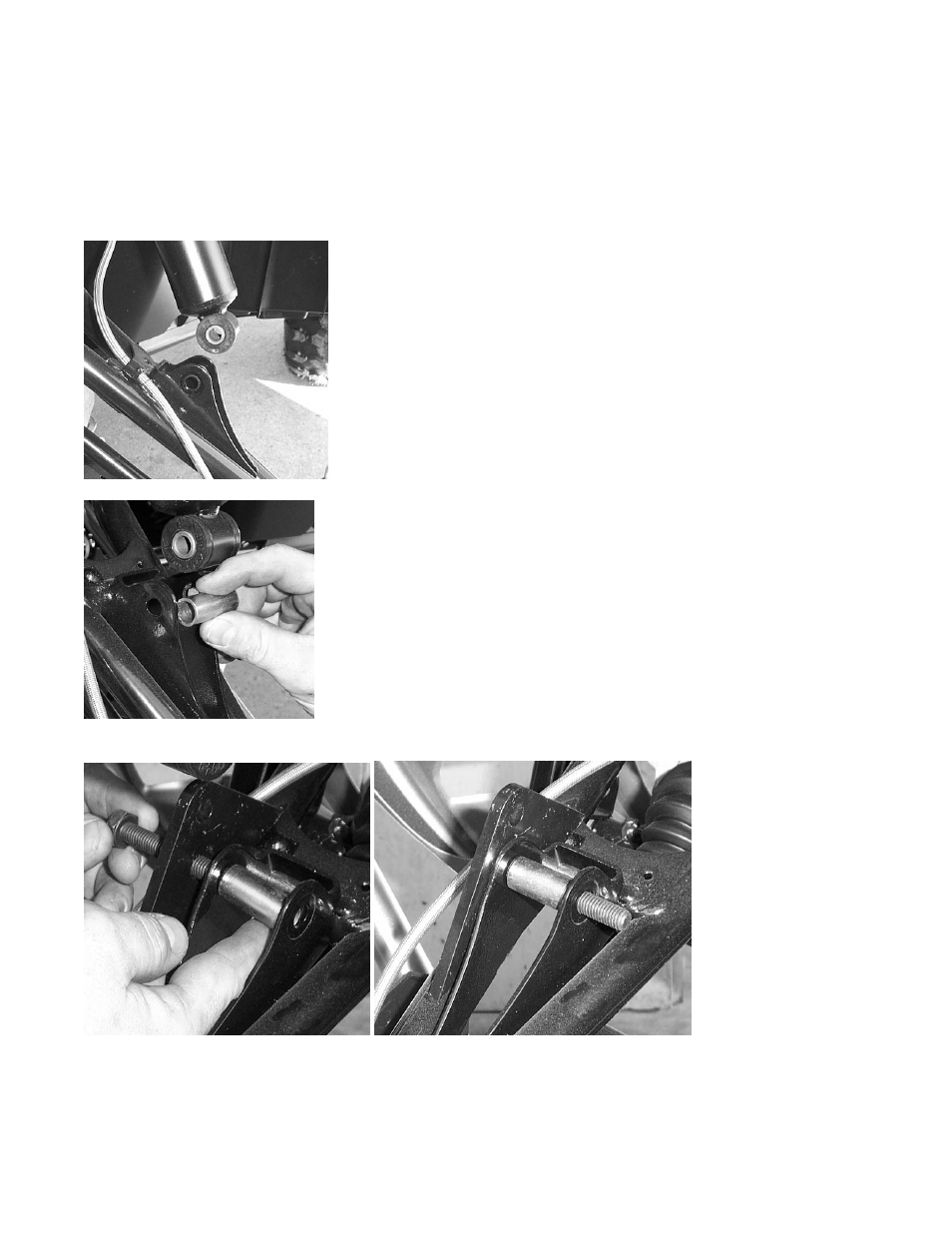

Front Lift
1) Place ATV transmission in park. Place jack under center of ATV front end and lift until front
wheels clear the ground. Be careful to support ATV properly so that it is securely supported so that
A-arms and shocks can droop to full extension.
2) Remove front wheels.
3) Remove the bottom of the front shocks from the shock mounts.
4) Insert the spacer between the shock mounting tabs on the A-arm.
5) Connect the front lift mounting bracket to the A-arm by using a 10x70 bolt. Slide the bolt thru the
bracket and spacer between the shock mount tabs.
