High Lifter DynoJet Jet Kit for Yamaha Kodiak 400 (93-98) User Manual
Page 2

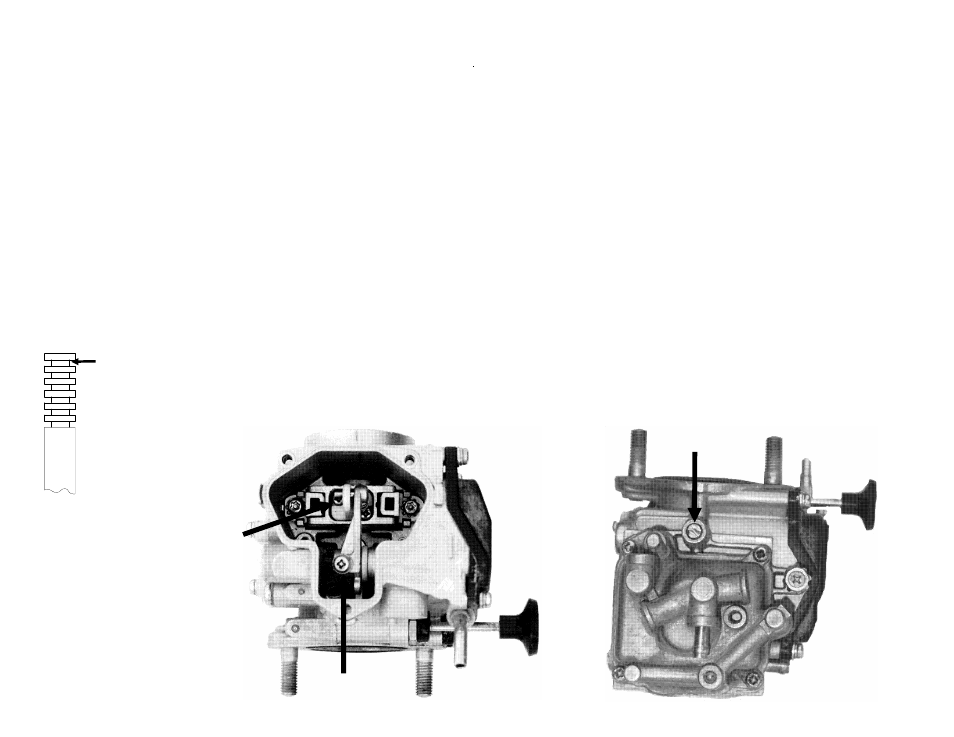

1. Remove top carb plate. Remove the slide lift arm screw and the two needle plate screws. Flip the linkage forward and remove the slide (Fig. A).
2. Install Dynojet needle on groove#3 for applications below 5000 feet, groove #2 for above 5000 feet, using all stock spacers. Install the Dynojet
washer above the E-clip.
3. Remove stock main jet and replace with Dynojet main provided. Use the DJ106 below 3000 feet, DJ102 from 3000 to 6000 feet and DJ098 above
6000Feet. Be sure that the jet you are changing is the main jet.
4. Locate the Fuel Mixture Screw (Fig. B). Using a flat blade screwdriver, turn the mixture screw clockwise until it seats, then turn out 2 turns.
STAGE ONE INSTRUCTIONS
This is Groove #1.
Q405.001
Fig.B
Fig. A
Remove slide
plate screws
Remove
screw and lift
arm
Fuel Mixture Screw
