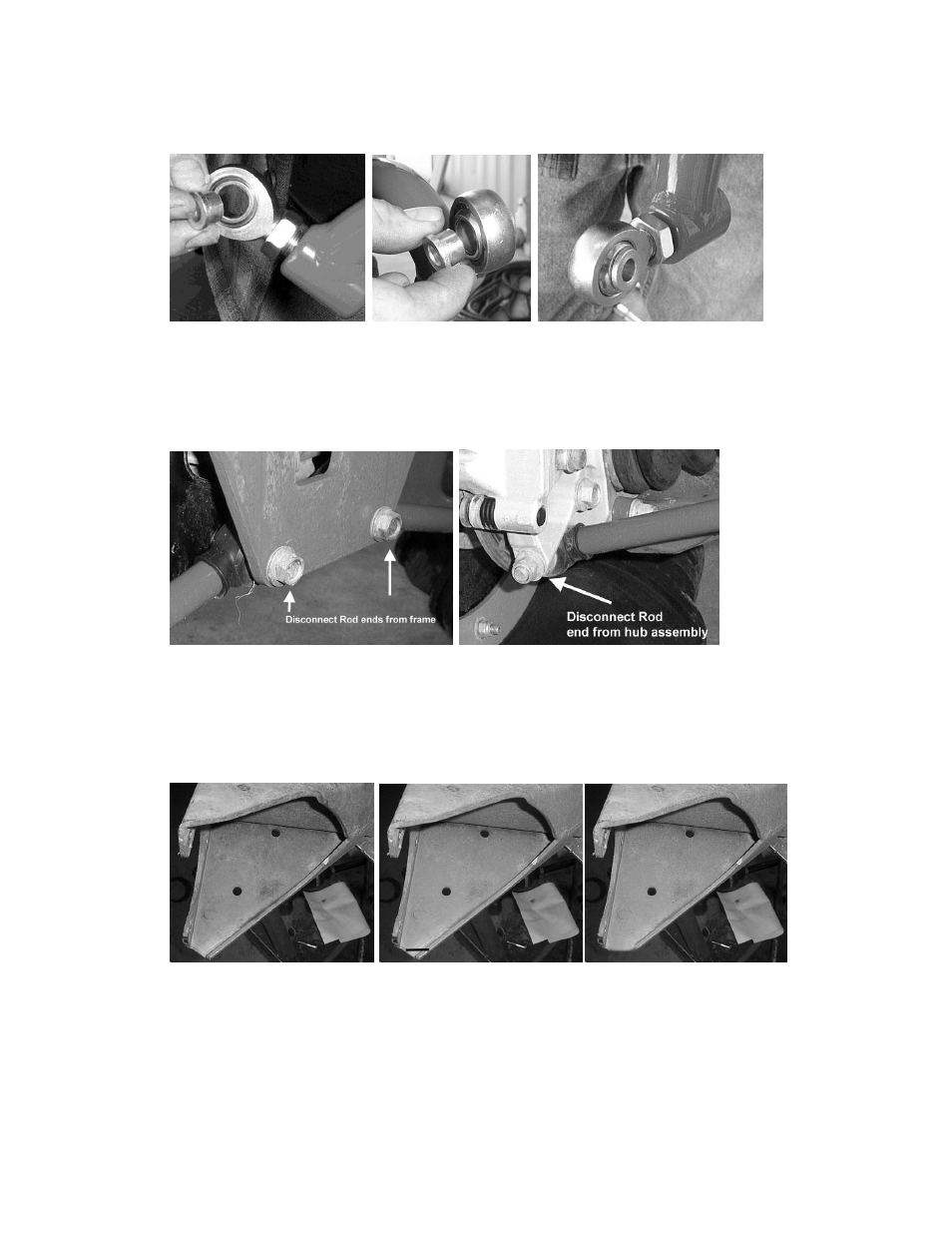

5. Insert the two heim adapters into the eyelet of the heim joint.
6. Once you have preassemble the radius bars, jack up the rear of the RZR enough so that
the rear arms drop to full extension and the tires are off the ground.
7. Disconnect the rear stock lower radius rods.
8. If you are running the stock trailing arms on your RZR 1000 you will need to trim a small
part of the trailing arm. In our photos we have disconnected the stock arms to better
illustrate where you will need to trim. If you do not trim the area your new radius bars
will rub on the stock trialing arm.
Installed Pictures
