Rear Lift Installation
1. Ensuring that the parking brake is set, place jack under the rear differential of the Mule and lift until rear
wheels clear the ground. Be careful to support Mule properly so that it is secure, and chock the front
wheels.
2. Remove the top of the rear shock only.

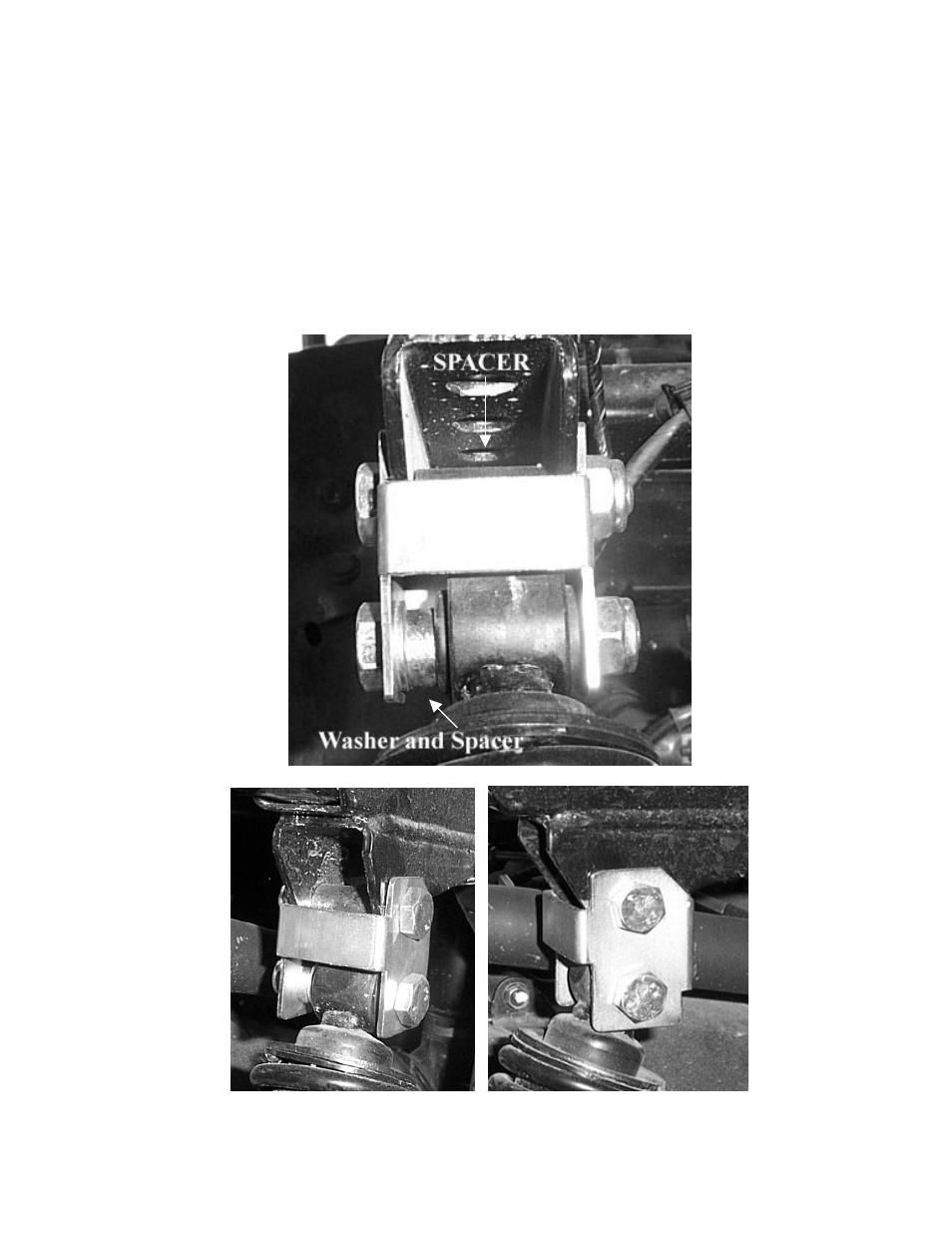

3. Place the spacer between the shock mount tabs, then place the rear tube bracket onto the shock mount
tabs.
4. Secure it by using 10x60 hex bolts and 10mm lock nuts.
5. Next, insert the top of the shock into the rear tube bracket, pushing it to one side in inserting the small
spacer and one washer next to the top of the shock.
6. Secure it using the 10x60 hex bolts and 10mm lock nuts provided.
